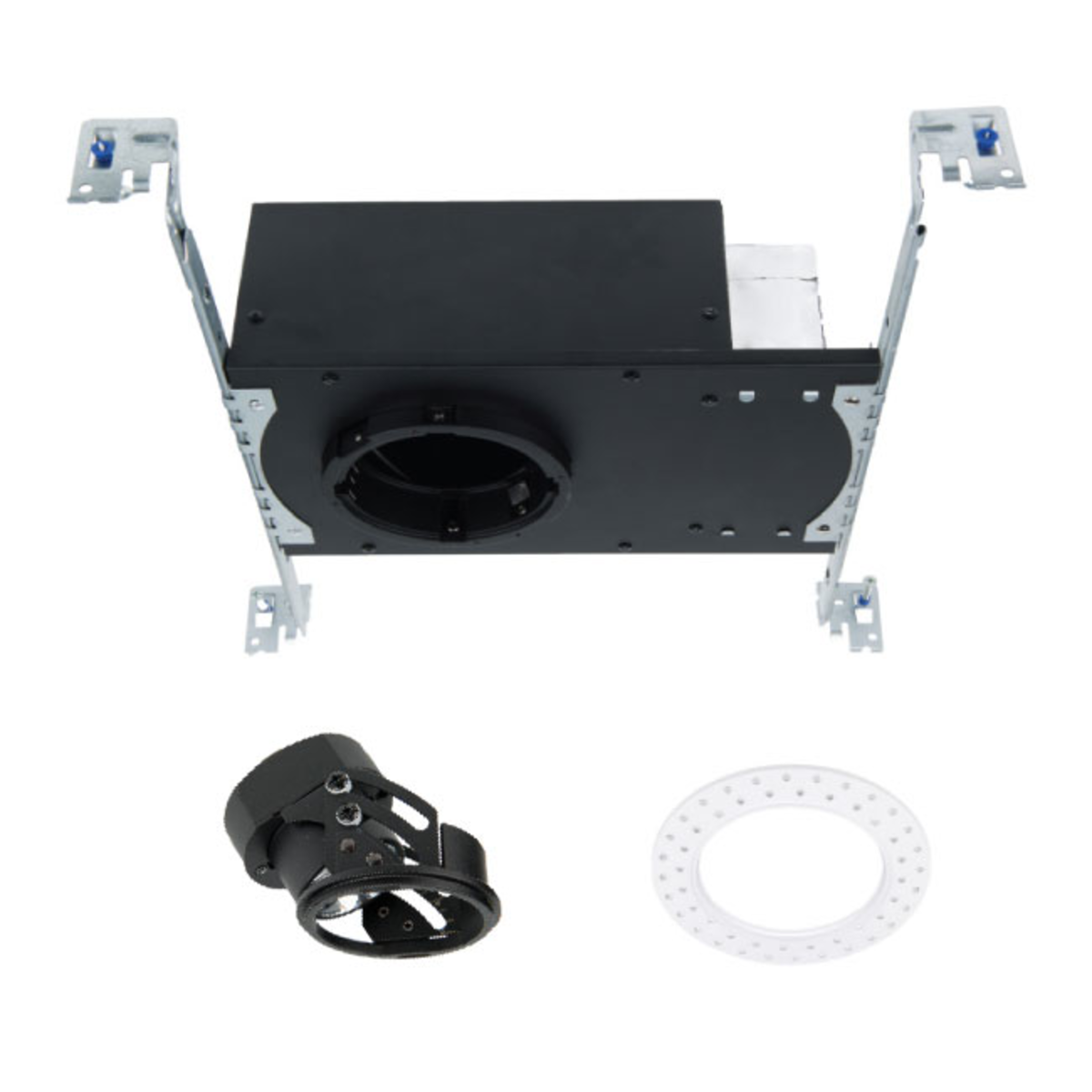

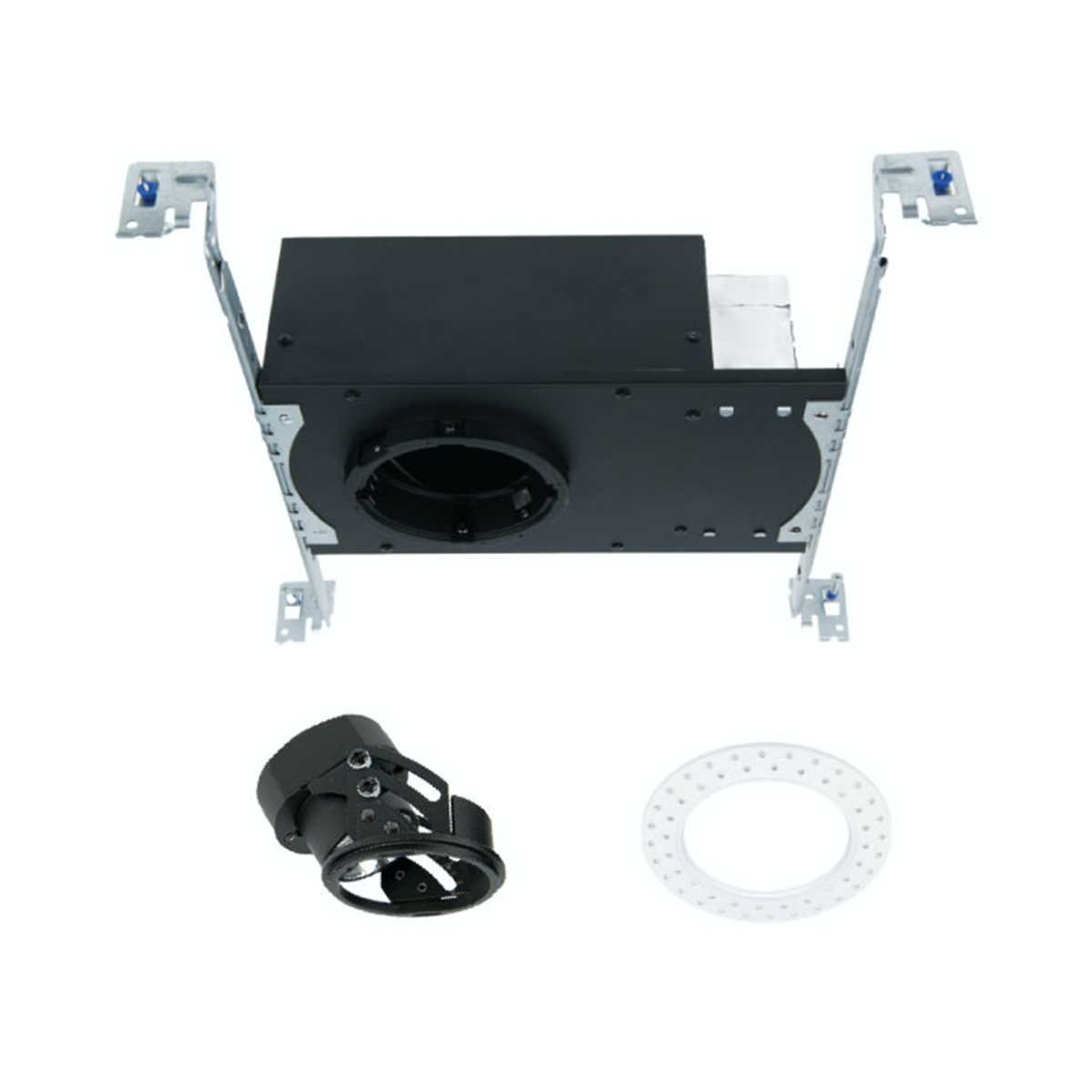

ALPINE RPS 3.5IN NEW CONSTRUCTION HOUSING ROUND

Alpine Rps offers performance features in a simple but versatile package for residential and commercial applications alike.

  • Shallow housing under 4in depth
  • Single spot light source
  • Adjustable LED light engine included with housing: Vertical Adjustment 0-30°, Horizontal Adjustment 365°
  • Trimless: Die-cast spackle frame included
  • Accepts one optional honey comb louver or optical accessory
  • Exterior trim sold separately
thumbnail-image
product-slide

Specifications

Order Number: A2RE-248M-27
model & voltage color temp
A2RE-248M - 36 VDC
27 - 2700K
30 - 3000K

Components


ALPINE & ALPINE RPS 3.5IN ADJUSTABLE DOWNLIGHT


RPS REMOTE POWER SUPPLY


ALPINE & ALPINE RPS 3.5IN PINHOLE


ALPINE & ALPINE RPS 3.5IN WALL WASH


ALPINE & ALPINE RPS 3.5IN ADJUSTABLE DOWNLIGHT


ALPINE & ALPINE RPS 3.5IN PINHOLE


ALPINE & ALPINE RPS 3.5IN WALL WASH

Accessories

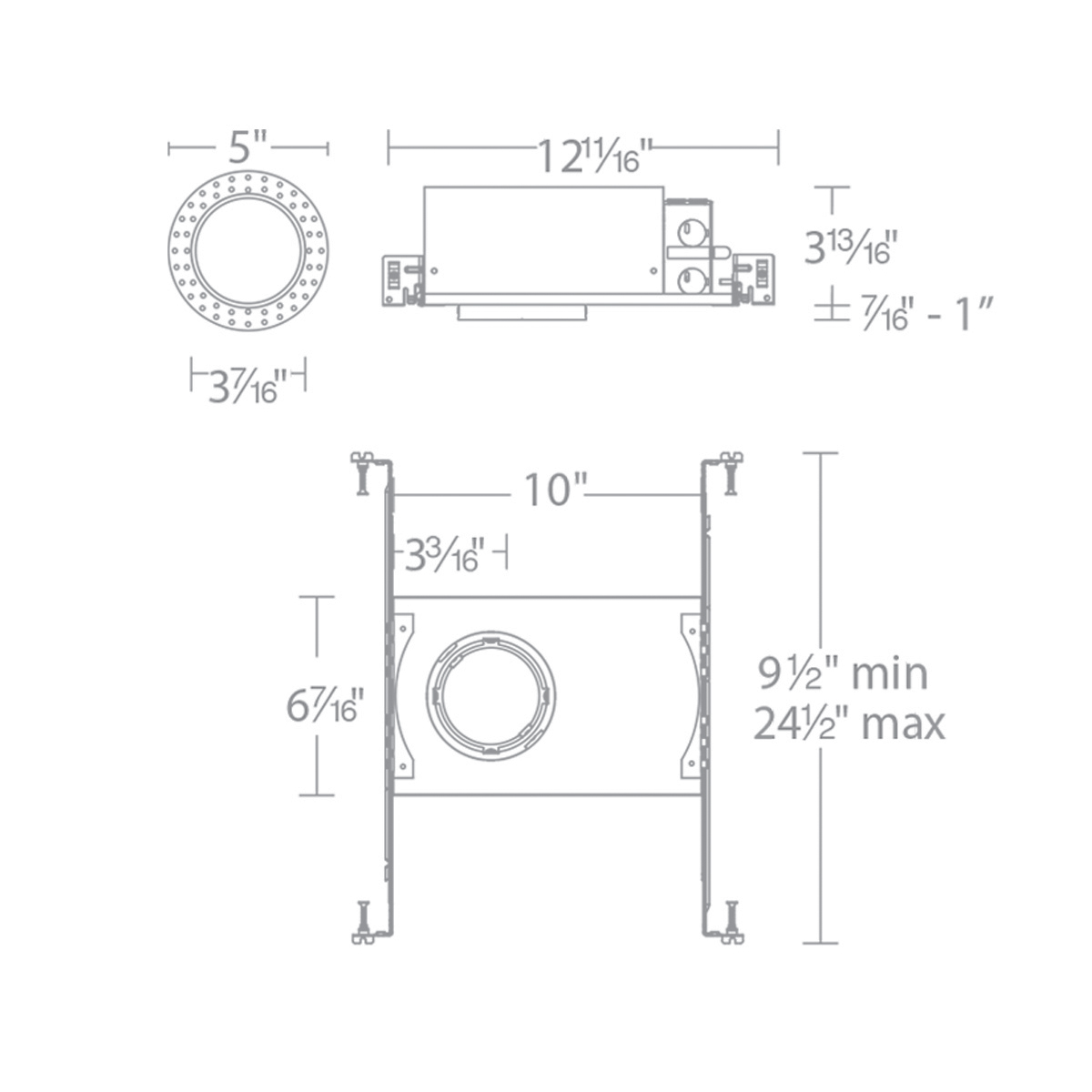

LINE DRAWING

line-drawing
  • FEATURES
  • CERTIFICATIONS
  • CCT
  • Shallow housing under 4in depth
  • Single spot light source
  • Adjustable LED light engine included with housing: Vertical Adjustment 0-30°, Horizontal Adjustment 365°
  • Trimless: Die-cast spackle frame included
  • Accepts one optional honey comb louver or optical accessory
  • Exterior trim sold separately
ul, culwet

cct-image

×
