QUARTUS ASTRO 2IN ADJUSTABLE TRIMMED SQUARE

The QUARTUS ASTRO Recessed series offers high performance LED Dim-to-Warm luminaires that provide outputs up to 1000 lumens on 2” styles. QUARTUS ASTRO is the perfect application for anywhere mood and emotion are desired in a space. The series features superlative glare control with 30° shielding, 35° vertical tilting with 360° horizontal rotation,and uniform floor-to-ceiling wall washing. A full line of round and square, trimmed and trimless luminaires deliver versatile lighting solutions for various applications. The recessed series includes easy replacement of both the ligh engine and driver.

  • Operating Temp: -4°F to 104°F (-20°C to 40°C)
  • Two-piece die-cast construction
  • Light engine mounted on trim with springs for easy replacement
  • 0-35° vertical tilting
  • Field changeable beam angle with reflectors provided
  • Accepts one Lens or glare control accessory
  • Refer to specification sheet for lumens and CBCP data
thumbnail-image
thumbnail-image
thumbnail-image
thumbnail-image
thumbnail-image
product-slide
product-slide
product-slide
product-slide
product-slide

Specifications

Order Number: A1RS-A56M-DWBK
model color temp & cri max lumens max cbcp finish
A1RS-A56M
DW - 3000K - 1800K - 90
865
1575
BK - Black
DB - Dark Bronze
HZWT - Haze/White
WT - White

Components

Accessories

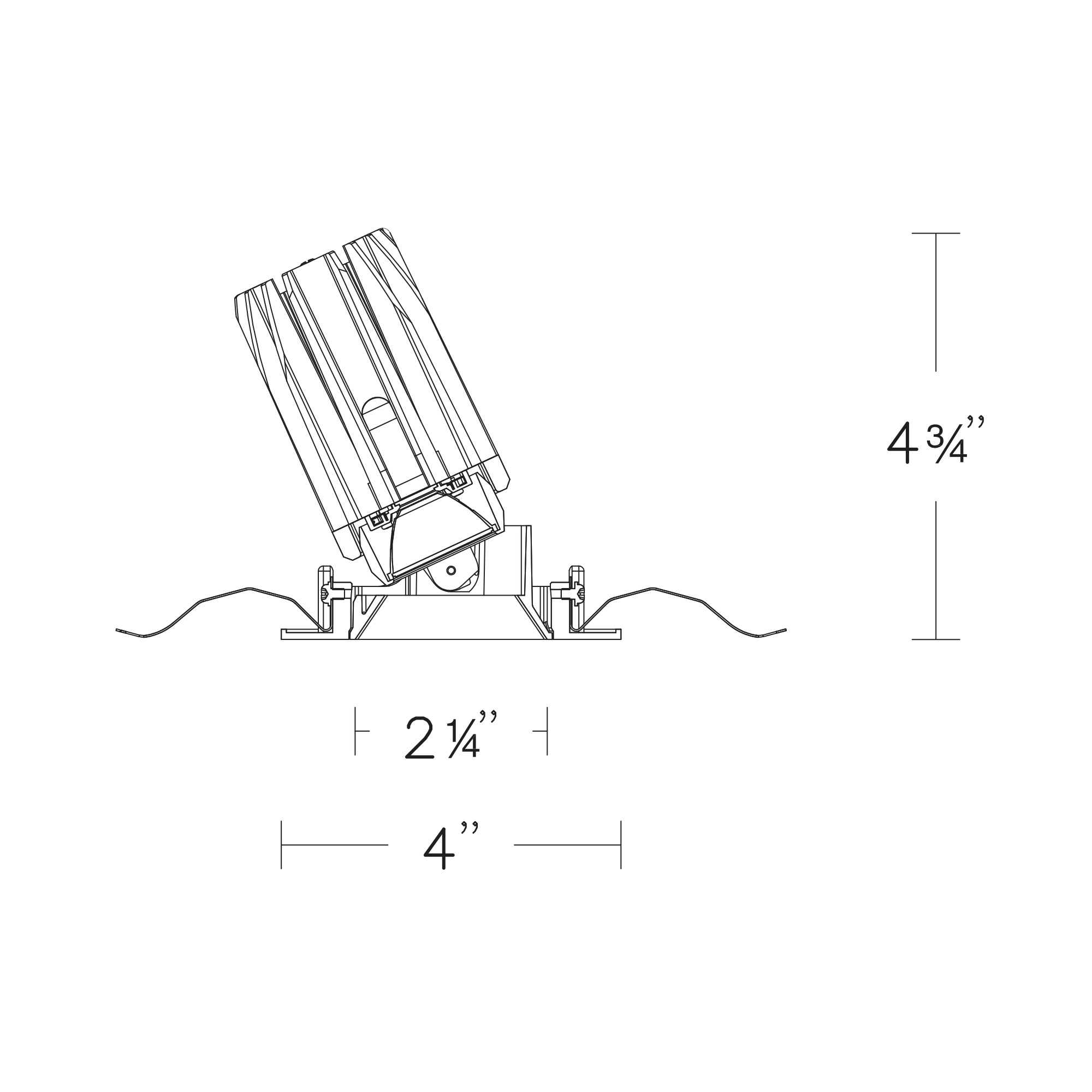

LINE DRAWING

line-drawing
  • FEATURES
  • CERTIFICATIONS
  • CCT
  • Operating Temp: -4°F to 104°F (-20°C to 40°C)
  • Two-piece die-cast construction
  • Light engine mounted on trim with springs for easy replacement
  • 0-35° vertical tilting
  • Field changeable beam angle with reflectors provided
  • Accepts one Lens or glare control accessory
  • Refer to specification sheet for lumens and CBCP data
etl, cetldamp

cct-image
