QUARTUS ASTRO 4IN DOWNLIGHT TRIMLESS SQUARE

QUARTUS ASTRO Recessed luminaires are high performance Dim-to-Warm LED luminaires with outputs up to 1300 lumens on 4” styles. The series features superlative glare control with 30° shielding, 45° vertical tilting with 360° horizontal rotation, and uniform floor-to-ceiling wall washing. Two power level options and a full line of round and square, trimmed and trimless luminaires deliver versatile lighting solutions for various applications. The QUARTUS recessed family offers outstanding value and quality, backed by exceptional serviceability that includes easy replacement of both the light engine and driver.

  • Operating Temp: -4°F to 104°F (-20°C to 40°C)
  • Two-piece die-cast construction
  • Light engine mounted on trim with springs for easy replacement
  • 30° shielding angle design for great visual comfort
  • Field changeable beam angle with reflectors provided
  • Accepts one Lens or glare control accessory
  • Refer to specification sheet for lumens and CBCP data
thumbnail-image
thumbnail-image
thumbnail-image
thumbnail-image
thumbnail-image
product-slide
product-slide
product-slide
product-slide
product-slide

Specifications

Order Number: A1RT-D57M-DWBK
model color temp & cri max lumens max cbcp finish
A1RT-D57M
DW - 3000K - 1800K - 90
1270
3100
BK - Black
DB - Dark Bronze
HZ - Haze
WT - White

Components

Accessories

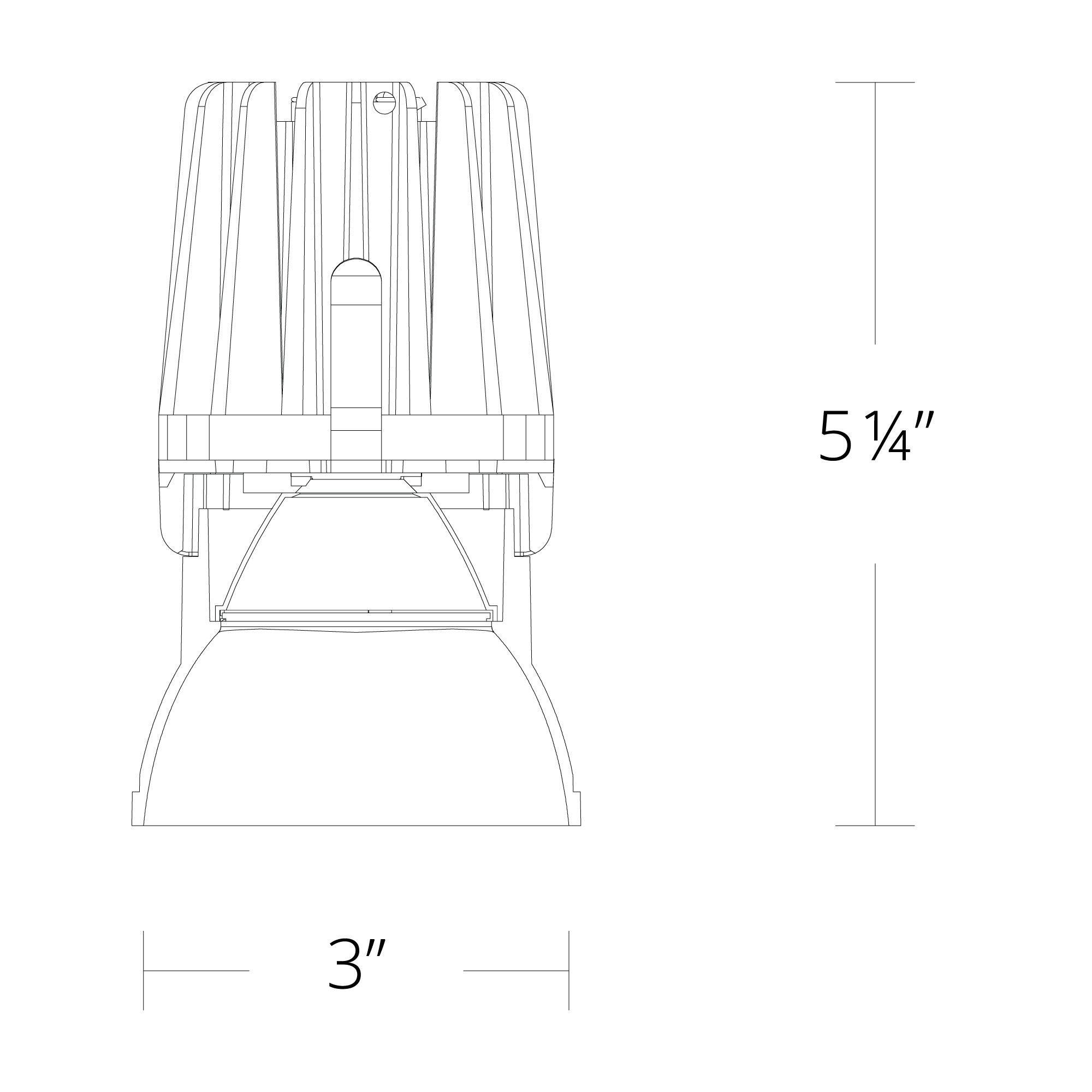

LINE DRAWING

line-drawing
  • FEATURES
  • CERTIFICATIONS
  • CCT
  • Operating Temp: -4°F to 104°F (-20°C to 40°C)
  • Two-piece die-cast construction
  • Light engine mounted on trim with springs for easy replacement
  • 30° shielding angle design for great visual comfort
  • Field changeable beam angle with reflectors provided
  • Accepts one Lens or glare control accessory
  • Refer to specification sheet for lumens and CBCP data
yesetl, cetlwet

cct-image
