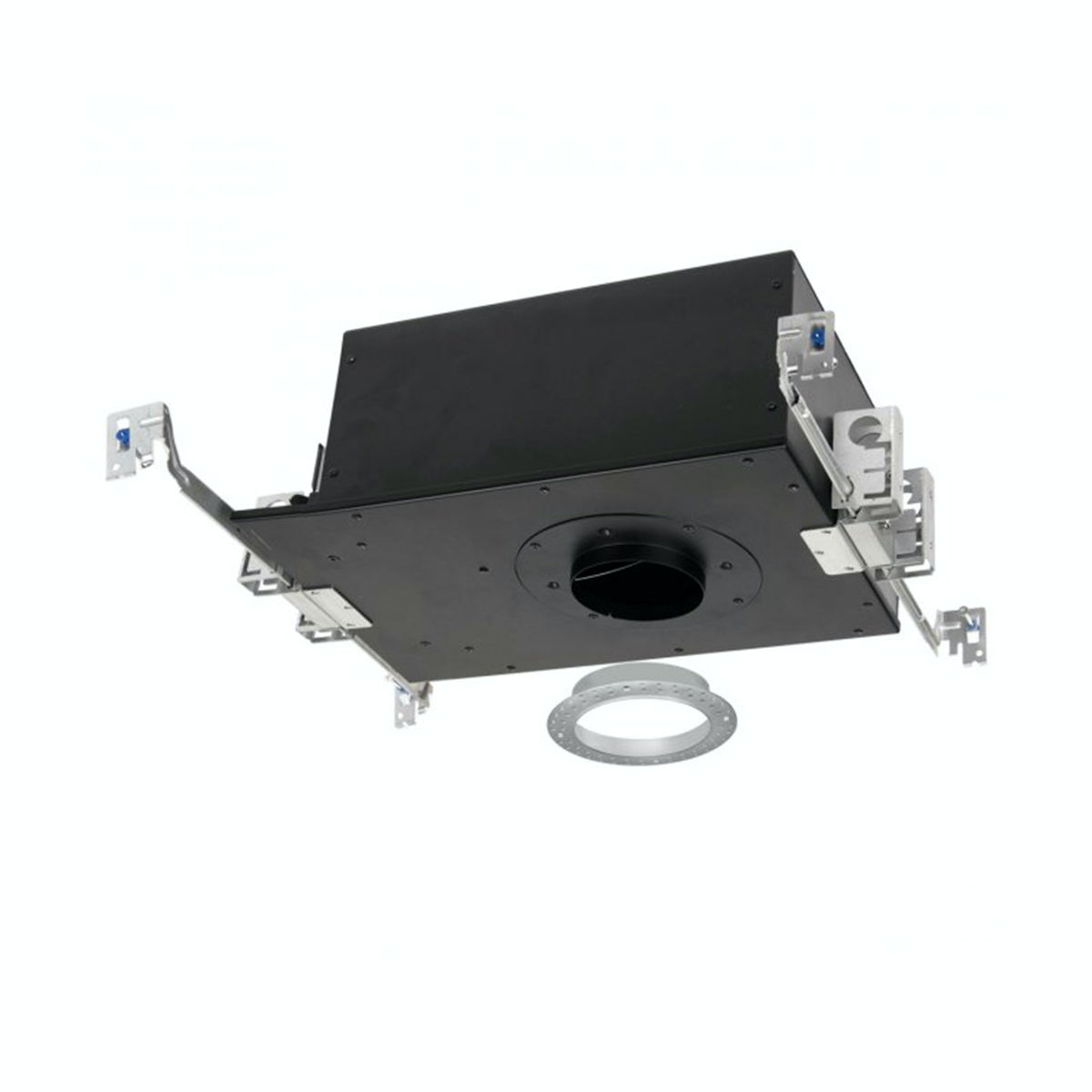

ATMOSPHERE 2.5IN NEW CONSTRUCTION HOUSING INVISIBLE TRIM ROUND

Atmosphere is the quintessential high-performance LED architectural recessed downlight. Atmosphere housings can be specified with one of three (15W, 25W, 36W) serviceable drivers to plan your project in accordance with energy and lighting requirements up to 3,000 Lumens. Available in New Construction IC Rated Airtight or Remodel Non-IC Airtight with emergency backup battery and Chicago Plenum Safety options. Atmosphere trims include an LED light engine with a replaceable high-powered LED module and are available in a variety of options including round, square, adjustable, wall wash, shallow regressed, or a sleek flangeless trim which can be spackled directly up to the aperture. Tool-less in-field adjustable glare control and optic system can be used for louvers, lens, and beam control.

  • Natural and Vivid Precision LED CCT Tuning
thumbnail-image
product-slide

Specifications

Order Number: A1RA-2471-CT-X
model power & rating driver
A1RA-247
1 - 15W - IC
2 - 22W - Non IC
CT-X - DMX
CT-Z - 0-10V

Components

Accessories

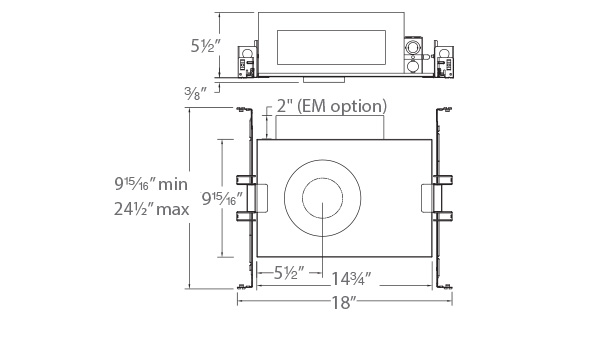

LINE DRAWING

line-drawing
  • FEATURES
  • CERTIFICATIONS
  • Natural and Vivid Precision LED CCT Tuning
etl, cetl
