ATMOSPHERE 2.5IN PINHOLE TRIM SQUARE

Atmosphere LED downlight series represents an innovation in design and technology for architectural lighting. This high lumen and adaptable family of fixtures with a comprehensive set of round and square fittings, affords a sustainable solution for commercial, corporate, and upscale residential applications.

  • Center beam alignment retained throughout adjustment range
  • 0-30° vertical and 365° horizontal lockable hot aiming
  • Indexed vertical scaling for precise and accurate alignment
  • Integral patterned tempered trim lens included standard
  • Compatible with a wide range of accessories
  • Natural and Vivid Precision LED CCT Tuning
thumbnail-image
product-slide

Specifications

Order Number: A1RA-P58N-C1BK
model beam color temp & cri 15w/22w lumens 15w/22w cbcp finish
A1RA-P58
N - 25°
C1 - 2700K-6500K - 98
C2 - 1800K-4000K - 98
310 / 470
2195 / 3010
BK - Black
CB - Copper Bronze
HZ - Haze
WT - White

Components


ATMOSPHERE 2.5IN REMODEL HOUSING


ATMOSPHERE 2.5IN REMODEL HOUSING


ATMOSPHERE 2.5IN NEW CONSTRUCTION HOUSING


ATMOSPHERE 2.5IN NEW CONSTRUCTION HOUSING

Accessories


LENS-16-HLD ACCESSORY HOLDER

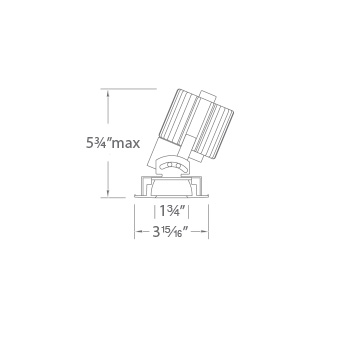

LINE DRAWING

line-drawing
  • FEATURES
  • CERTIFICATIONS
  • CCT
  • Center beam alignment retained throughout adjustment range
  • 0-30° vertical and 365° horizontal lockable hot aiming
  • Indexed vertical scaling for precise and accurate alignment
  • Integral patterned tempered trim lens included standard
  • Compatible with a wide range of accessories
  • Natural and Vivid Precision LED CCT Tuning
etl, cetlwet

cct-image
