ATMOSPHERE 4.5IN DOWNLIGHT TRIMLESS SQUARE

ATMOSPHERE LED downlight series represents an innovation in design and technology for architectural lighting. This high lumen and adaptable family of fixtures with a comprehensive set of round and square fittings, affords a sustainable solution for commercial, corporate, and upscale residential applications.

  • 2" lens regress for superior glare control
  • Field selectable light engine height for cut-off angle adjustment (30° - 34°) and accessory use
  • Compatible with wide range of accessories
  • Natural and Vivid Precision LED CCT Tuning
thumbnail-image
thumbnail-image
product-slide
product-slide

Specifications

Order Number: A1RB-D57F-C1BK
model beam color temp & cri 20w / 29w / 44w lumens 20w / 29w / 44w cbcp finish
A1RB-D57
N - 25°
F - 45°
W - 60°
C1 - 2700K-6500K - 98
C2 - 1800K-4000K - 98
1100 / 1640 / 2315
1255 / 1865 / 2600
BK - Black
CB - Copper Bronze
HZ - Haze
WT - White

Components


ATMOSPHERE 4.5IN NEW CONSTRUCTION HOUSING


ATMOSPHERE 4.5IN REMODEL HOUSING TRIMLESS SQUARE

Accessories


LENS-73-HLD ACCESSORY HOLDER

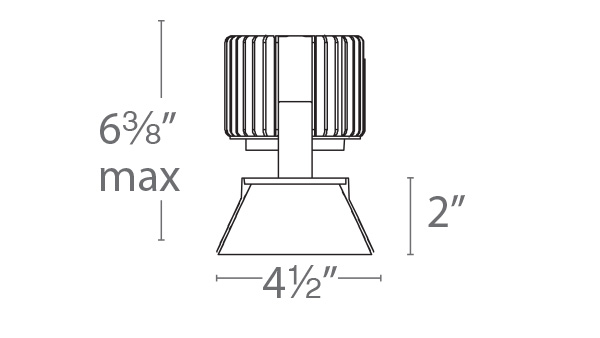

LINE DRAWING

line-drawing
  • FEATURES
  • CERTIFICATIONS
  • CCT
  • 2" lens regress for superior glare control
  • Field selectable light engine height for cut-off angle adjustment (30° - 34°) and accessory use
  • Compatible with wide range of accessories
  • Natural and Vivid Precision LED CCT Tuning
etl, cetlwet

cct-image
