ATMOSPHERE 4.5IN DOWNLIGHT TRIMMED ROUND

ATMOSPHERE LED downlight series represents an innovation in design and technology for architectural lighting. This high lumen and adaptable family of fixtures with a comprehensive set of round and square fittings, affords a sustainable solution for commercial, corporate, and upscale residential applications.

  • 2" lens regress for superior glare control
  • Field selectable light engine height for cut-off angle adjustment (30° - 34°) and accessory use
  • Compatible with wide range of accessories
  • Natural and Vivid Precision LED CCT Tuning

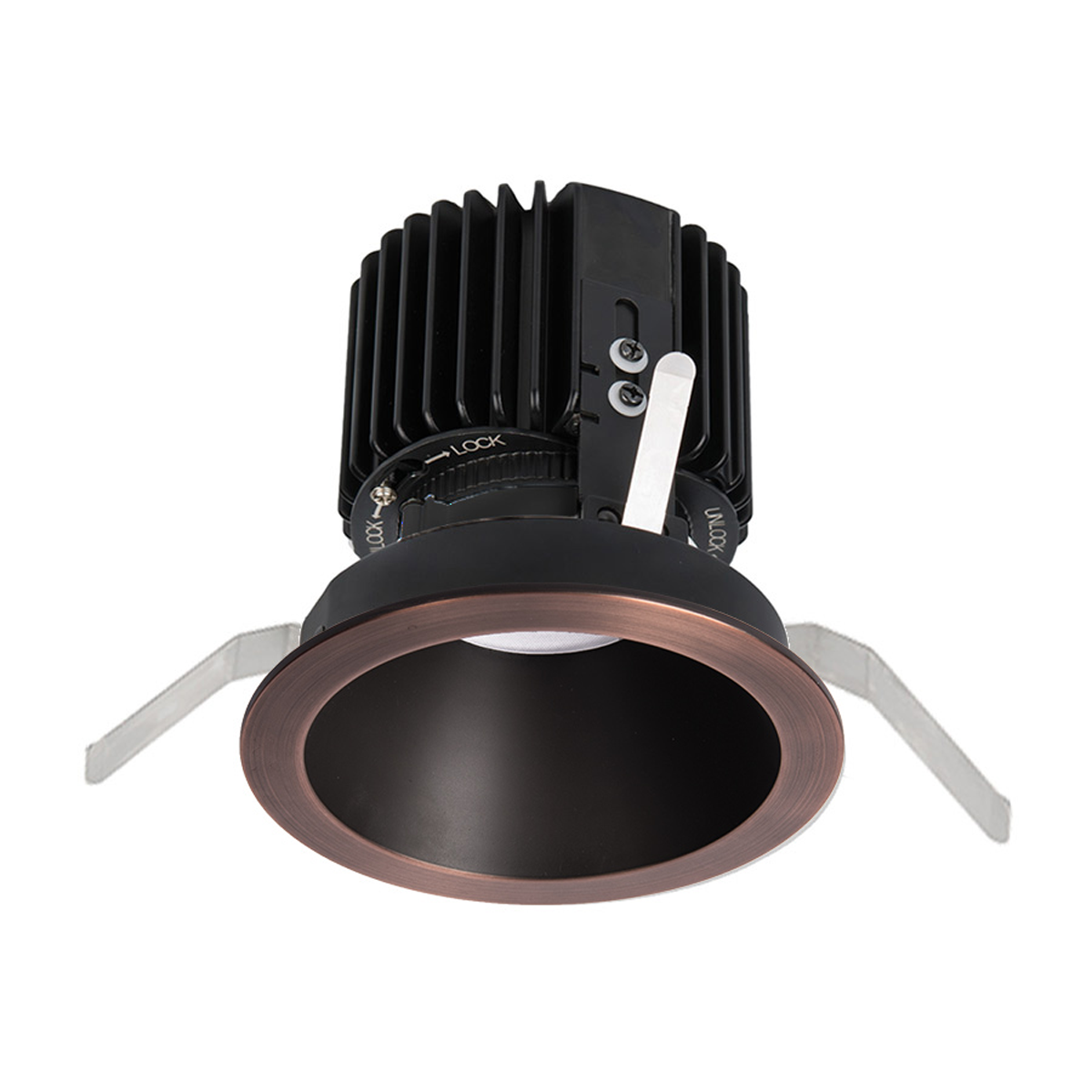

thumbnail-image

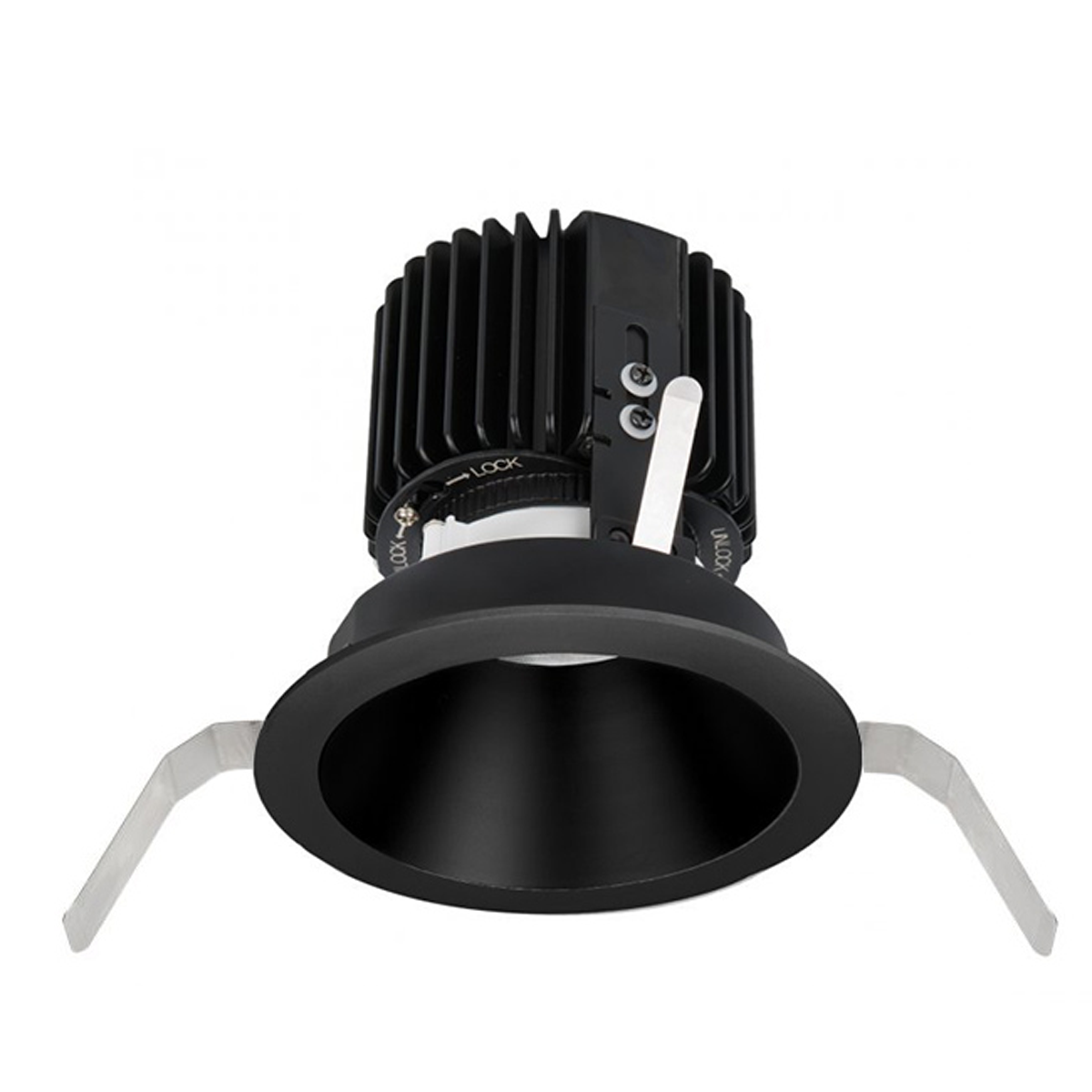

thumbnail-image

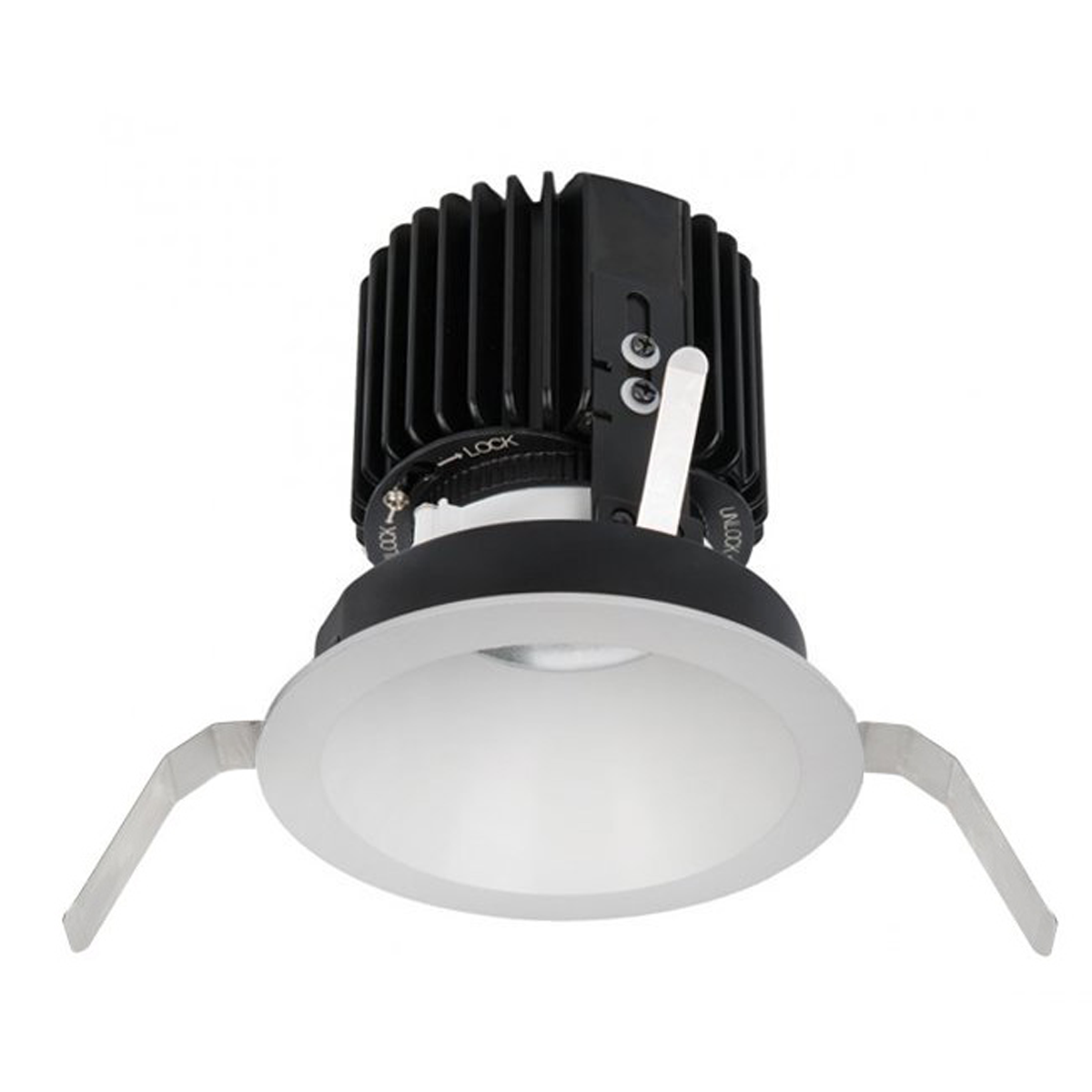

thumbnail-image
product-slide
product-slide
product-slide

Specifications

Order Number: A1RB-D46F-C1BK
model beam color temp & cri 20w / 29w / 44w lumens 20w / 29w / 44w cbcp finish
A1RB-D46
N - 25°
F - 45°
W - 60°
C1 - 2700K-6500K - 98
1328 / 1954 / 2781
1452 / 2137 / 3041
BK - Black
BKWT - Black/White
CB - Copper Bronze
HZ - Haze
HZWT - Haze/White
WT - White

Components

Accessories

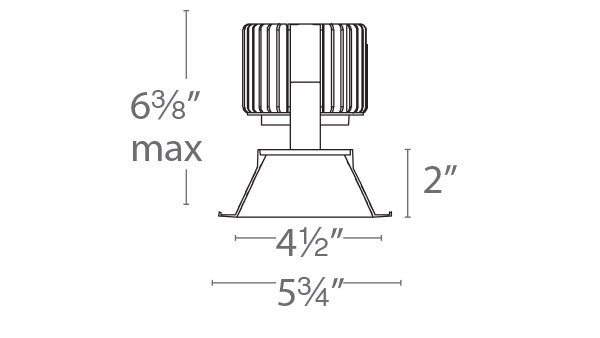

LINE DRAWING

line-drawing
  • FEATURES
  • CERTIFICATIONS
  • CCT
  • 2" lens regress for superior glare control
  • Field selectable light engine height for cut-off angle adjustment (30° - 34°) and accessory use
  • Compatible with wide range of accessories
  • Natural and Vivid Precision LED CCT Tuning
etl, cetlwet
cct-image
