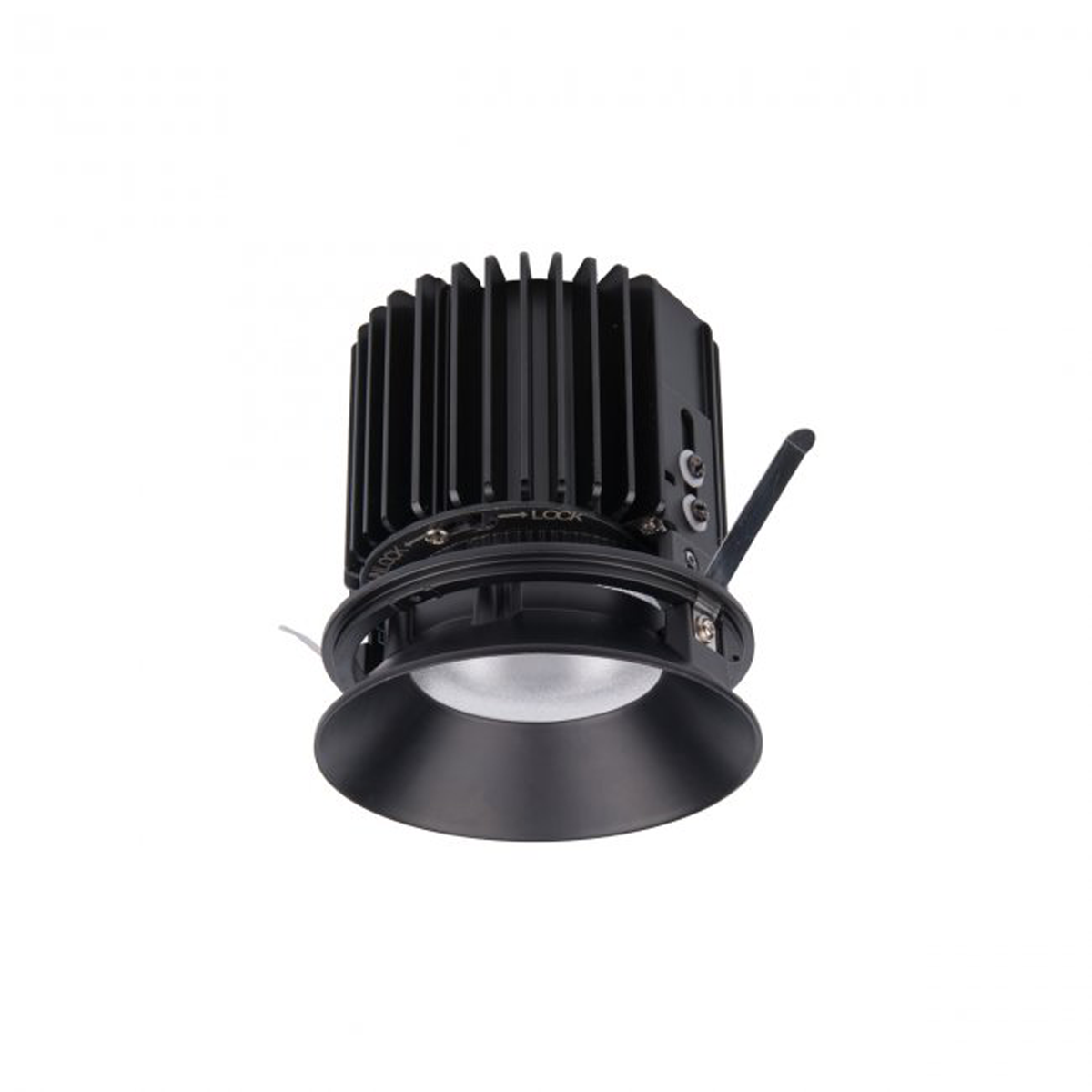

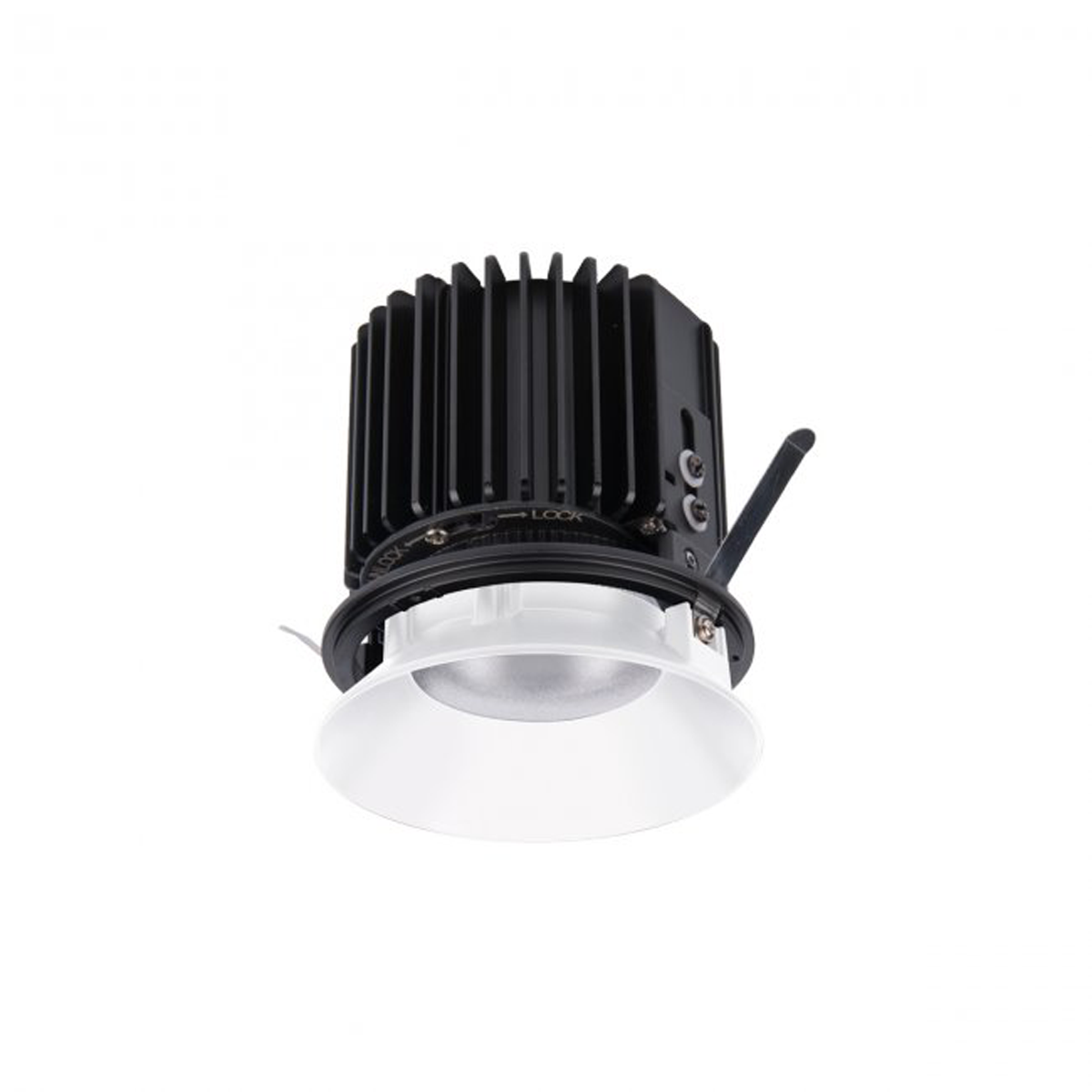

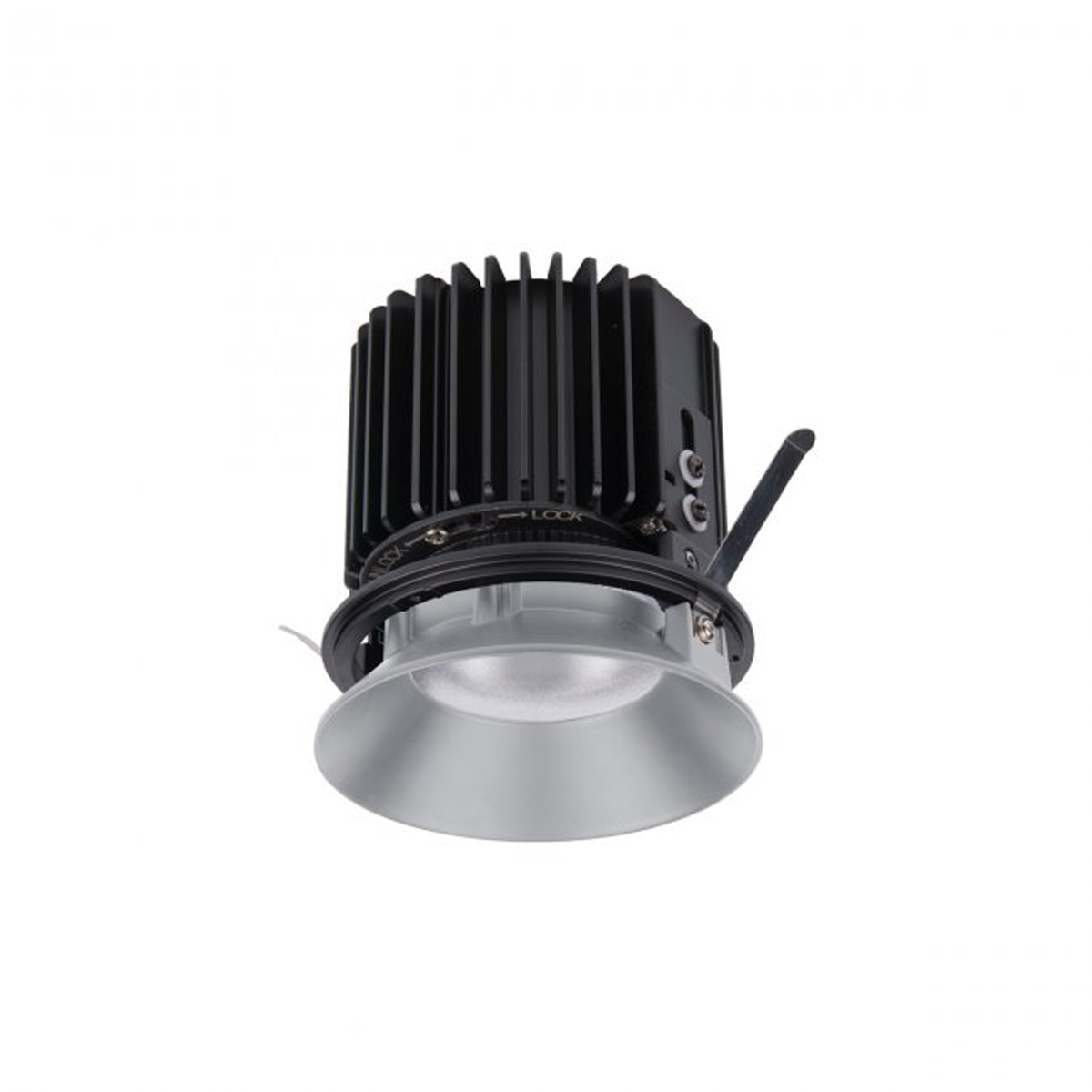

ATMOSPHERE 4.5IN SHALLOW REGRESSED TRIMLESS ROUND

ATMOSPHERE LED downlight series represents an innovation in design and technology for architectural lighting. This high lumen and adaptable family of fixtures with a comprehensive set of round and square fittings, affords a sustainable solution for commercial, corporate, and upscale residential applications.

  • Increased field angle for reduced scalloping
  • Low ceiling and close-to-wall application
  • Field selectable light engine height for cut-off angle adjustment (32° - 40°) and accessory use
  • Compatible with wide range of accessories
  • Natural and Vivid Precision LED CCT Tuning
thumbnail-image
thumbnail-image
thumbnail-image
product-slide
product-slide
product-slide

Specifications

Order Number: A1RB-S47F-C1BK
model beam color temp & cri 20w / 29w / 44w lumens 20w / 29w / 44w cbcp finish
A1RB-S47
N - 25°
F - 45°
W - 60°
C1 - 2700K-6500K - 98
C2 - 1800K-4000K - 98
1050 / 1555 / 2205
1165 / 1735 / 2410
BK - Black
CB - Copper Bronze
HZ - Haze
WT - White

Components

Accessories

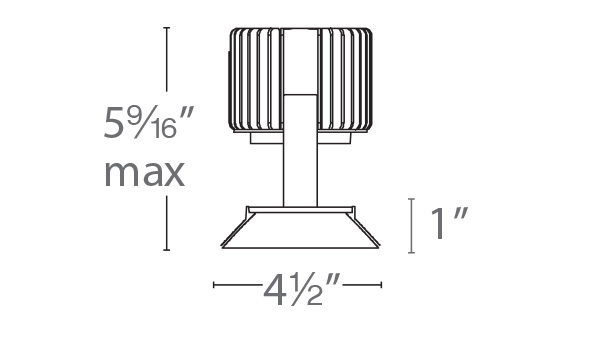

LINE DRAWING

line-drawing
  • FEATURES
  • CERTIFICATIONS
  • CCT
  • Increased field angle for reduced scalloping
  • Low ceiling and close-to-wall application
  • Field selectable light engine height for cut-off angle adjustment (32° - 40°) and accessory use
  • Compatible with wide range of accessories
  • Natural and Vivid Precision LED CCT Tuning
etl, cetlwet
