ATMOSPHERE PRO 4.5IN SHALLOW REGRESSED TRIMMED SQUARE

ATMOSPHERE PRO LED downlight series represents an innovation in design and technology for architectural lighting. This high lumen and adaptable family of fixtures with a comprehensive set of round and square fittings, affords a sustainable solution for commercial, corporate, and upscale residential applications.

  • Increased field angle for reduced scalloping
  • Low ceiling and close-to-wall application
  • Field selectable light engine height for cut-off angle adjustment (32° - 40°) and accessory use
  • Compatible with wide range of accessories
  • Natural and Vivid Precision LED CCT Tuning
thumbnail-image
thumbnail-image
thumbnail-image
thumbnail-image
thumbnail-image
thumbnail-image
thumbnail-image
thumbnail-image
thumbnail-image
thumbnail-image
thumbnail-image
thumbnail-image
product-slide
product-slide
product-slide
product-slide
product-slide
product-slide
product-slide
product-slide
product-slide
product-slide
product-slide
product-slide

Specifications

Order Number: A1RB-S56F-C1BK
model beam color temp & cri 20w / 29w / 44w lumens 20w / 29w / 44w cbcp finish
A1RB-S56
N - 25°
F - 45°
W - 60°
C1 - 2700K-6500K - 98
C2 - 1800K-4000K - 98
1140 / 1685 / 2390
1245 / 1855 / 2575
BK - Black
BKWT - Black/White
CB - Copper Bronze
HZ - Haze
HZWT - Haze/White
WT - White

Components


ATMOSPHERE PRO 4.5IN NEW CONSTRUCTION HOUSING


ATMOSPHERE PRO 4.5IN REMODEL HOUSING

Accessories


LENS-73-HLD

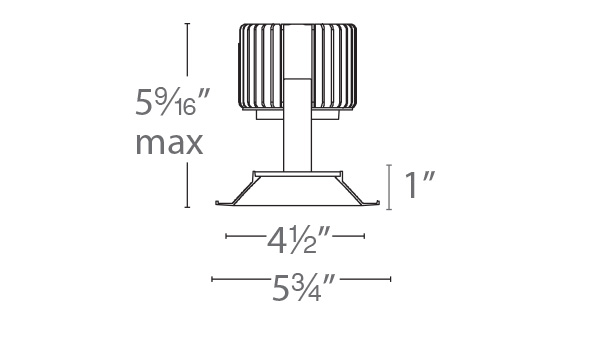

LINE DRAWING

line-drawing
  • FEATURES
  • CERTIFICATIONS
  • CCT
  • Increased field angle for reduced scalloping
  • Low ceiling and close-to-wall application
  • Field selectable light engine height for cut-off angle adjustment (32° - 40°) and accessory use
  • Compatible with wide range of accessories
  • Natural and Vivid Precision LED CCT Tuning
etl, cetlwet

cct-image

×
