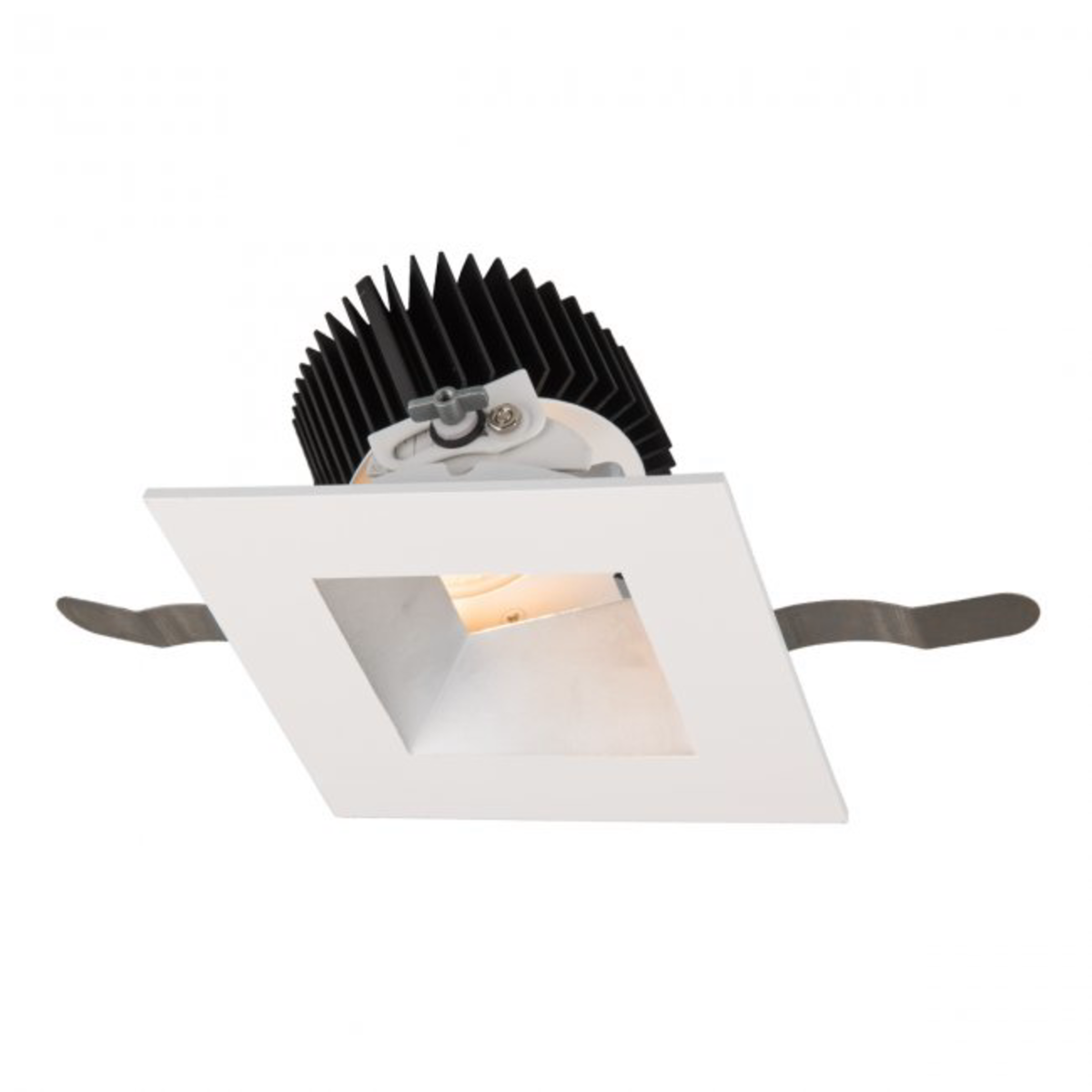

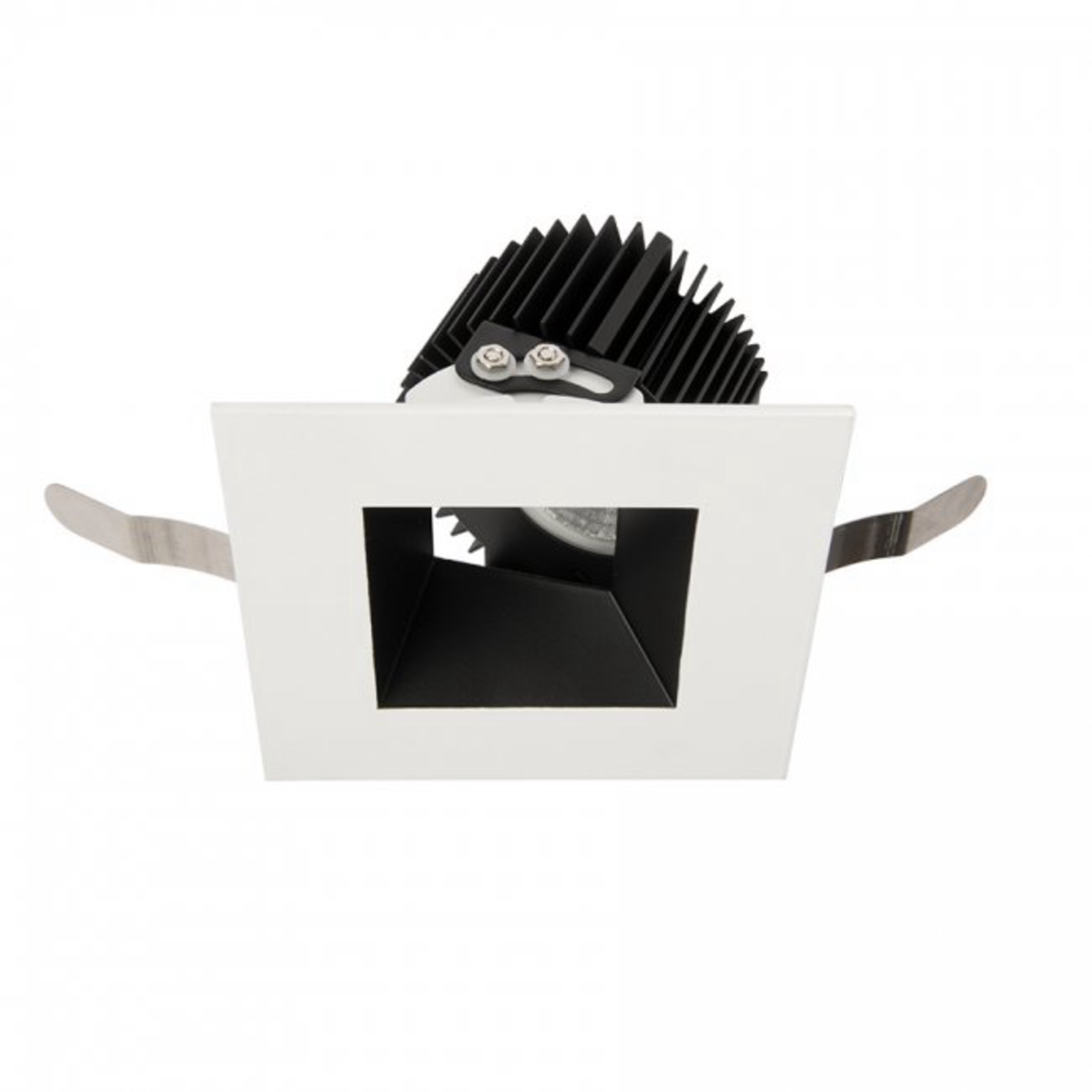

ATMOSPHERE RPS 3.5IN ADJUSTABLE TRIMMED SQUARE

ATMOSPHERE RPS 3.5IN features all of the benefits of a high performance LED recessed downlight including Wet Location listing, and high output with efficiency. Available in a sleek trimless option which can be spackled directly up to the aperture. At 3.5IN in height, the ATMOSPHERE RPS 3.5IN is designed with the difficult to fit jobs in mind.

Natural and vivid precision LED CCT tuning
3.5IN shallow housing, with 3.5IN aperture
35° cut-off angle
0-30° vertical adjustment range
Requires low voltage constant current AISPIRE remote power supply (RPS)
Dimmable via compatible AISPIRE RPS units, refer to RPS specification for dimming capability

Specifications

Order Number: A2RD-A56F-C1BKWT

model	beam	color temp & cri	lumens	cbcp	finish
A2RD-A56	N - 26° F - 47°	C1 - 2700K-6500K - 98 C2 - 1800K-4000K - 98	570	1125	BKWT - Black/White HZWT - Haze/White WT - White

Components

Accessories

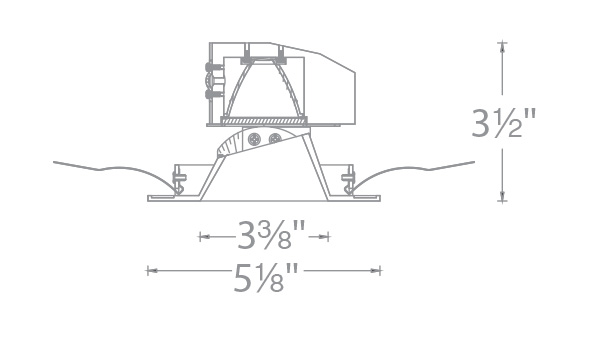

LINE DRAWING

FEATURES
CERTIFICATIONS
CCT

Natural and vivid precision LED CCT tuning
3.5IN shallow housing, with 3.5IN aperture
35° cut-off angle
0-30° vertical adjustment range
Requires low voltage constant current AISPIRE remote power supply (RPS)
Dimmable via compatible AISPIRE RPS units, refer to RPS specification for dimming capability
