AURORA 3.5IN ADJUSTABLE TRIMMED SQUARE W/ HOUSING

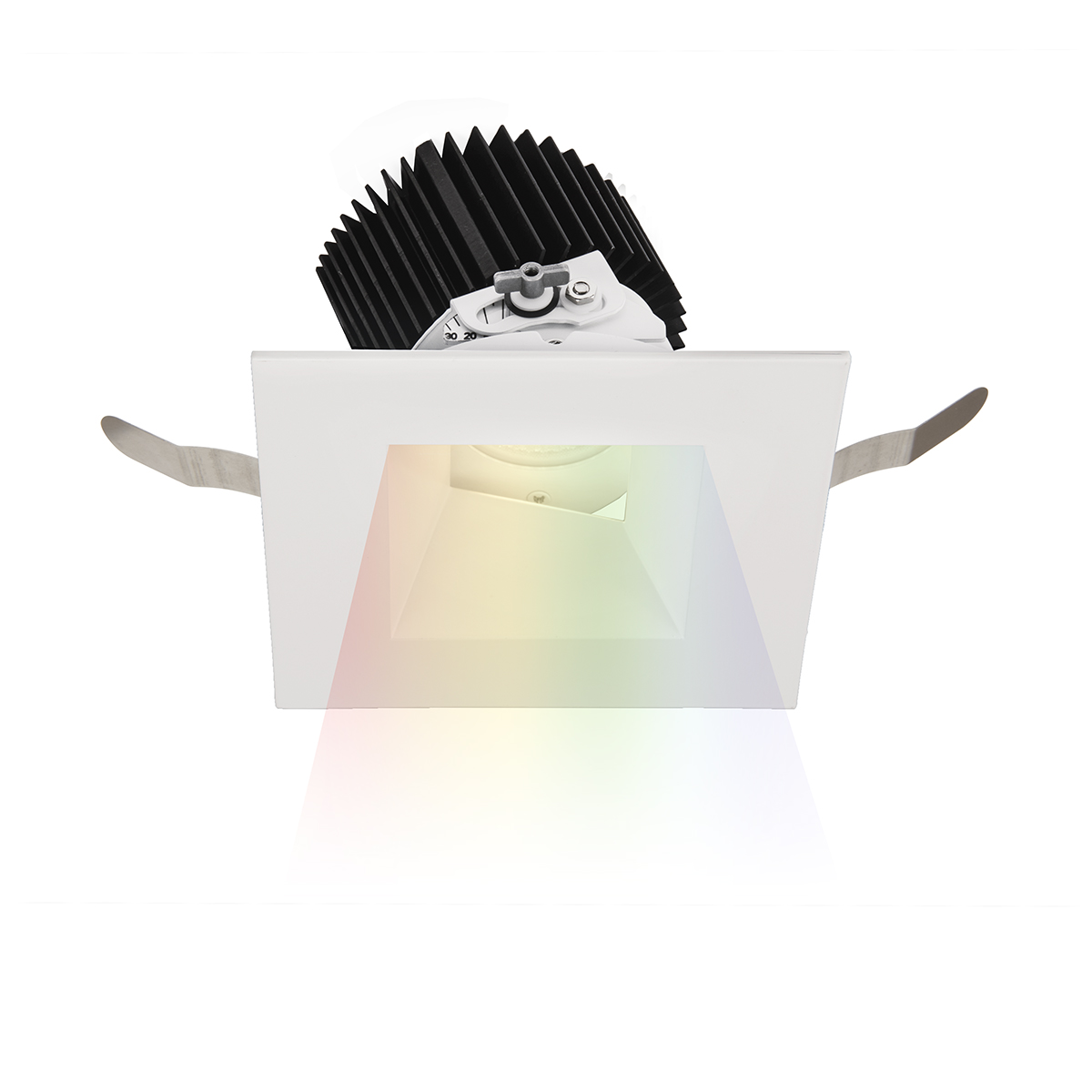

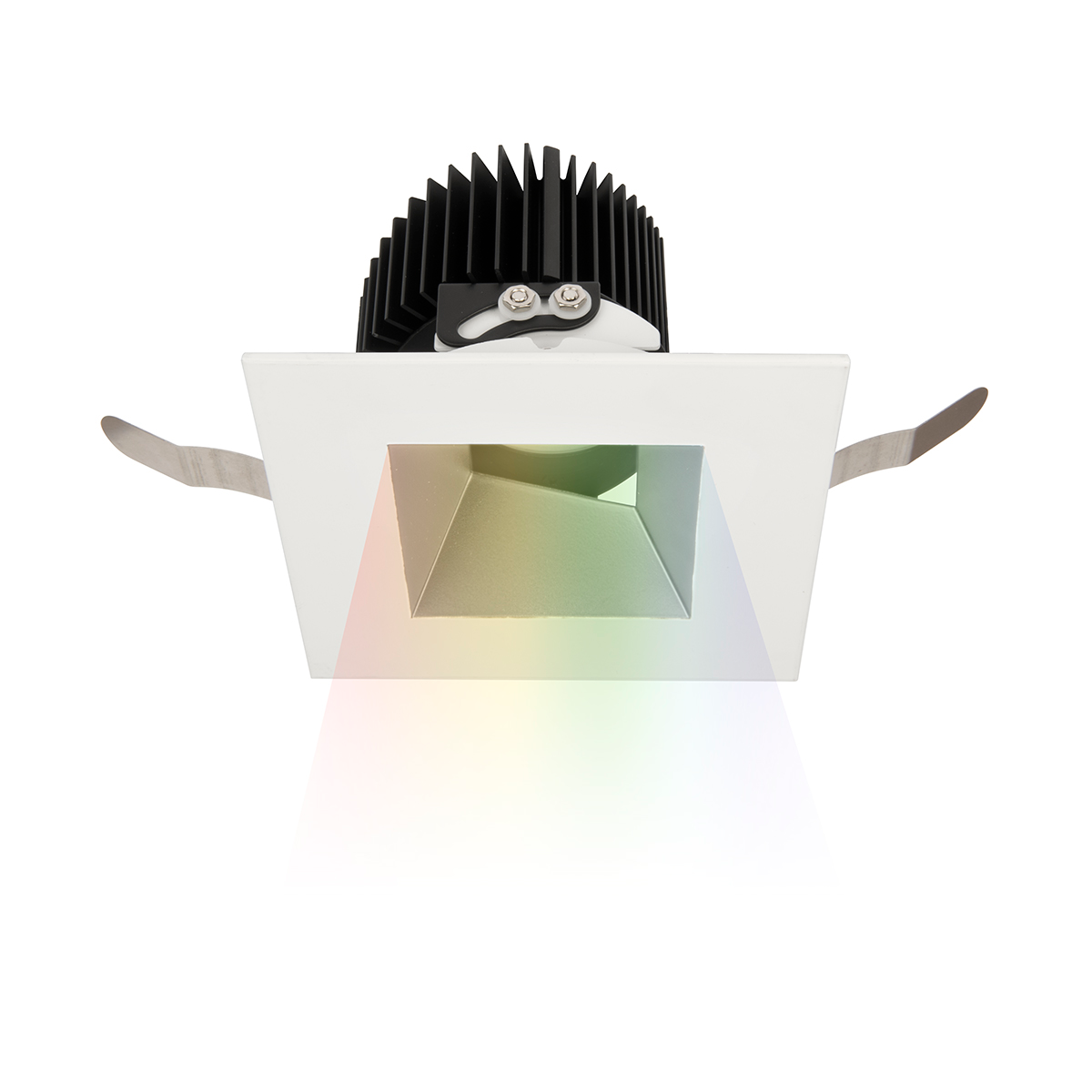

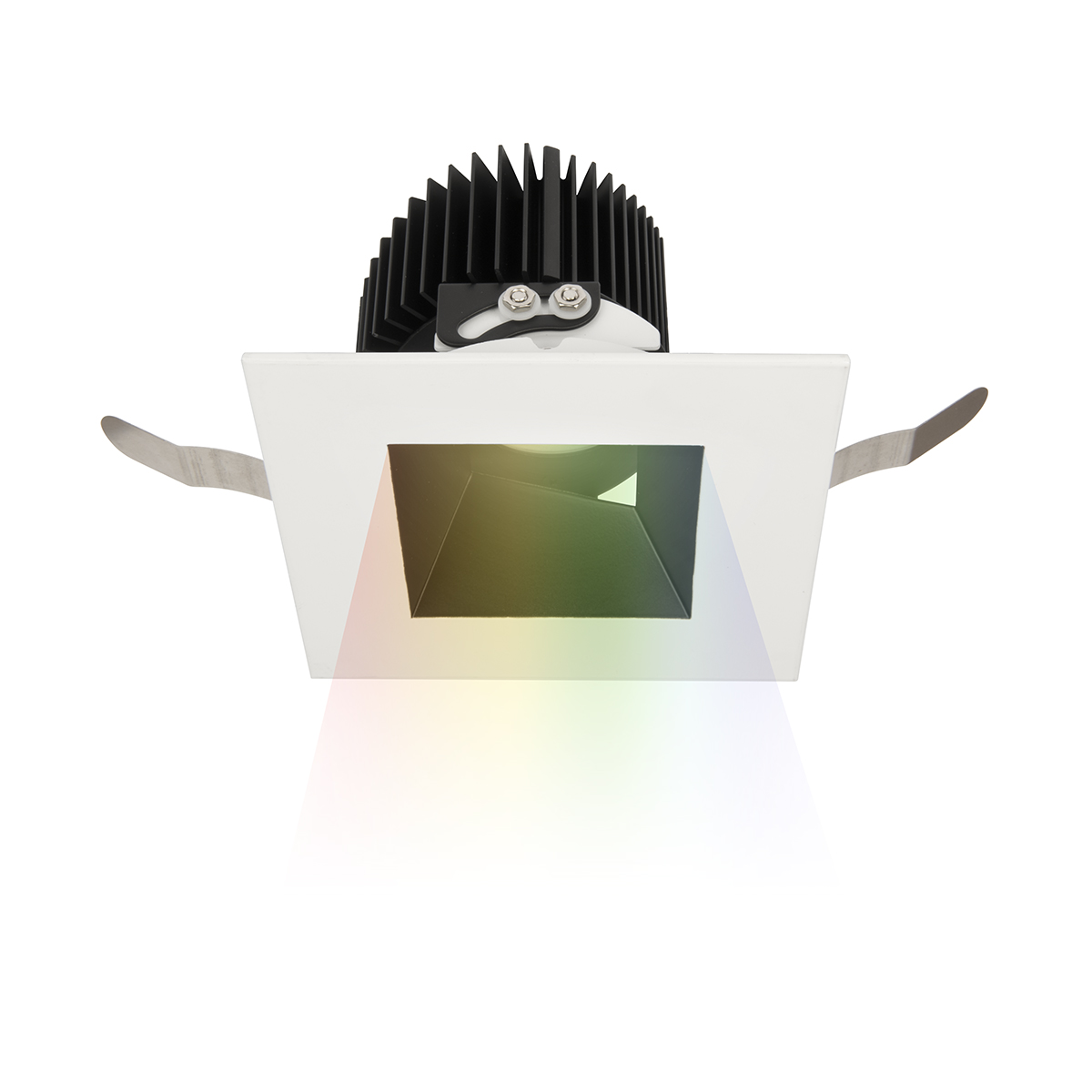

Aurora 3.5IN Color Changing is a high-performance recessed downlight with a state-of-the-art color and CCT tuning LED controlled by DMX-512A and 0-10V technology. Available in a variety of trim options including a sleek trimless option which can be spackled directly up to the aperture. At 3.5IN in housing height, Aurora is designed to fit the most difficult tight plenum spaces.

  • Shallow housing that is designed to fit in tight plenum spaces without sacrificing lumen output
  • 3.5" trim aperture and 3.5" housing height
  • Full color gamut control through gradients of saturated colors from 1-100%
  • Tunable White (CCT) Range: 1650-8000K
  • DMX512-A CCT and color control with commissioning via RDM; dimming via DMX-512A or 0-10V
  • Dimming: 100%-1% intensity control in CCT & color via DMX or 0-10V
  • Sold as a complete unit; housing and trim included
  • Integrates with 3rd party controls systems via ABiCUS Gateway
thumbnail-image
thumbnail-image
thumbnail-image
product-slide
product-slide
product-slide

Specifications

Order Number: A1RD-A562F-CCBKWT
model beam color temp & cri lumens cbcp finish
A1RD-A562
N - 25°
F - 40°
CC - R, G, B, 1650K-8000K - 90
535
1328
BKWT - Black/White
HZWT - Haze/White
WT - White

Components

Accessories

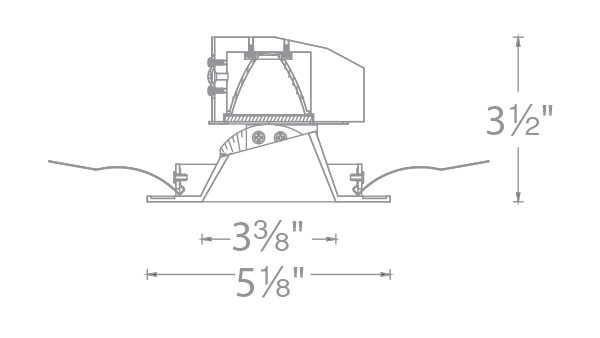

LINE DRAWING

line-drawing
  • FEATURES
  • CERTIFICATIONS
  • CCT
  • Shallow housing that is designed to fit in tight plenum spaces without sacrificing lumen output
  • 3.5" trim aperture and 3.5" housing height
  • Full color gamut control through gradients of saturated colors from 1-100%
  • Tunable White (CCT) Range: 1650-8000K
  • DMX512-A CCT and color control with commissioning via RDM; dimming via DMX-512A or 0-10V
  • Dimming: 100%-1% intensity control in CCT & color via DMX or 0-10V
  • Sold as a complete unit; housing and trim included
  • Integrates with 3rd party controls systems via ABiCUS Gateway
etl, cetldamp

cct-image
