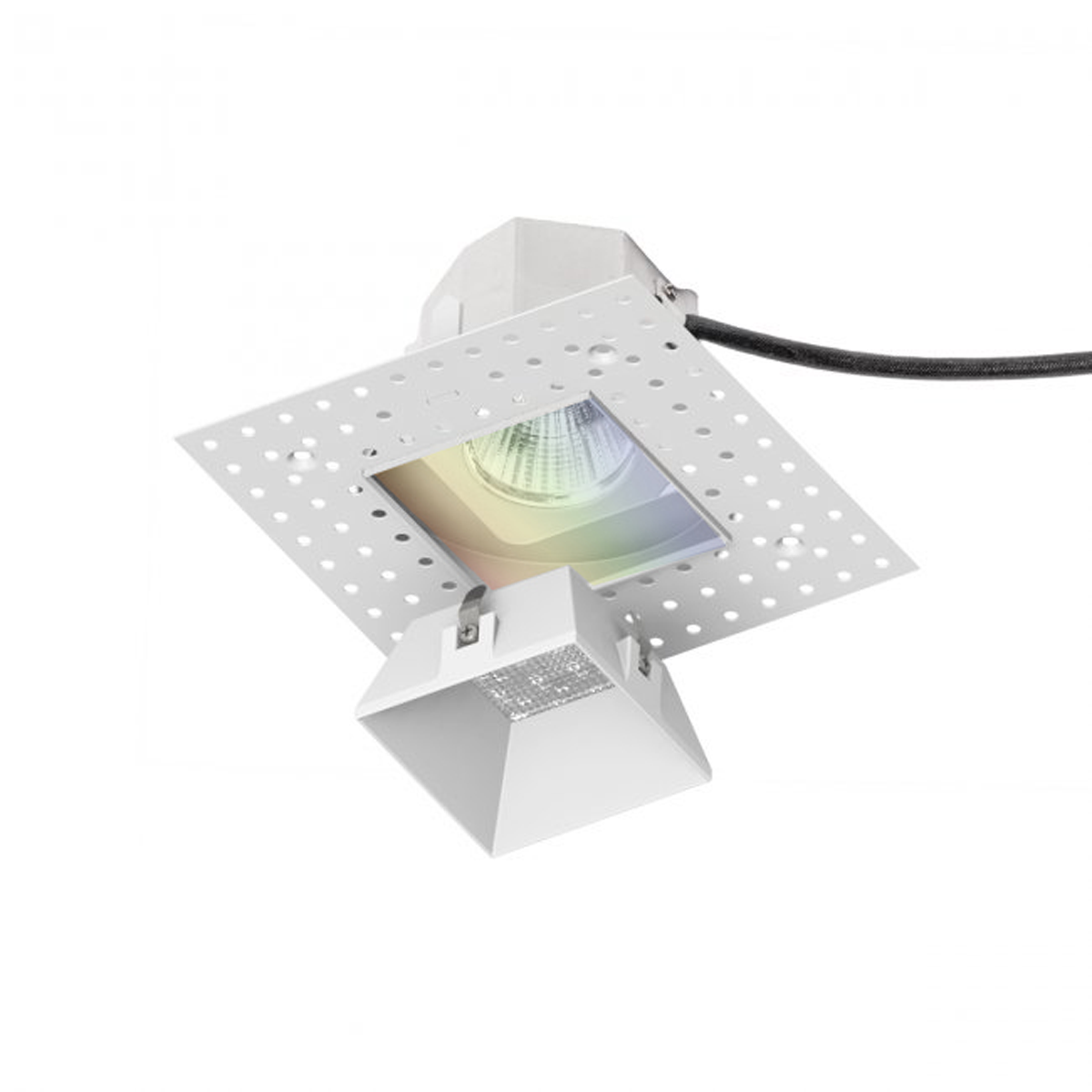

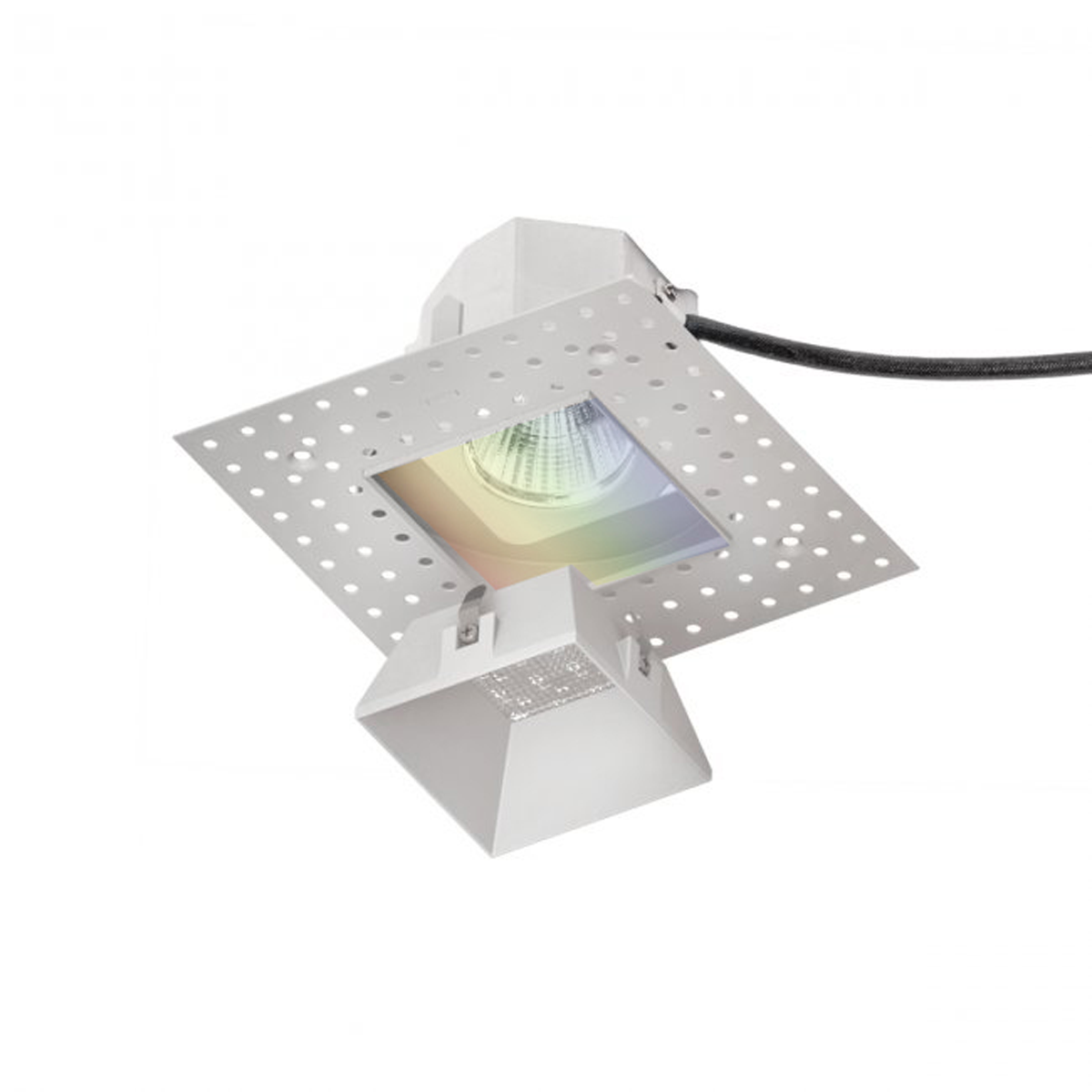

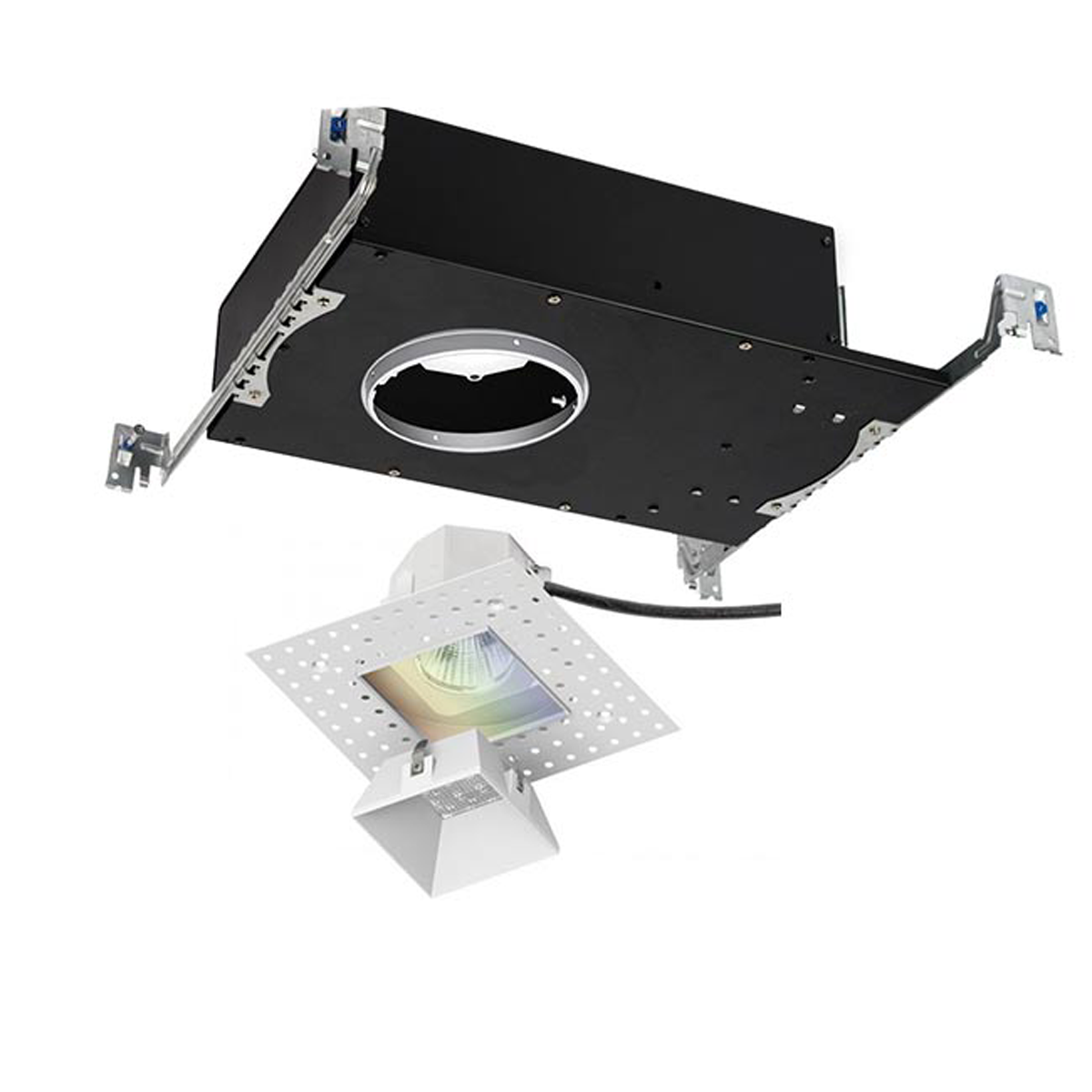

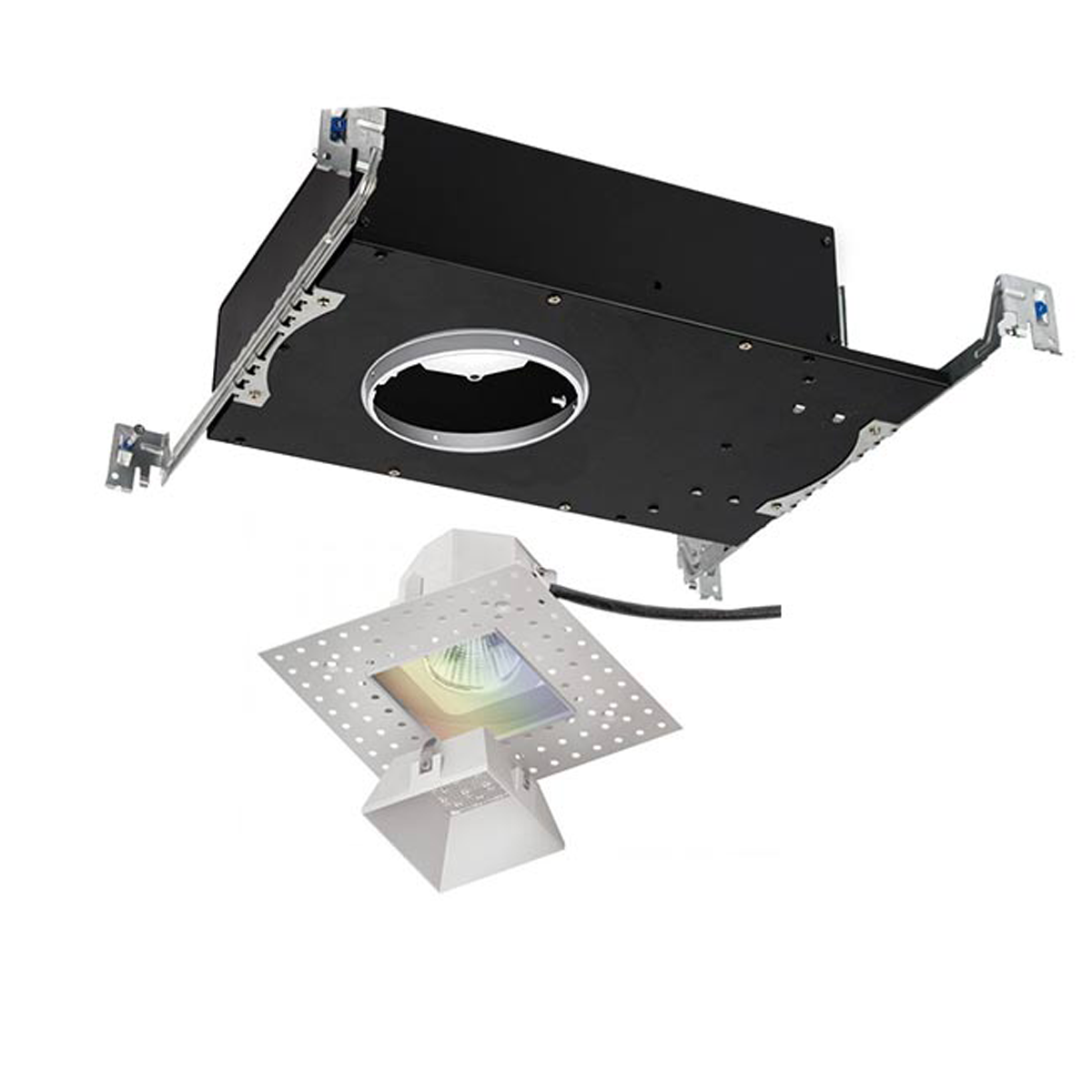

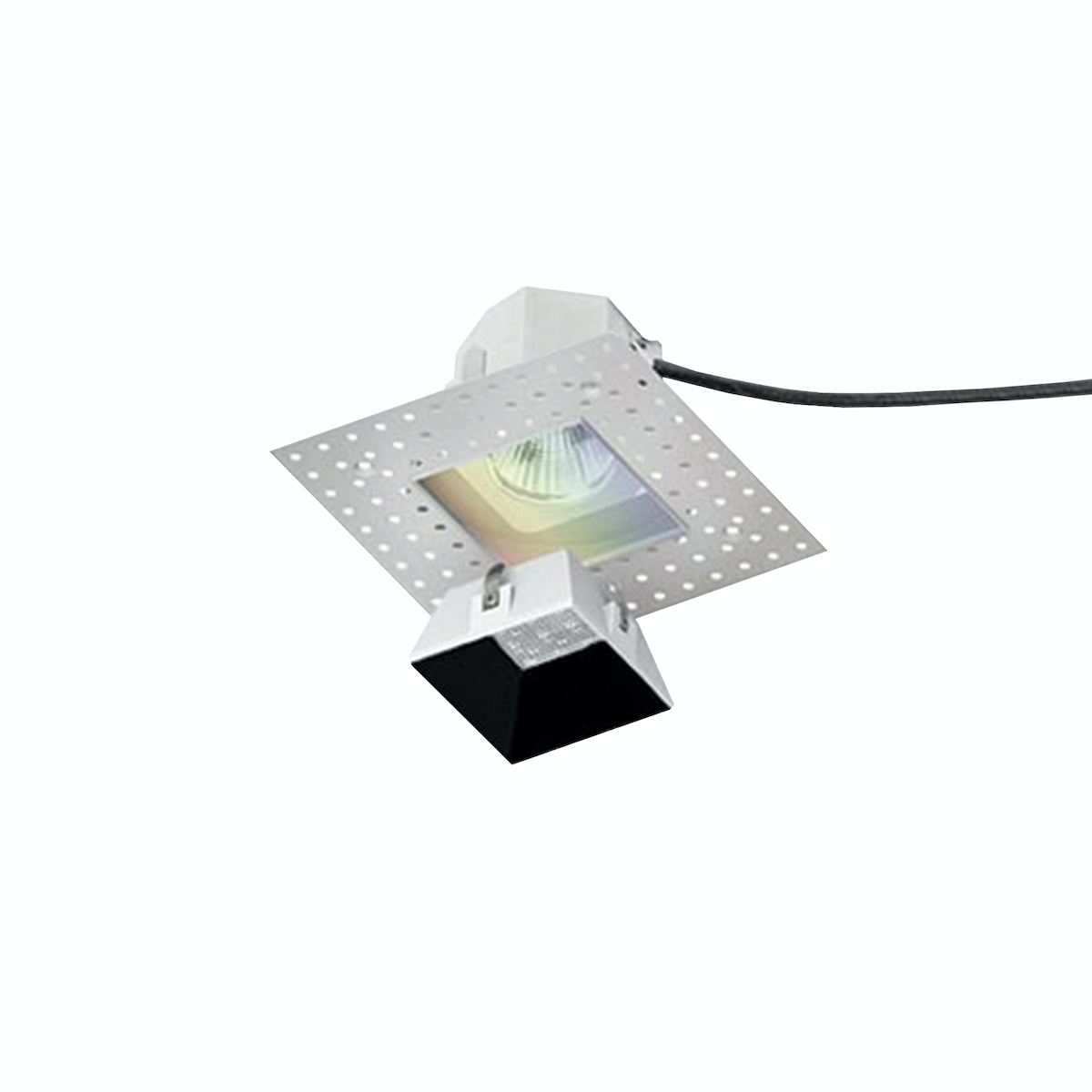

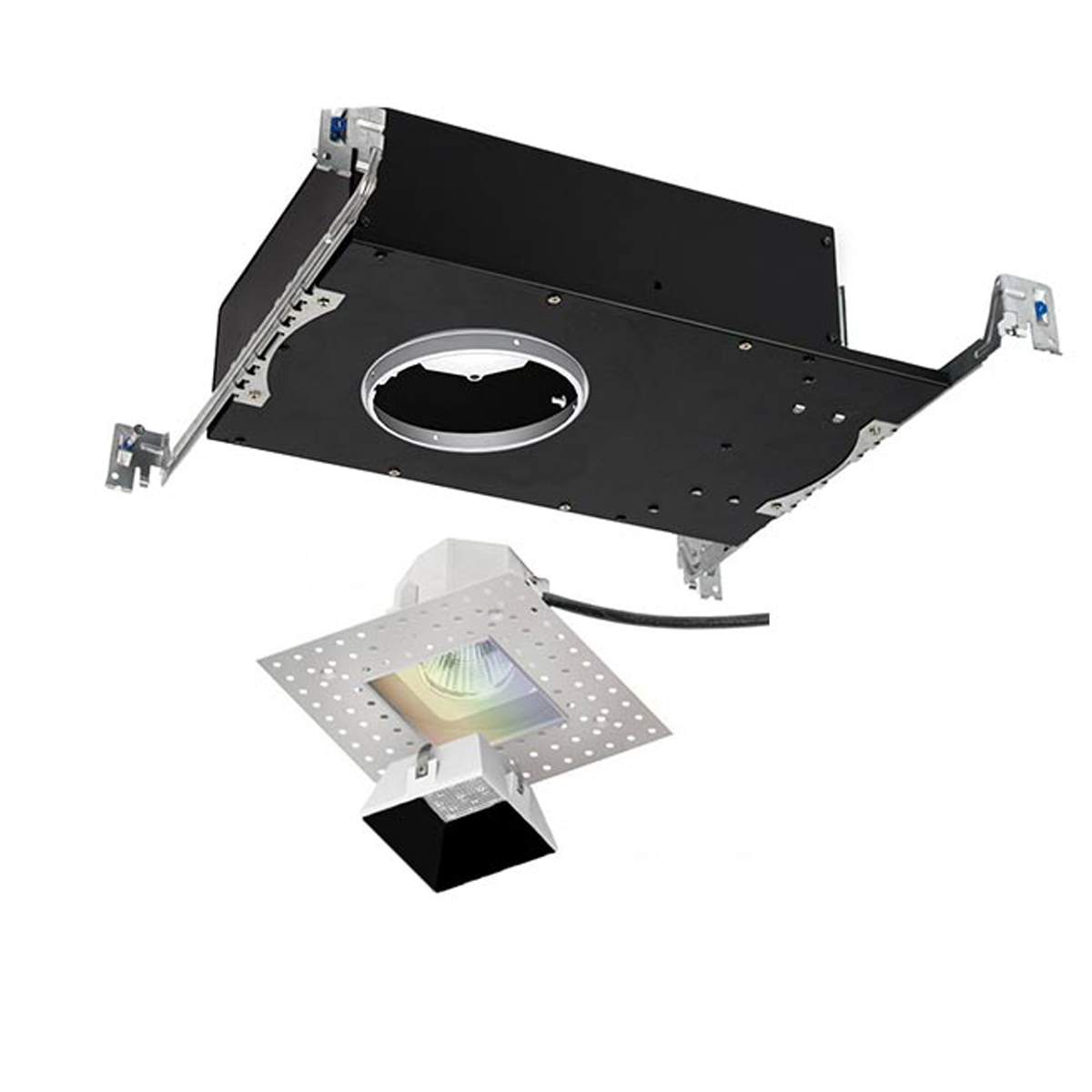

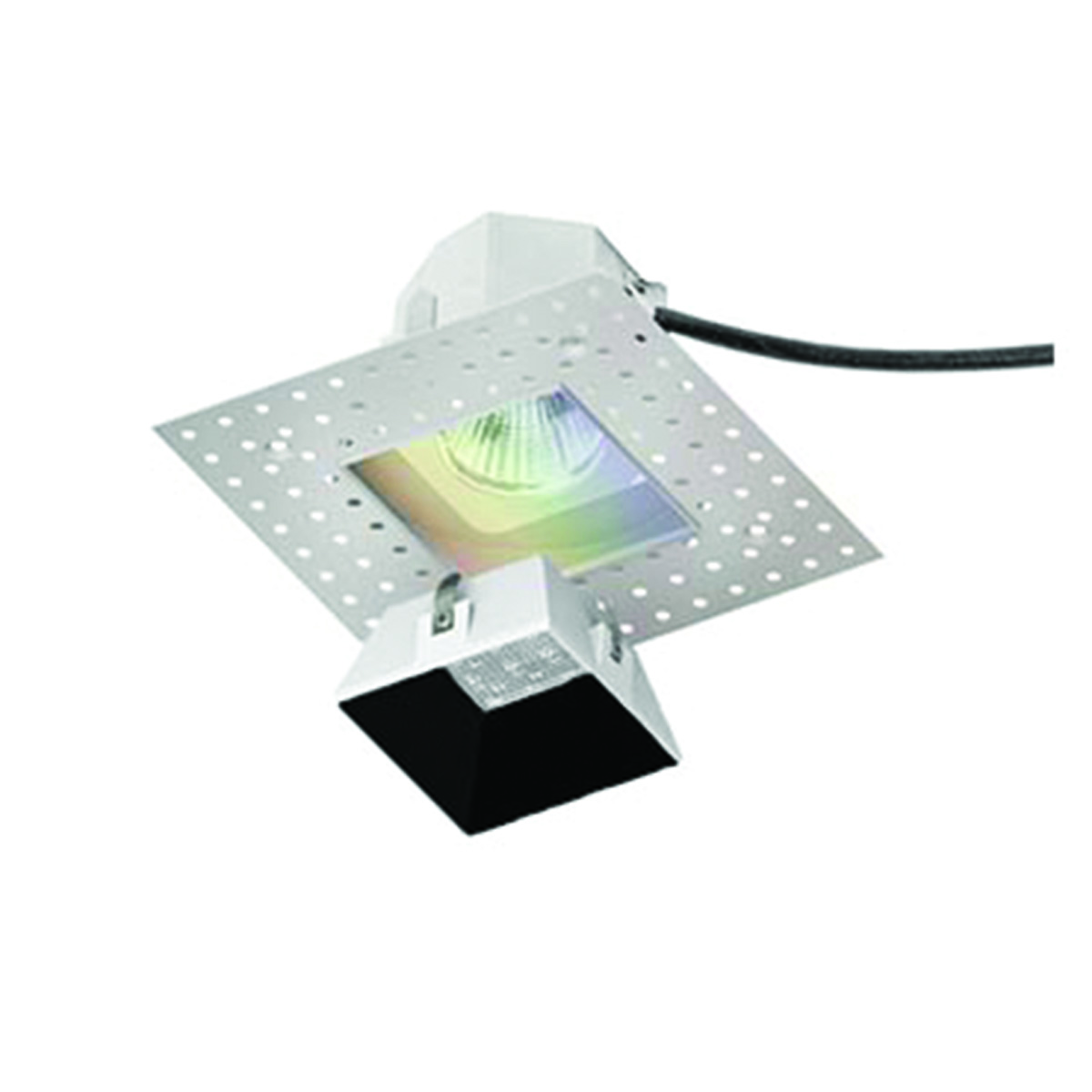

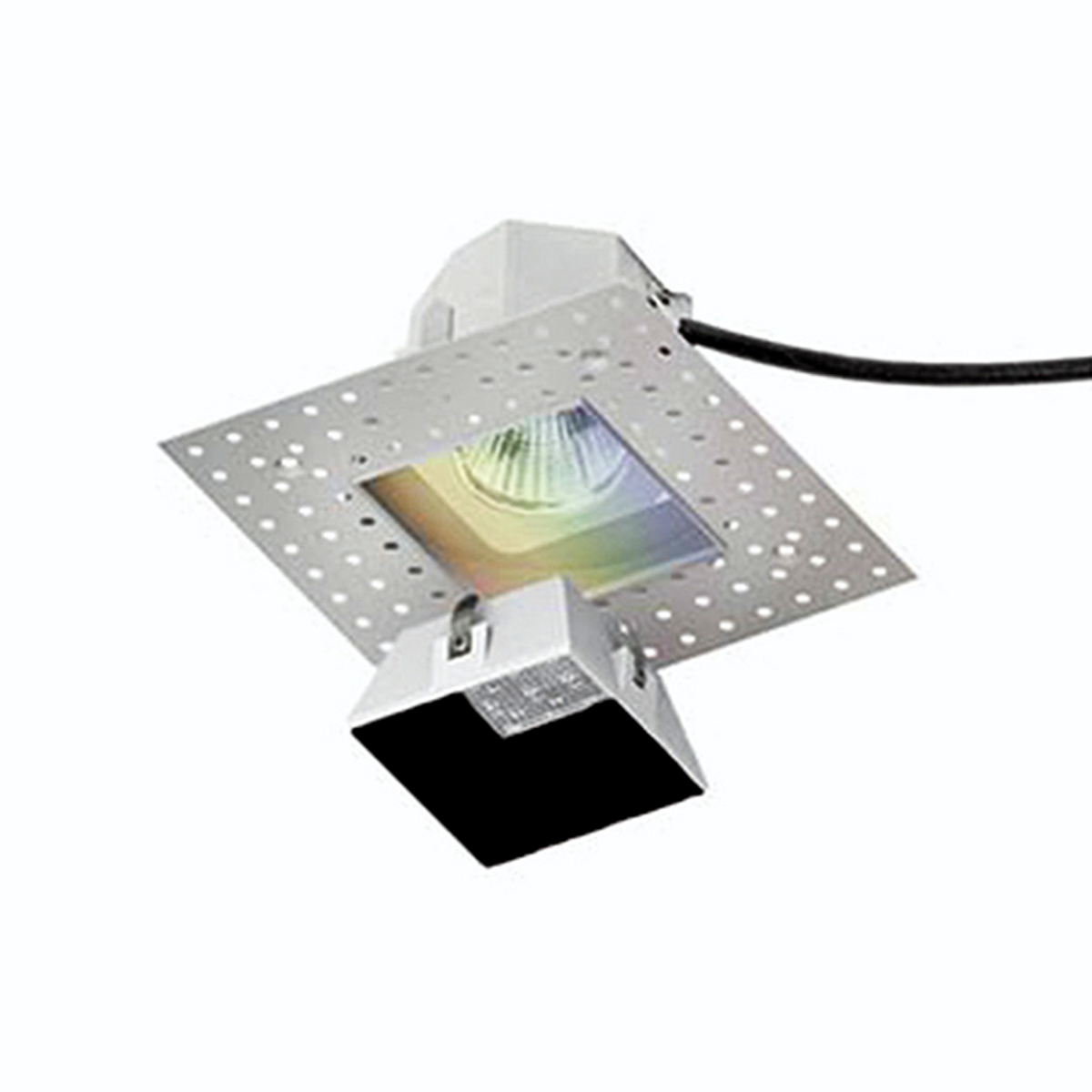

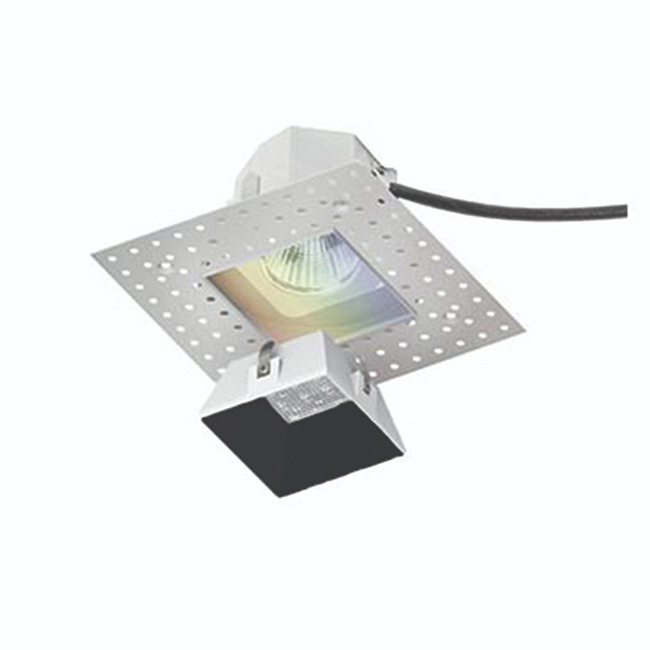

AURORA 3.5IN HIGH OUTPUT DOWNLIGHT TRIMLESS SQUARE WITH HOUSING

Aurora 3.5IN Color Changing is a high-performance recessed downlight with a state-of-the-art color and CCT tuning LED controlled by DMX-512A and 0-10V technology. Available in a variety of trim options including a sleek trimless option which can be spackled directly up to the aperture. At 3.5IN in housing height, Aurora is designed to fit the most difficult tight plenum spaces.

  • Shallow housing that is designed to fit in tight plenum spaces without sacrificing lumen output
  • 3.5" trim aperture and 3.5" housing height
  • Full color gamut control through gradients of saturated colors from 1-100%
  • Tunable White (CCT) Range: 1650-8000K
  • 35° cut-off angle for downlight
  • DMX512-A CCT and color control with commissioning via RDM; dimming via DMX-512A or 0-10V
  • Dimming: 100%-1% intensity control in CCT & color via DMX or 0-10V
  • Sold as a complete unit; housing and trim included
  • Sold as a complete unit; housing, trimless spackle flange, and bevel included
  • Integrates with 3rd party controls systems via ABiCUS Gateway
thumbnail-image
thumbnail-image
thumbnail-image
thumbnail-image
thumbnail-image
thumbnail-image
product-slide
product-slide
product-slide
product-slide
product-slide
product-slide

Specifications Retired

Order Number: A1RD-D571F-CCBK
model beam color temp & cri lumens cbcp finish
A1RD-D571
F - 48°
N - 48°
3 - 48°
CC - R, G, B, 1650K-8000K - 90
1025
1519
BK - Black
BKWT - Black/White
HZ - Haze
HZWT - Haze/White
WT - White

Components

Accessories


ABICUS DMX / IP GATEWAY

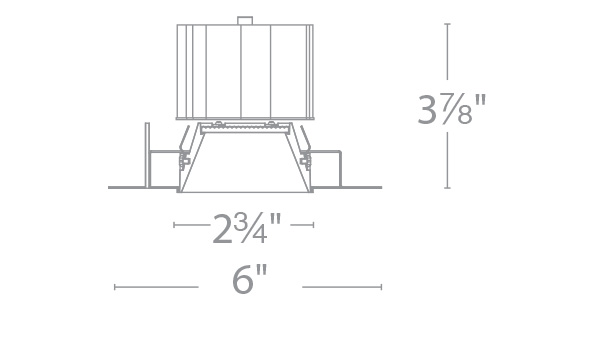

LINE DRAWING

line-drawing
  • FEATURES
  • CERTIFICATIONS
  • CCT
  • Shallow housing that is designed to fit in tight plenum spaces without sacrificing lumen output
  • 3.5" trim aperture and 3.5" housing height
  • Full color gamut control through gradients of saturated colors from 1-100%
  • Tunable White (CCT) Range: 1650-8000K
  • 35° cut-off angle for downlight
  • DMX512-A CCT and color control with commissioning via RDM; dimming via DMX-512A or 0-10V
  • Dimming: 100%-1% intensity control in CCT & color via DMX or 0-10V
  • Sold as a complete unit; housing and trim included
  • Sold as a complete unit; housing, trimless spackle flange, and bevel included
  • Integrates with 3rd party controls systems via ABiCUS Gateway
etl, cetlwet

cct-image

×
