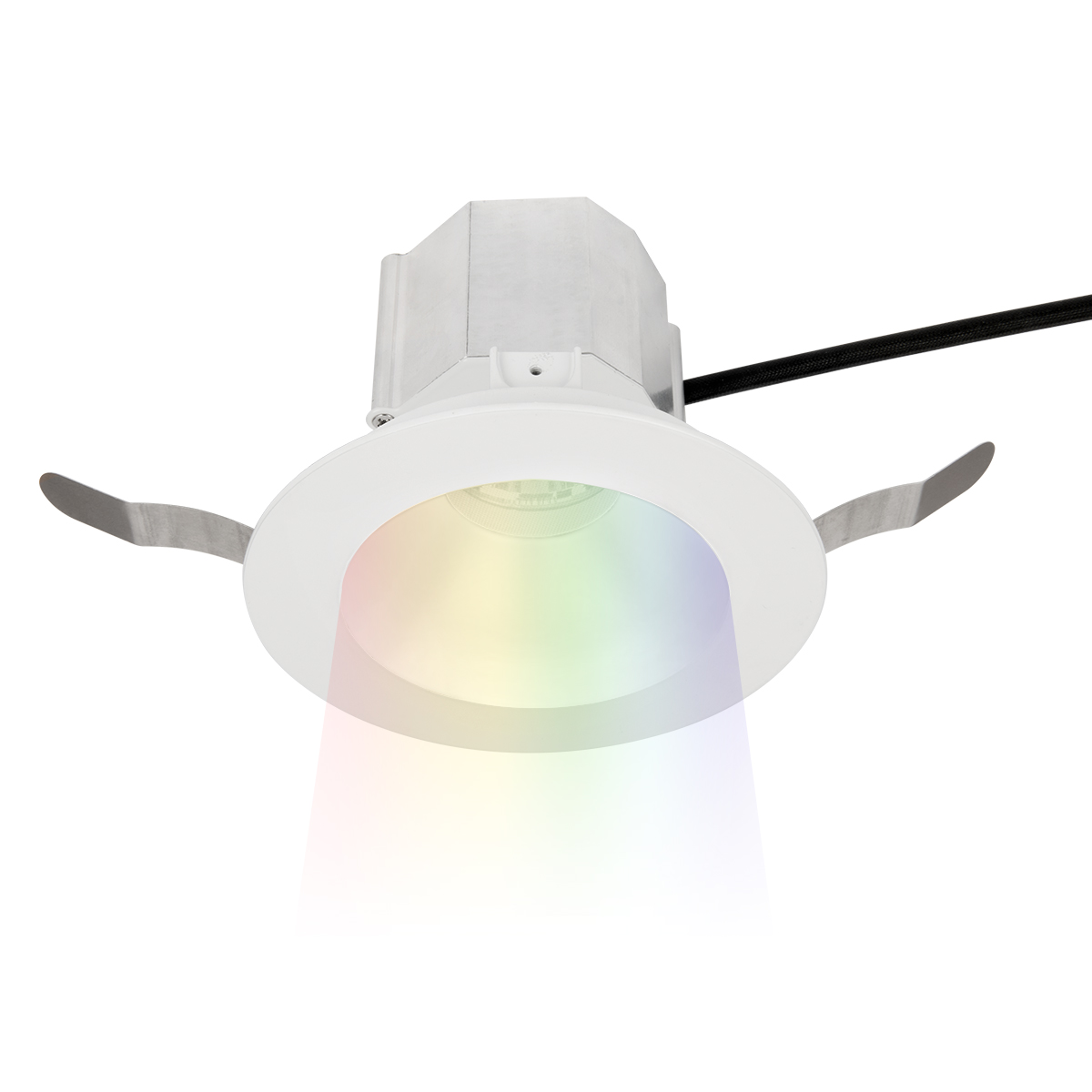

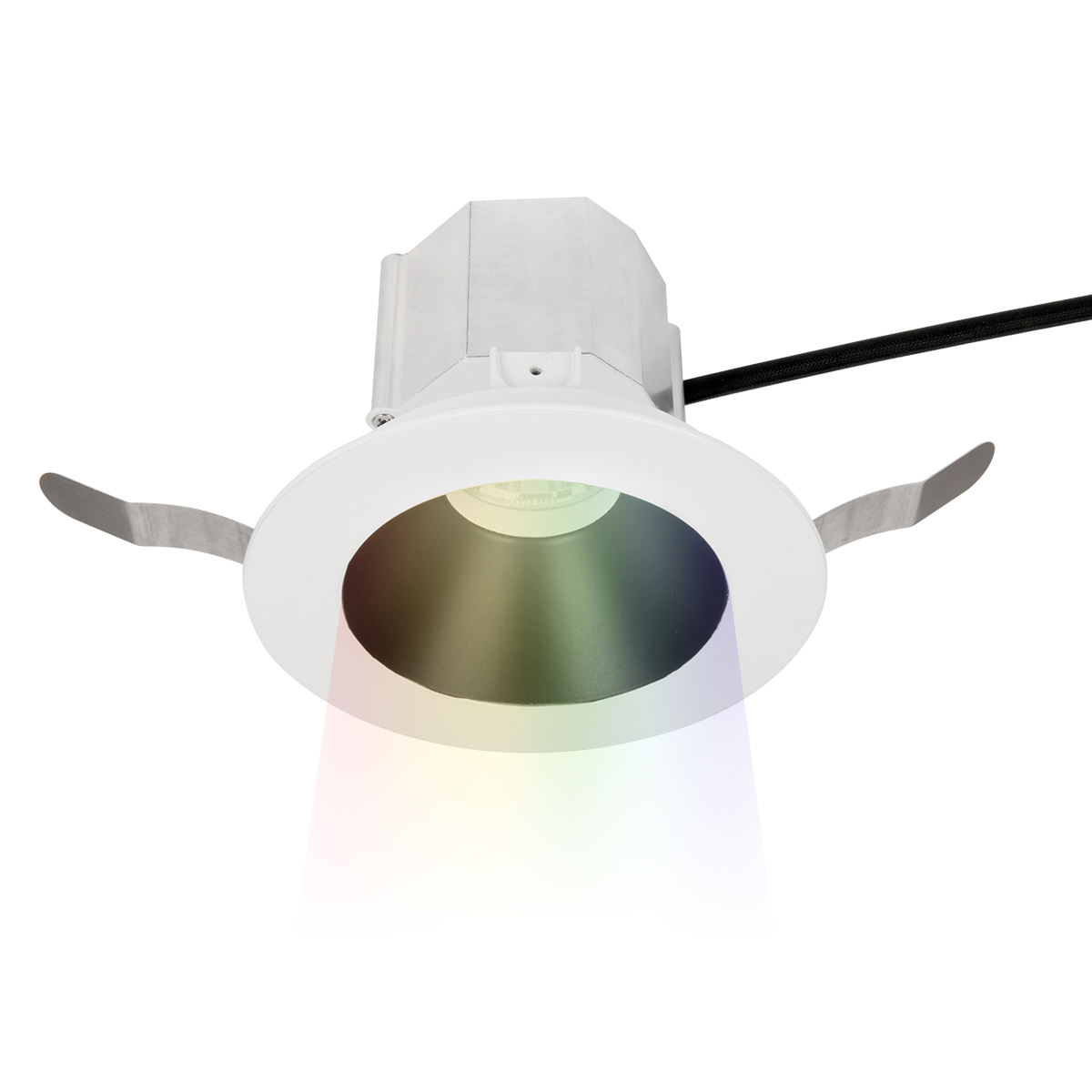

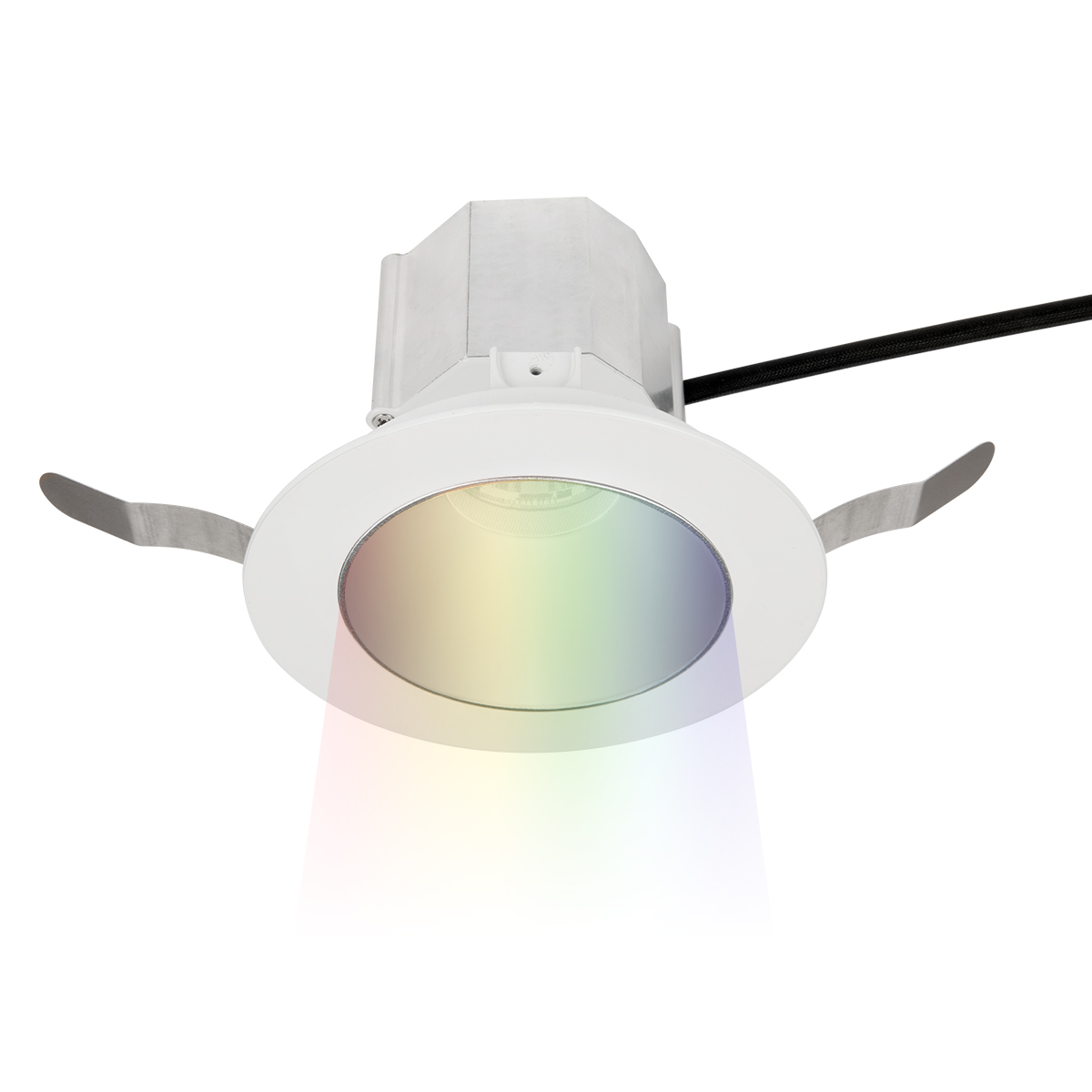

AURORA 3.5IN HIGH OUTPUT DOWNLIGHT TRIMMED ROUND WITH HOUSING

Aurora 3.5IN Color Changing LED is a high-performance recessed downlight with ilumenight enabled technology. ilumenight™ Bluetooth enabled – a free IOS ilumenight app that allows you to control the color and brightness of your downlights all with the touch of a finger on your smartphone or tablet device. Available in a variety of trim options including a sleek trimless option which can be spackled directly up to the aperture. At 3.5IN in housing height, Aurora is designed to fit the most difficult tight plenum spaces.

  • Shallow housing that is designed to fit in tight plenum spaces without sacrificing lumen output
  • Full color gamut control through gradients of saturated colors from 1-100%
  • 3.5" trim aperture and 3.5" housing height
  • 35° cut-off angle for downlight
  • Bluetooth v4.0 control via ilumenight™ iOS App for localized (within 150ft line of sight) groups of 8 luminaires or less
  • DMX512-A with advanced commissioning via Bluetooth, DMX512-A hardwire recommended for high wireless signal interference environments
  • Tunable White (CCT) Range: 1650-8000K
  • Sold as a complete unit; housing and trim included
thumbnail-image
thumbnail-image
thumbnail-image
product-slide
product-slide
product-slide

Specifications

Order Number: A1RD-D461F-CCBKWT
model beam color temp & cri lumens cbcp finish
A1RD-D461
F - 48°
CC - R, G, B, 1650K-8000K - 90
1020
1484
BKWT - Black/White
HZWT - Haze/White
WT - White

Components

Accessories

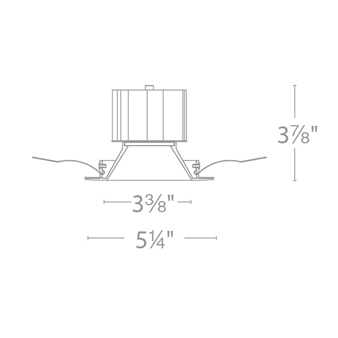

LINE DRAWING

line-drawing
  • FEATURES
  • CERTIFICATIONS
  • CCT
  • Shallow housing that is designed to fit in tight plenum spaces without sacrificing lumen output
  • Full color gamut control through gradients of saturated colors from 1-100%
  • 3.5" trim aperture and 3.5" housing height
  • 35° cut-off angle for downlight
  • Bluetooth v4.0 control via ilumenight™ iOS App for localized (within 150ft line of sight) groups of 8 luminaires or less
  • DMX512-A with advanced commissioning via Bluetooth, DMX512-A hardwire recommended for high wireless signal interference environments
  • Tunable White (CCT) Range: 1650-8000K
  • Sold as a complete unit; housing and trim included
etl, cetlwet

cct-image
