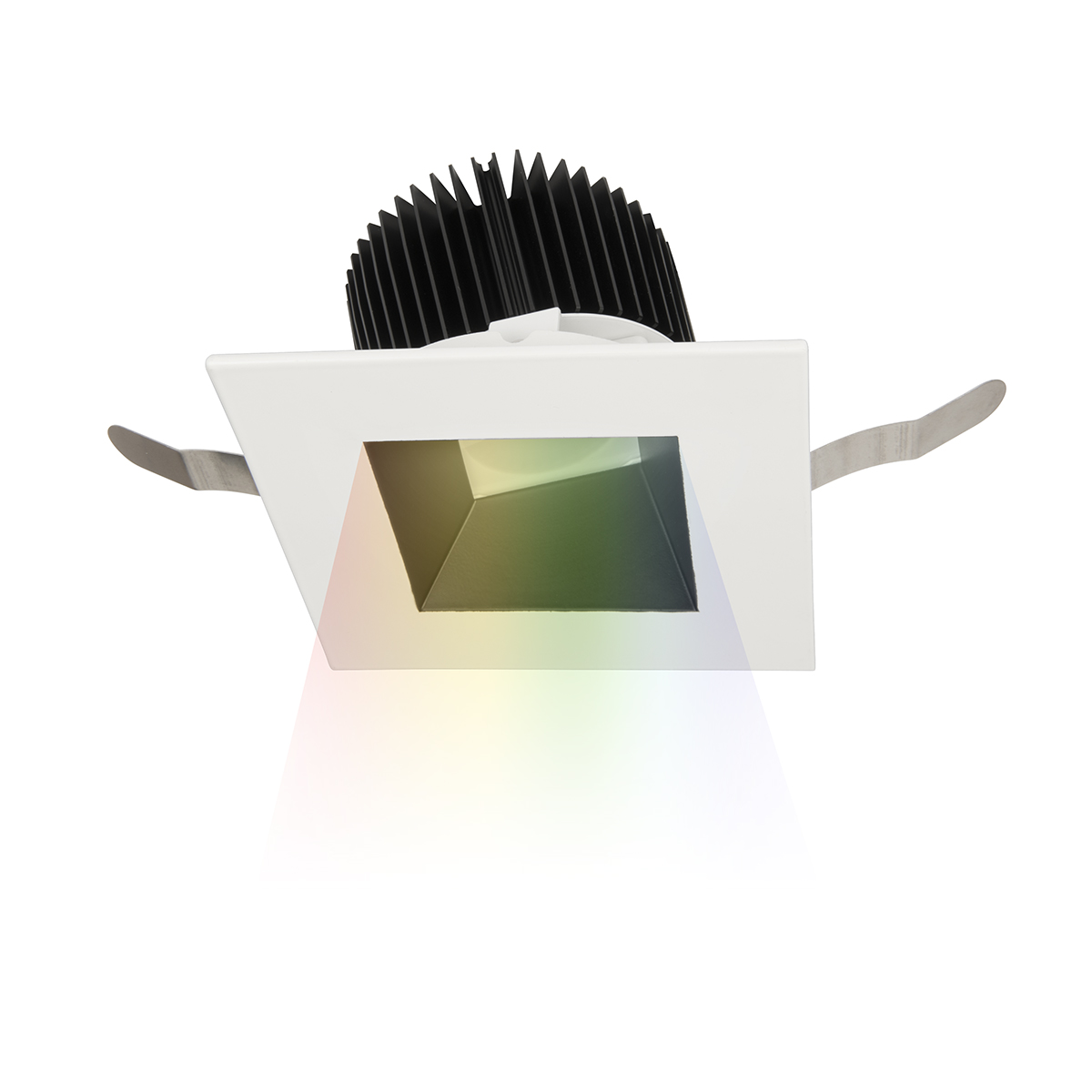

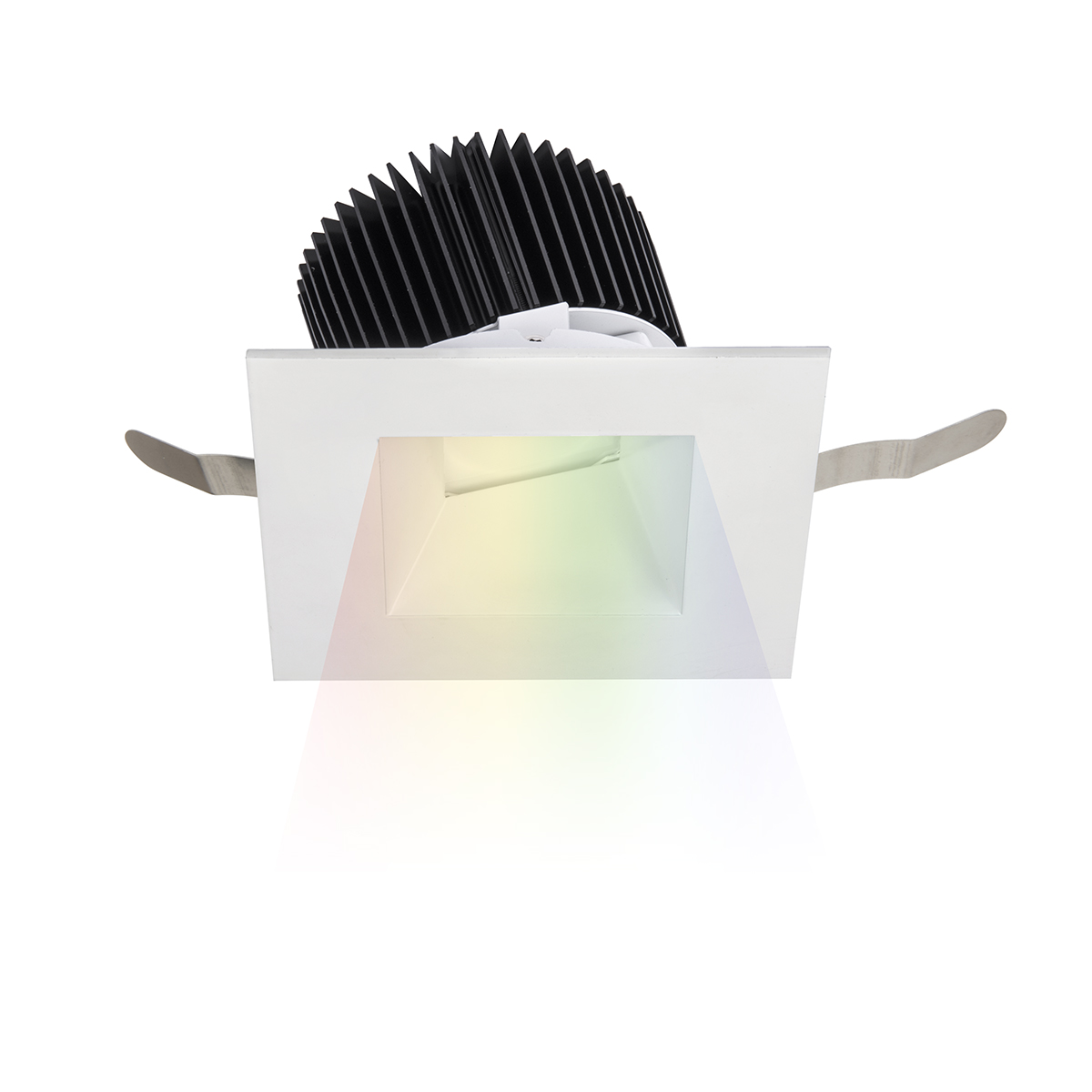

AURORA 3.5IN WALL WASH TRIMMED SQUARE WITH HOUSING

Aurora 3.5IN Color Changing LED is a high-performance recessed downlight with ilumenight enabled technology. ilumenight™ Bluetooth enabled – a free IOS ilumenight app that allows you to control the color and brightness of your downlights all with the touch of a finger on your smartphone or tablet device. Available in a variety of trim options including a sleek trimless option which can be spackled directly up to the aperture. At 3.5IN in housing height, Aurora 3.5IN is designed to fit the most difficult tight plenum spaces.

Shallow housing that is designed to fit in tight plenum spaces without sacrificing lumen output
Full color gamut control through gradients of saturated colors from 1-100%
Tunable White (CCT) Range: 1650-8000K
Bluetooth v4.0 control via ilumenight™ iOS App for localized (within 150ft line of sight) groups of 8 luminaires or less
DMX512-A with advanced commissioning via Bluetooth, DMX512-A hardwire recommended for high wireless signal interference environments
Dimming: 100%-1% in CCT & color via DMX or Bluetooth control

Specifications

Order Number: A1RD-W562A-CCBKWT

model	beam	color temp & cri	lumens	finish
A1RD-W562	A - Asym	CC - R, G, B, 1650K-8000K - 90	515	BKWT - Black/White HZWT - Haze/White WT - White

Components

Accessories

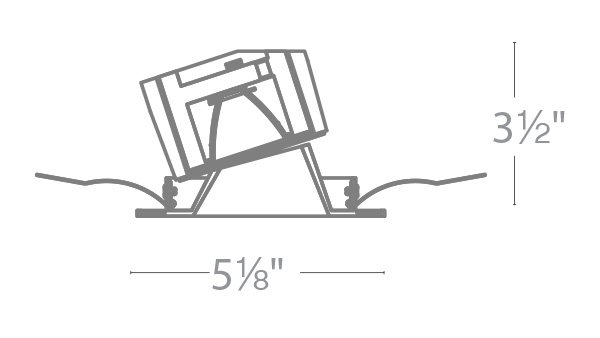

LINE DRAWING

FEATURES
CERTIFICATIONS
CCT

Shallow housing that is designed to fit in tight plenum spaces without sacrificing lumen output
Full color gamut control through gradients of saturated colors from 1-100%
Tunable White (CCT) Range: 1650-8000K
Bluetooth v4.0 control via ilumenight™ iOS App for localized (within 150ft line of sight) groups of 8 luminaires or less
DMX512-A with advanced commissioning via Bluetooth, DMX512-A hardwire recommended for high wireless signal interference environments
Dimming: 100%-1% in CCT & color via DMX or Bluetooth control

cct-image
