AURORA BARREL 5IN CEILING MOUNT

Aurora Barrel features state of the art LED color and CCT tuning technology. Controlled via DMX-512A input with pendant, ceiling, and wall mounting options, the Aurora Barrel provides top-notch illumination for both interior and exterior spaces.

  • Full color gamut control through gradients of saturated colors from 1-100%
  • Tunable White (CCT) Range: 1650-8000K
  • DMX512-A CCT and color control with commissioning via RDM; dimming via DMX-512A
  • Dimming: 100%-1% intensity control in CCT & color via DMX
  • Integrates with 3rd party controls systems via ABiCUS Gateway
thumbnail-image
thumbnail-image
thumbnail-image
thumbnail-image
thumbnail-image
product-slide
product-slide
product-slide
product-slide
product-slide

Specifications Retired

Order Number: A1W-4S-F-CCBK
model & size beam color temp & cri lumens cbcp finish
A1W-4S - 5"
S - 15°
N - 25°
F - 30°
CC - R, G, B, 1650K-8000K - 90
620
1386
BK - Black
BZ - Bronze
GH - Graphite
WT - White

Components

Accessories


ABICUS DMX / IP GATEWAY

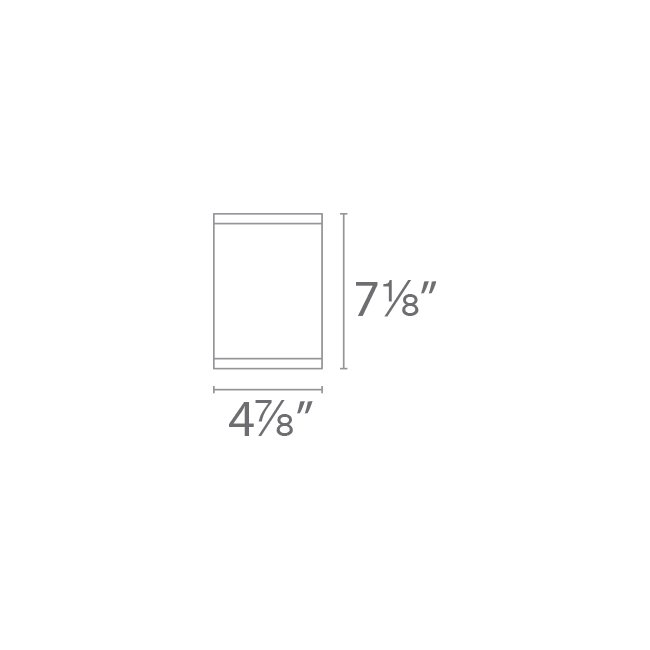

LINE DRAWING

line-drawing
  • FEATURES
  • CERTIFICATIONS
  • CCT
  • Full color gamut control through gradients of saturated colors from 1-100%
  • Tunable White (CCT) Range: 1650-8000K
  • DMX512-A CCT and color control with commissioning via RDM; dimming via DMX-512A
  • Dimming: 100%-1% intensity control in CCT & color via DMX
  • Integrates with 3rd party controls systems via ABiCUS Gateway
ip65etl, cetlwet

cct-image

×
