DMX TO ELV DIMMING CONTROLLER

The A2C01 dimming controller bridges digital DMX controls with analog lighting fixtures, controlling up to 300W of reverse phase dimmable loads. Mountable to electrical juntion boxes.

  • Converts single channel DMX input to reverse phase (ELV) dimmed output for one or several lighting loads
  • Remote Configuration via RDM: Enables remote configuration and DMX address setting through Remote Device Management (RDM), enhancing convenience and flexibility
  • Dimming Curve Adjustment: Provides the ability to adjust the dimming curve, allowing users to customize the lighting experience to their preference
  • DMX Termination Switch: Equipped with a DMX termination switch, simplifying the termination of the DMX signal at the end of the line and aiding in signal integrity
  • Override Button: Includes an override button that can be used to manually turn the output on/off in case of DMX signal interruption or loss, ensuring uninterrupted functionality
  • Centralized DMX control integration via AiSPiRE ABiCUS DMX Gateway
thumbnail-image
thumbnail-image
thumbnail-image
thumbnail-image
thumbnail-image
thumbnail-image
product-slide
product-slide
product-slide
product-slide
product-slide
product-slide

Specifications

Order Number: A2C01
model & product
A2C01 - DMX TO ELV DIMMING CONTROLLER

Components

Accessories

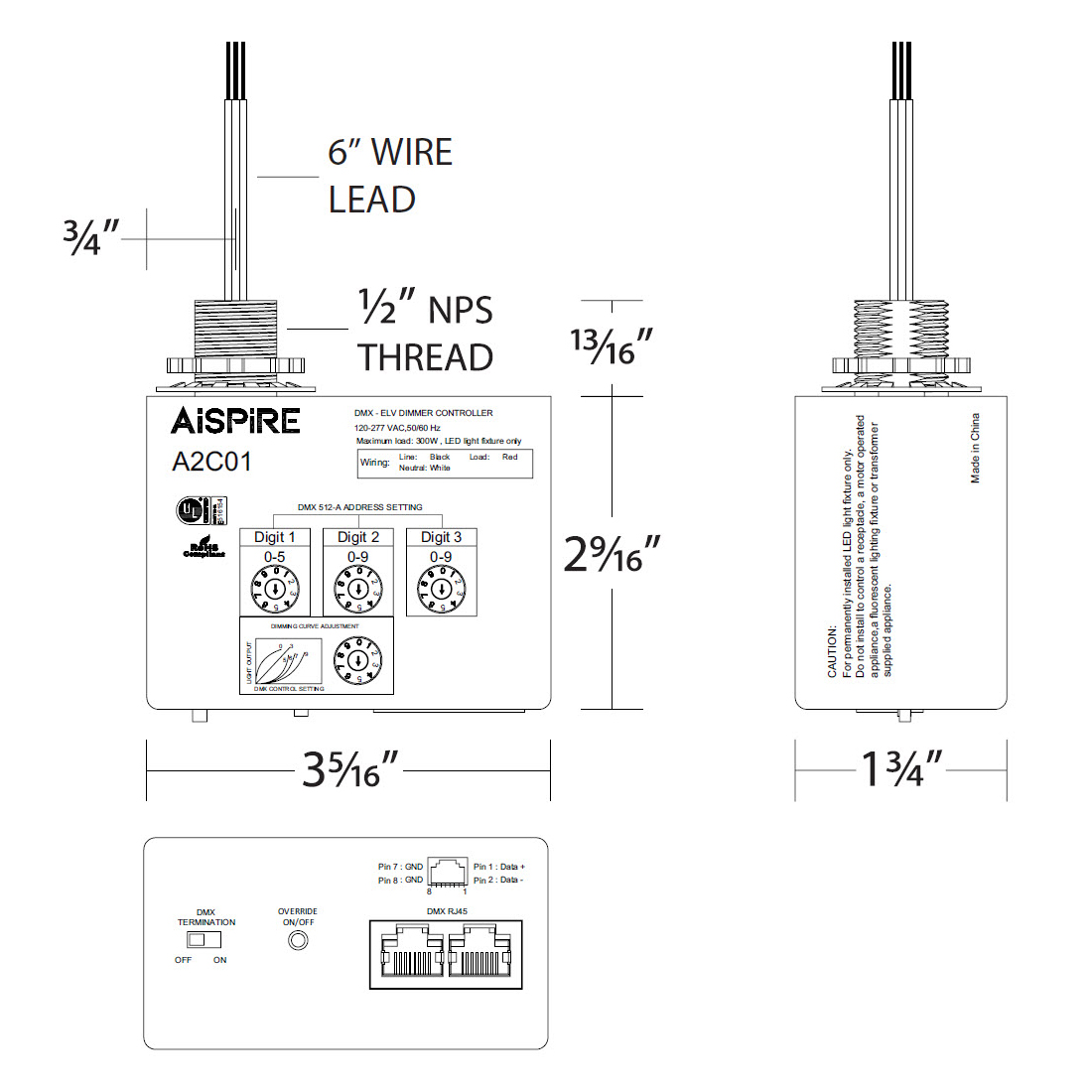

LINE DRAWING

line-drawing
  • FEATURES
  • CERTIFICATIONS
  • Converts single channel DMX input to reverse phase (ELV) dimmed output for one or several lighting loads
  • Remote Configuration via RDM: Enables remote configuration and DMX address setting through Remote Device Management (RDM), enhancing convenience and flexibility
  • Dimming Curve Adjustment: Provides the ability to adjust the dimming curve, allowing users to customize the lighting experience to their preference
  • DMX Termination Switch: Equipped with a DMX termination switch, simplifying the termination of the DMX signal at the end of the line and aiding in signal integrity
  • Override Button: Includes an override button that can be used to manually turn the output on/off in case of DMX signal interruption or loss, ensuring uninterrupted functionality
  • Centralized DMX control integration via AiSPiRE ABiCUS DMX Gateway
ul, culdamp
