QUARTUS ATMOSPHERE 4IN ADJUSTABLE TRIMMED SQUARE

"QUARTUS ATMOSPHERE recessed luminaires merge quality and value with the latest tunable white technology to demonstrate the beauty and power of 90 CRI illumination. The 4” aperture size " " features a robust lumen output for larger spaces with higher ceilings. The fixtures are also ideal for sunrise/sunset scenes, as well as accenting artwork, furniture and architectural decor while cr " personalized and meaningful experiences for your clients."

  • Operating Temp: -4°F to 104°F (-20°C to 40°C)
  • Two-piece die-cast construction
  • Light engine mounted on trim with springs for easy replacement
  • 0-45° vertical tilting and 365° horizontal rotation
  • Center beam alignment retained throughout adjustment range
  • Field changeable beam angle with reflectors provided
  • Accepts one Lens or glare control accessory
  • Refer to specification sheet for lumens and CBCP data
thumbnail-image
thumbnail-image
thumbnail-image
thumbnail-image
thumbnail-image
product-slide
product-slide
product-slide
product-slide
product-slide

Specifications

Order Number: A1RT-A56M-C2BK
model color temp & cri max lumens max cbcp finish
A1RT-A56M
C2 - 1800K - 4000K - 90
1200
3915
BK - Black
DB - Dark Bronze
HZWT - Haze/White
WT - White

Components


QUARTUS ATMOSPHERE 4IN


QUARTUS ATMOSPHERE 4IN

Accessories

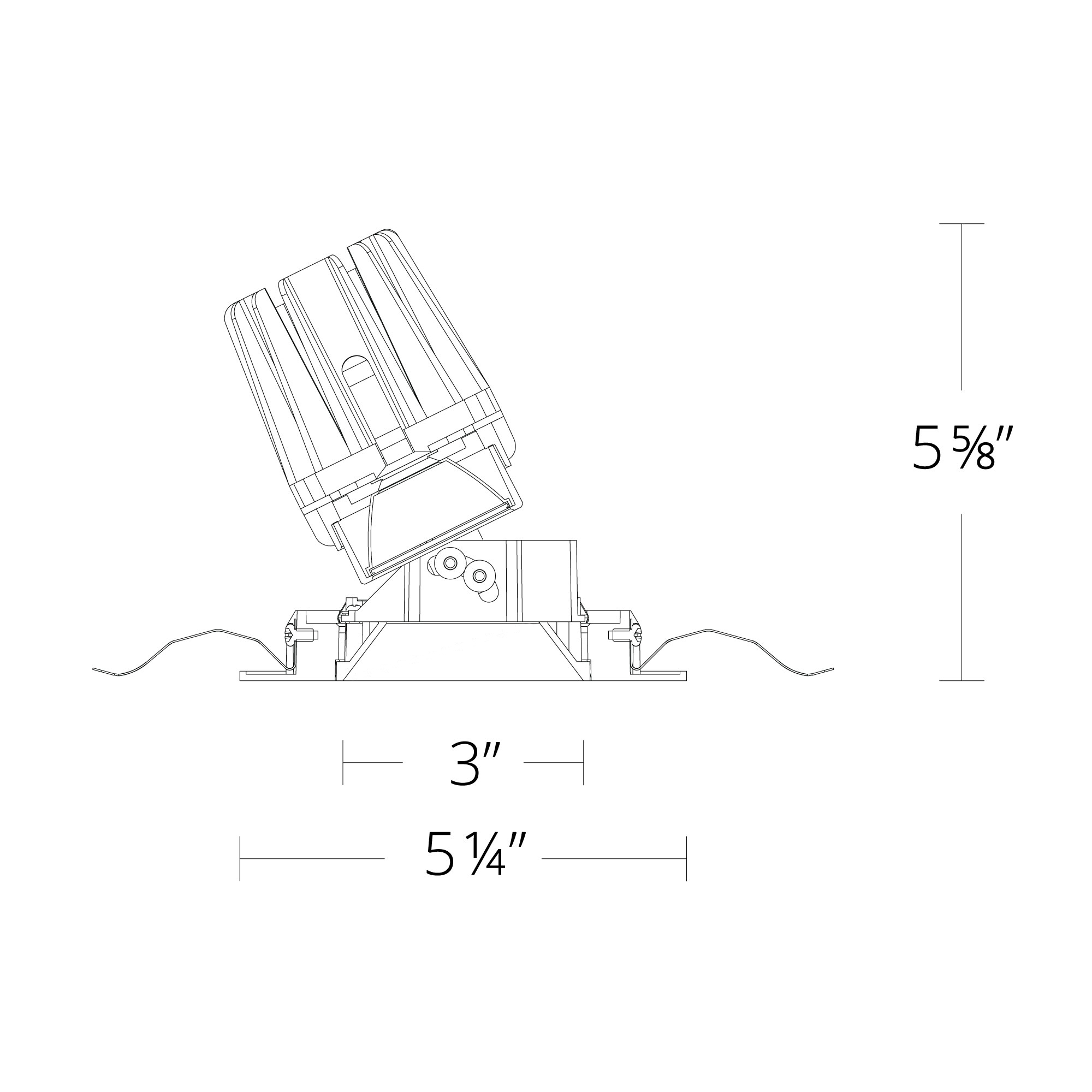

LINE DRAWING

line-drawing
  • FEATURES
  • CERTIFICATIONS
  • CCT
  • Operating Temp: -4°F to 104°F (-20°C to 40°C)
  • Two-piece die-cast construction
  • Light engine mounted on trim with springs for easy replacement
  • 0-45° vertical tilting and 365° horizontal rotation
  • Center beam alignment retained throughout adjustment range
  • Field changeable beam angle with reflectors provided
  • Accepts one Lens or glare control accessory
  • Refer to specification sheet for lumens and CBCP data
etl, cetldamp

cct-image

×
