QUARTUS AURORA 4IN ADJUSTABLE TRIMLESS ROUND

"Full Visible Spectrum color-tuning LEDs feature improved efficacy and lumens, as well as refined optical technology that offers human-centric recessed downlighting, catering to the needs of the " " modern technologist and integrator. Choose any color you can imagine, including the crispest white light or the softest pastel, with the ability to control gradients of saturated colors and " " a Tunable White CCT range from 1800-6500K."

  • Operating Temp: -4°F to 104°F (-20°C to 40°C)
  • Two-piece die-cast construction
  • Light engine mounted on trim with springs for easy replacement
  • 0-45° vertical tilting and 365° horizontal rotation
  • Center beam alignment retained throughout adjustment range
  • RGB color gamut with a CCT range of 1800K-6500K
  • Field changeable beam angle with reflectors provided
  • Accepts one Lens or glare control accessory
  • Refer to specification sheet for lumens and CBCP data

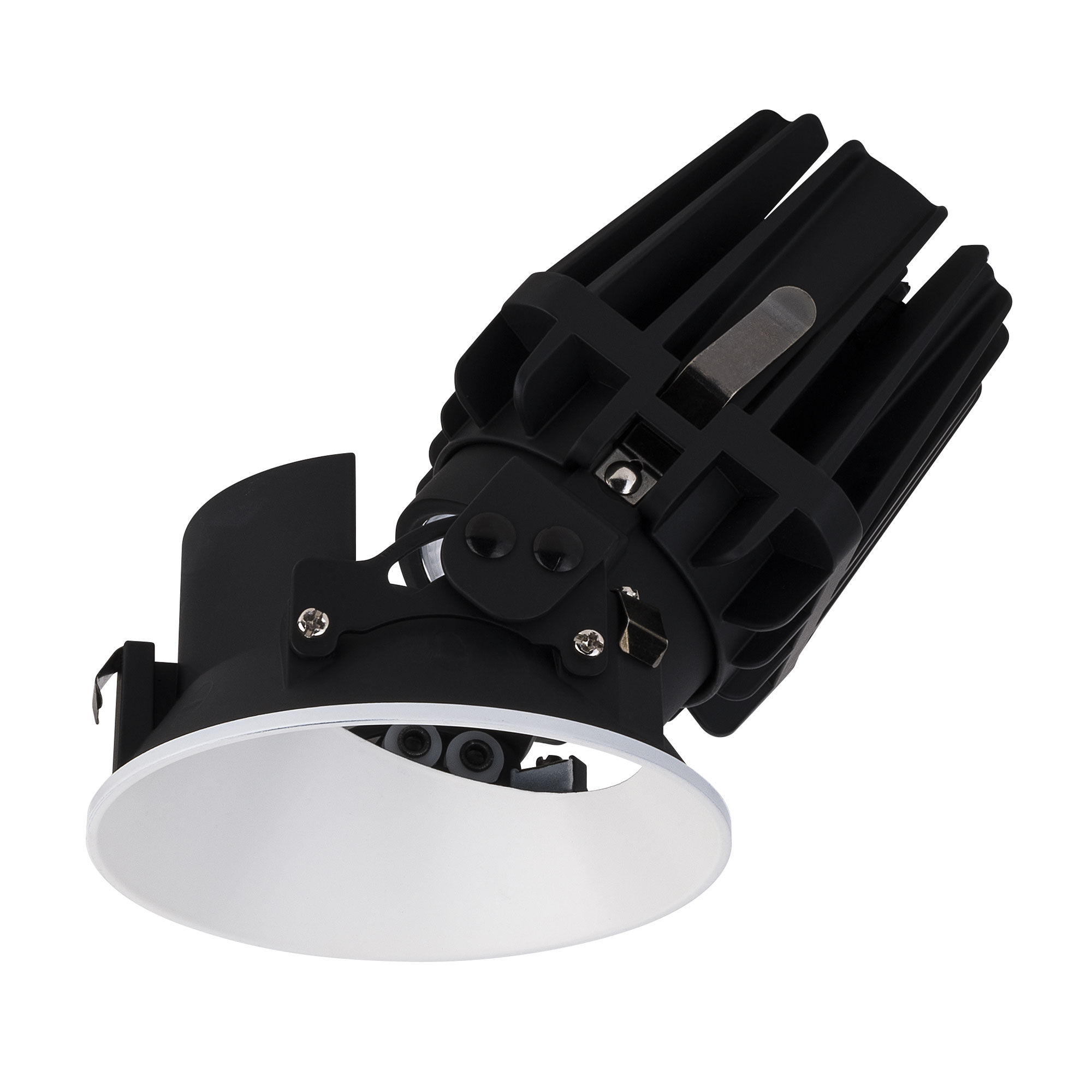

thumbnail-image

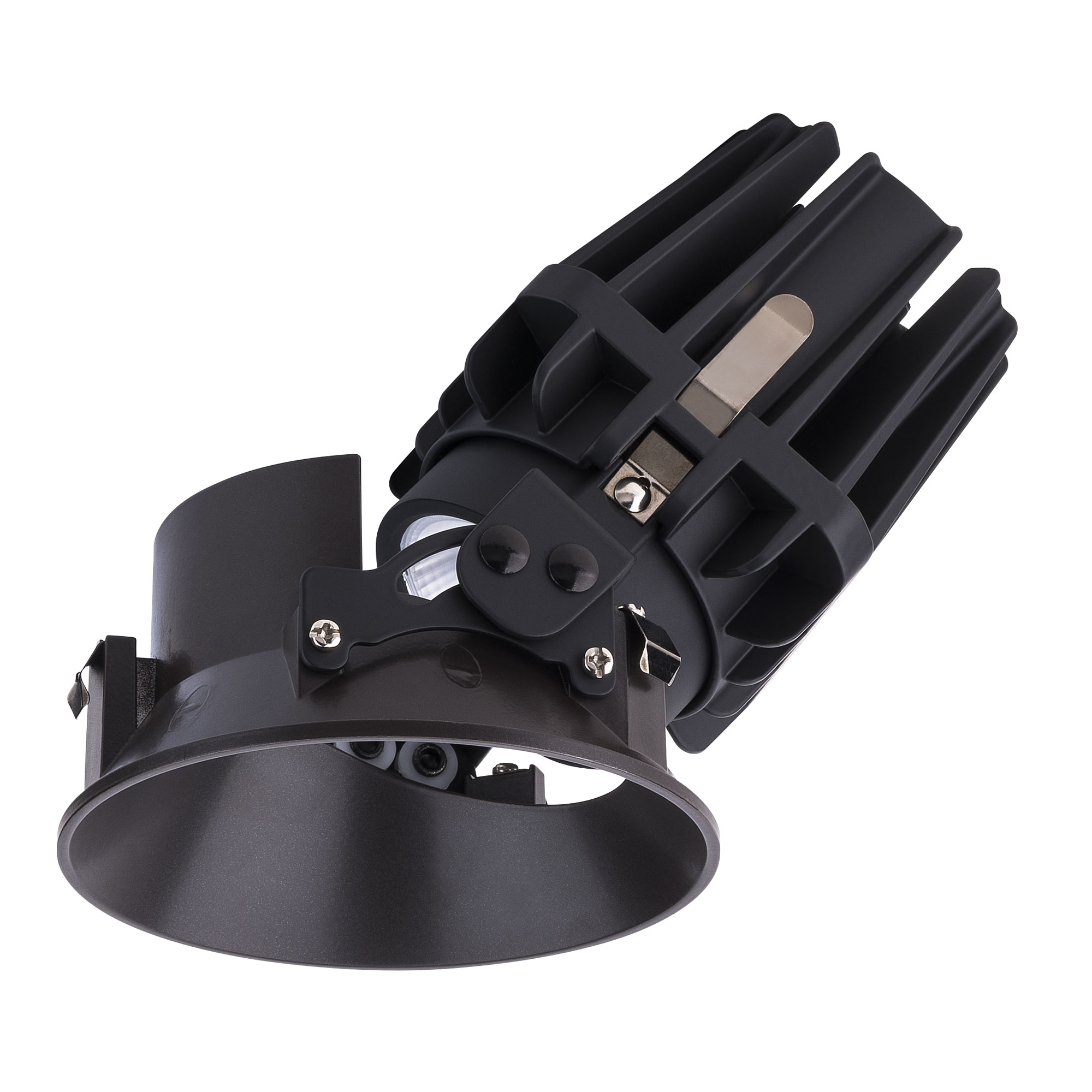

thumbnail-image

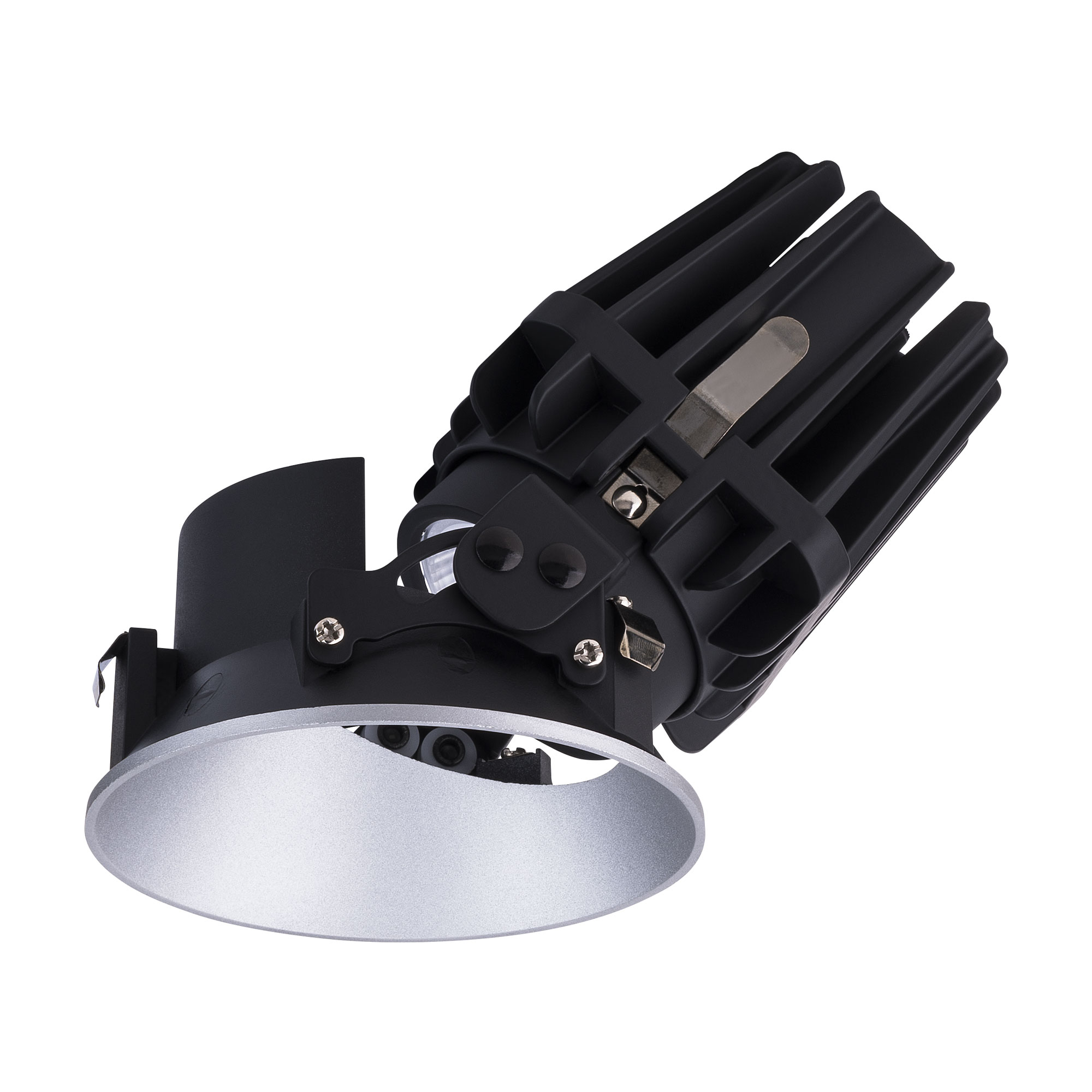

thumbnail-image

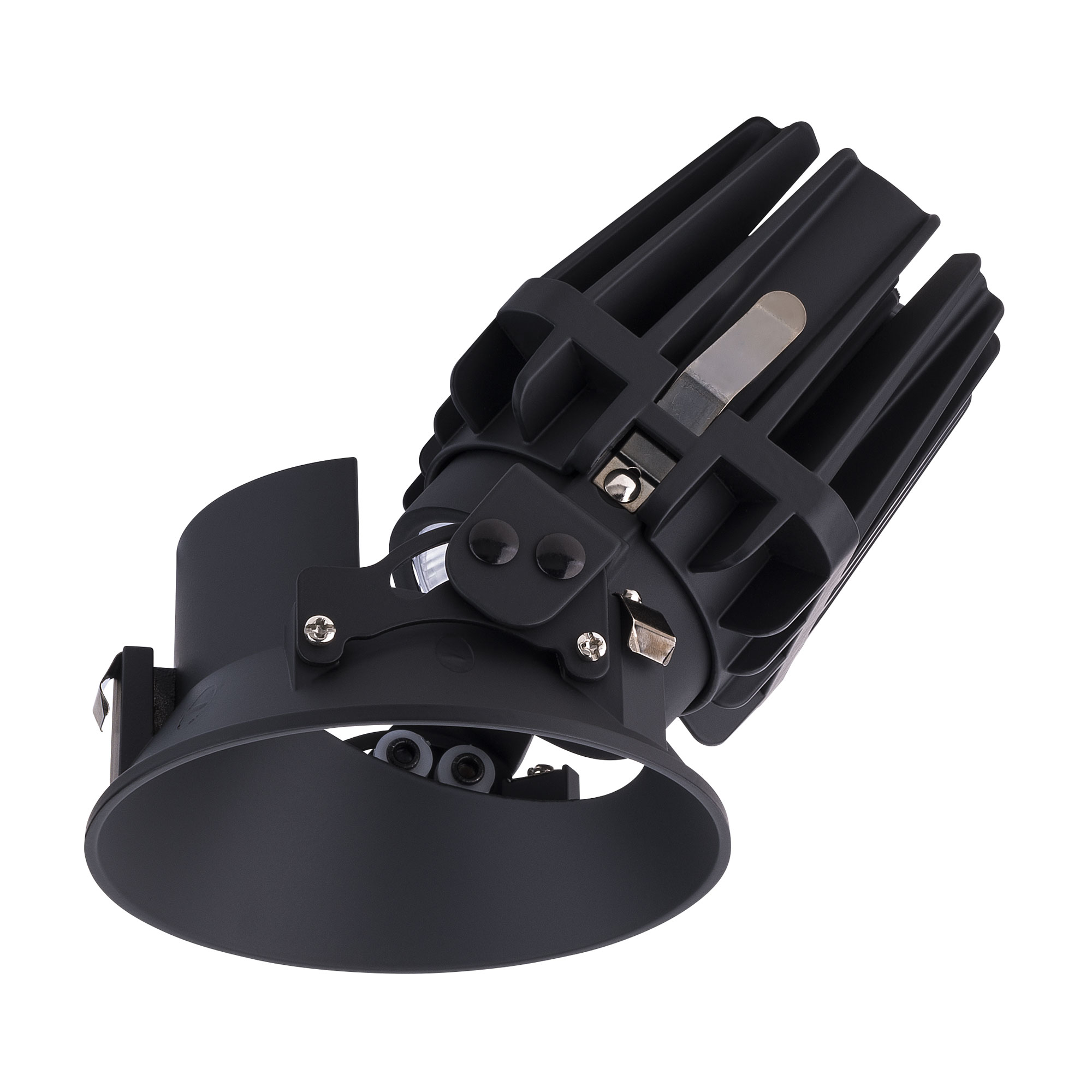

thumbnail-image
thumbnail-image
product-slide
product-slide
product-slide
product-slide
product-slide

Specifications

Order Number: A1RT-A47M-CCBK
model color temp & cri max lumens max cbcp finish
A1RT-A47M
CC - R, G, B, 1800K - 6500K - 90
1065
2760
BK - Black
DB - Dark Bronze
HZ - Haze
WT - White

Components


QUARTUS AURORA 4IN


QUARTUS AURORA 4IN

Accessories

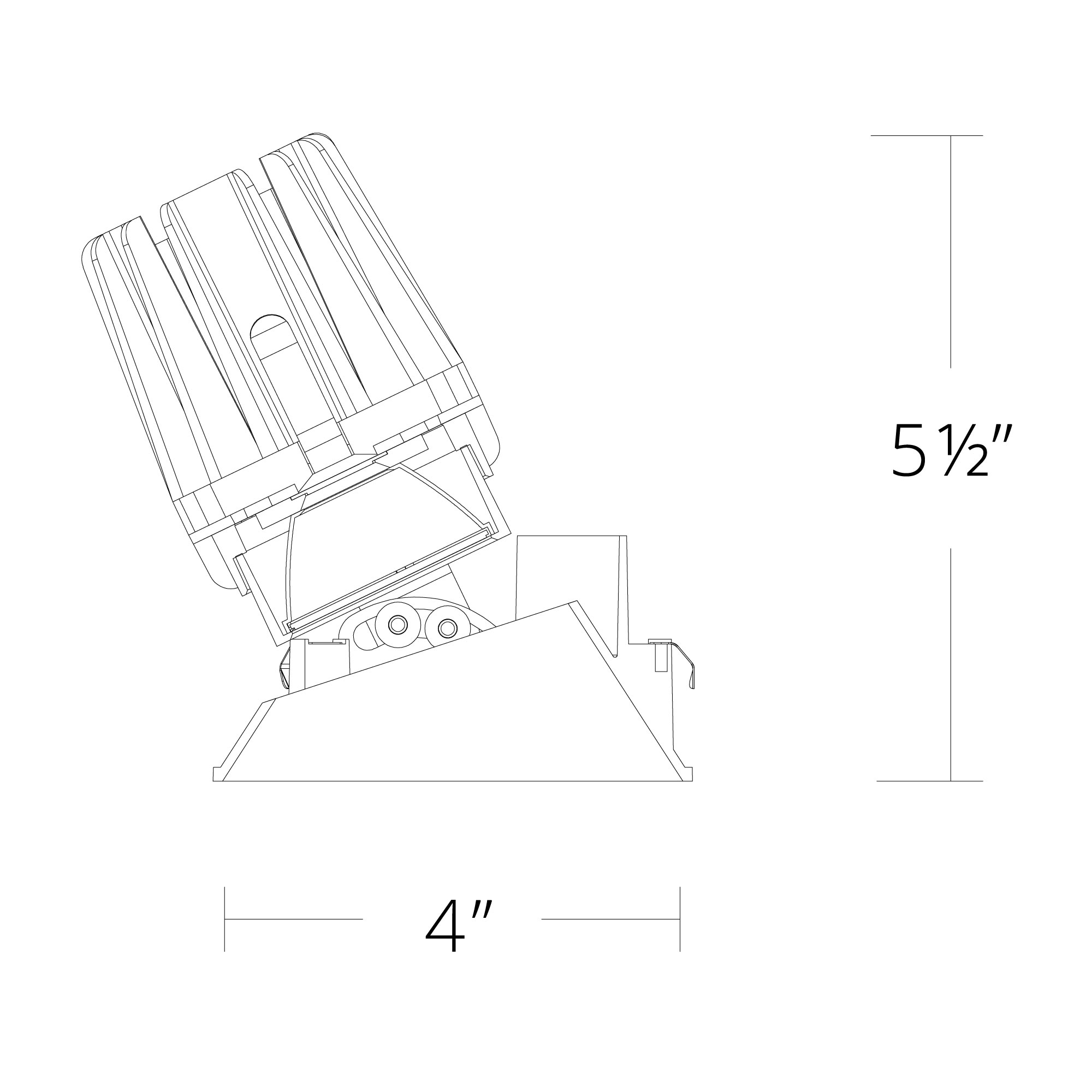

LINE DRAWING

line-drawing
  • FEATURES
  • CERTIFICATIONS
  • CCT
  • Operating Temp: -4°F to 104°F (-20°C to 40°C)
  • Two-piece die-cast construction
  • Light engine mounted on trim with springs for easy replacement
  • 0-45° vertical tilting and 365° horizontal rotation
  • Center beam alignment retained throughout adjustment range
  • RGB color gamut with a CCT range of 1800K-6500K
  • Field changeable beam angle with reflectors provided
  • Accepts one Lens or glare control accessory
  • Refer to specification sheet for lumens and CBCP data
etl, cetldamp

cct-image

×
