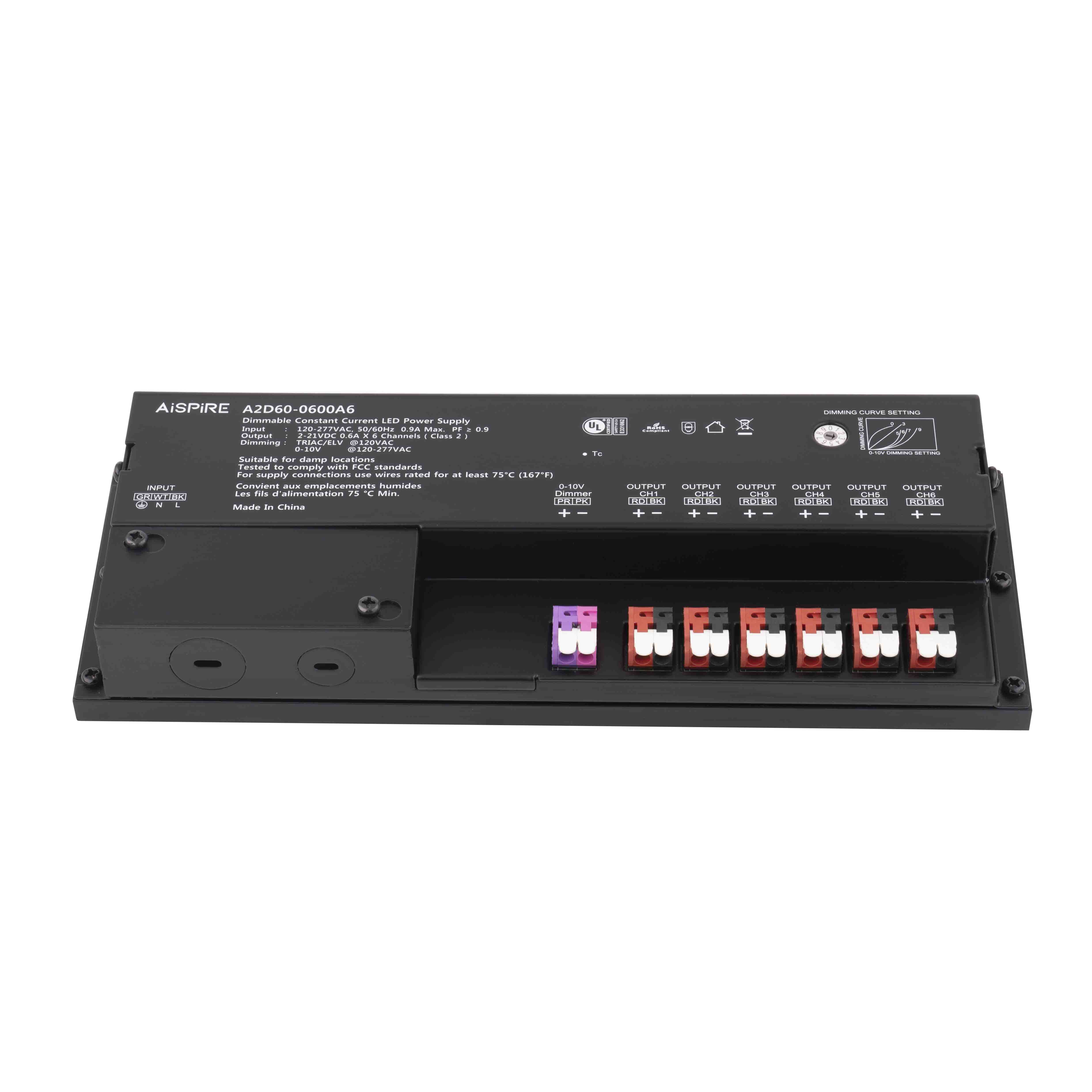

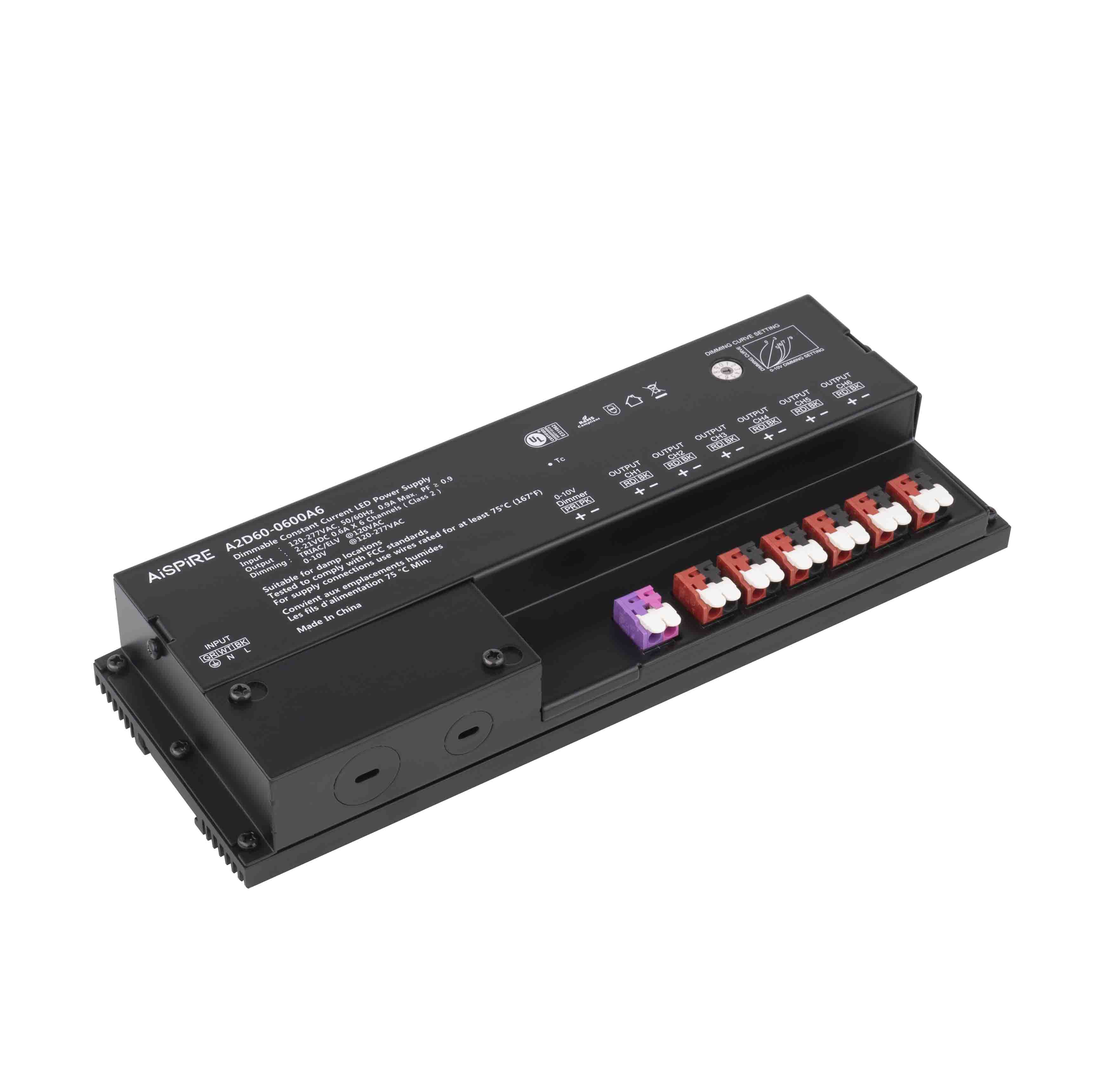

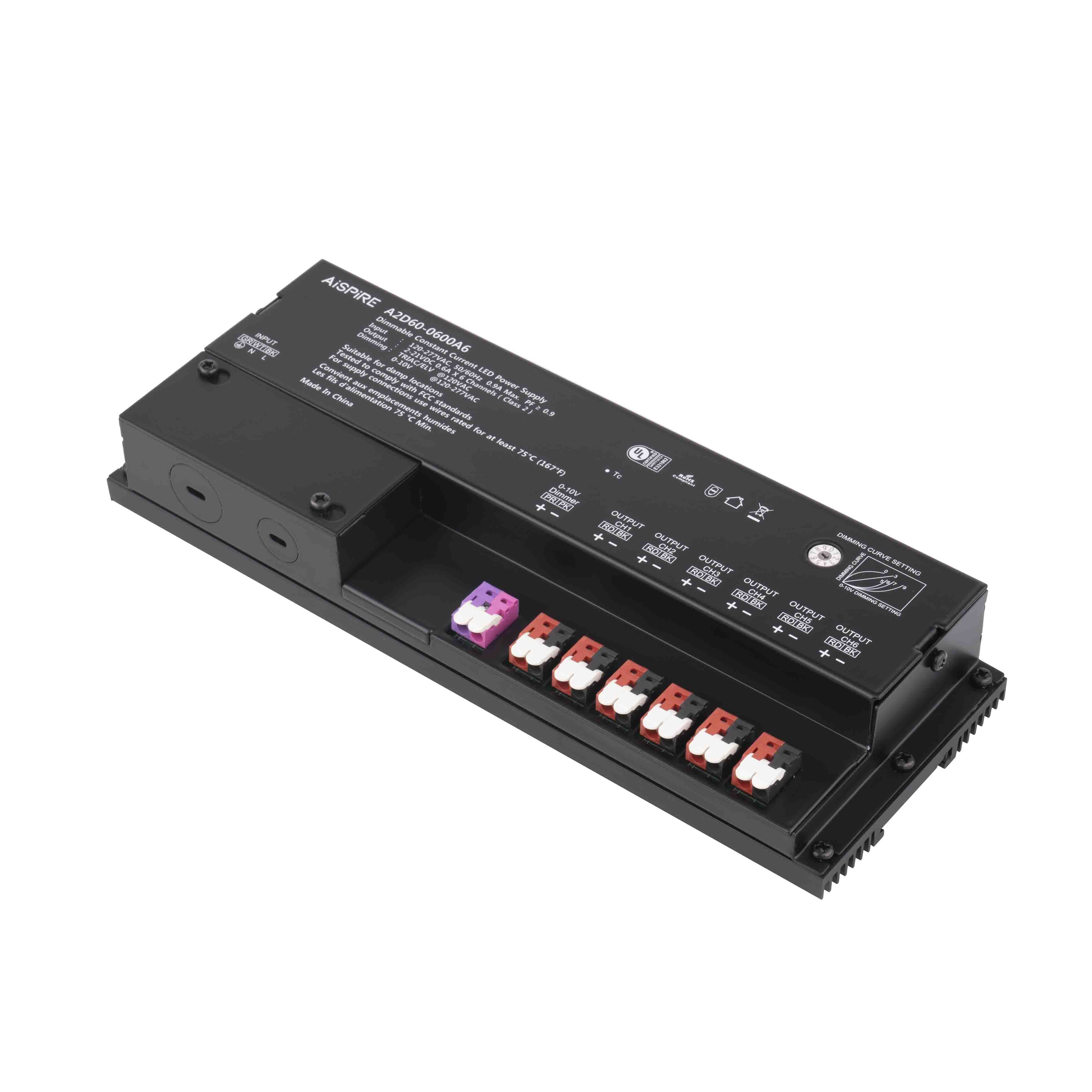

Remote Power Supply 6 CHs ~ 600mA, 2-21 VDC, 75.6W

This class 2 UL & cUL listed enclosed electronics power supply is one of the most exciting LED power supplies available. What makes this dimmable LED power supply unique is that it has 6 output terminals with time saving terminate conductors from 24-12 AWG of solid, stranded and fine-stranded conductors by pull the lever up, insert a conductor and push the lever back down. It is compatibles with TRIAC/ELV phase cut or 0-10V dimmer. Additionally, it features different kinds of protection from over voltage to short circuit. It is incredibly robust and includes a 5 years warranty. It works with an input voltage of 120-277VAC so you can utilize it for many commercial applications. It features an integrated wiring compartment for a streamlined installation.

  • Universal Input 120-277VAC
  • Build in active PFC, power factor > 0.95
  • Overload and short circuit protection
  • TRIAC/ ELV/0-10V Dimming Control
  • 0-10V Dimming curve adjustment
  • Class 2 Output
thumbnail-image
thumbnail-image
thumbnail-image
thumbnail-image
product-slide
product-slide
product-slide
product-slide

Specifications

Order Number: A2D60-0600A6
model & product l x w x h
A2D60-0600A6 - 6 CHs ~ 600mA, 2-21 VDC, 75.6W Remote Power Supply
10.875 X 3.875" X 1.25"

Components

Accessories

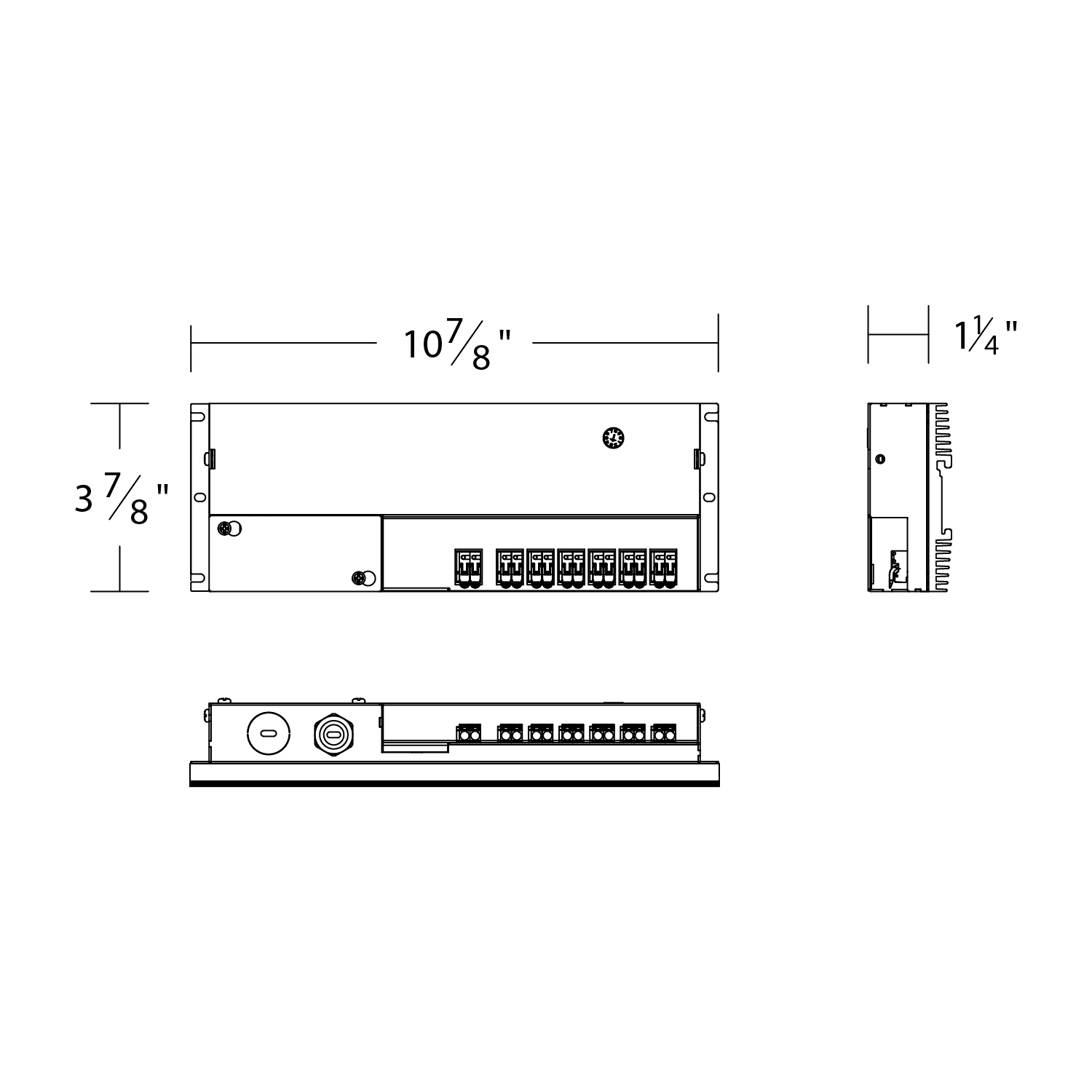

LINE DRAWING

line-drawing
  • FEATURES
  • CERTIFICATIONS
  • Universal Input 120-277VAC
  • Build in active PFC, power factor > 0.95
  • Overload and short circuit protection
  • TRIAC/ ELV/0-10V Dimming Control
  • 0-10V Dimming curve adjustment
  • Class 2 Output
No image for ziprat:IP20
ul, culdamp
