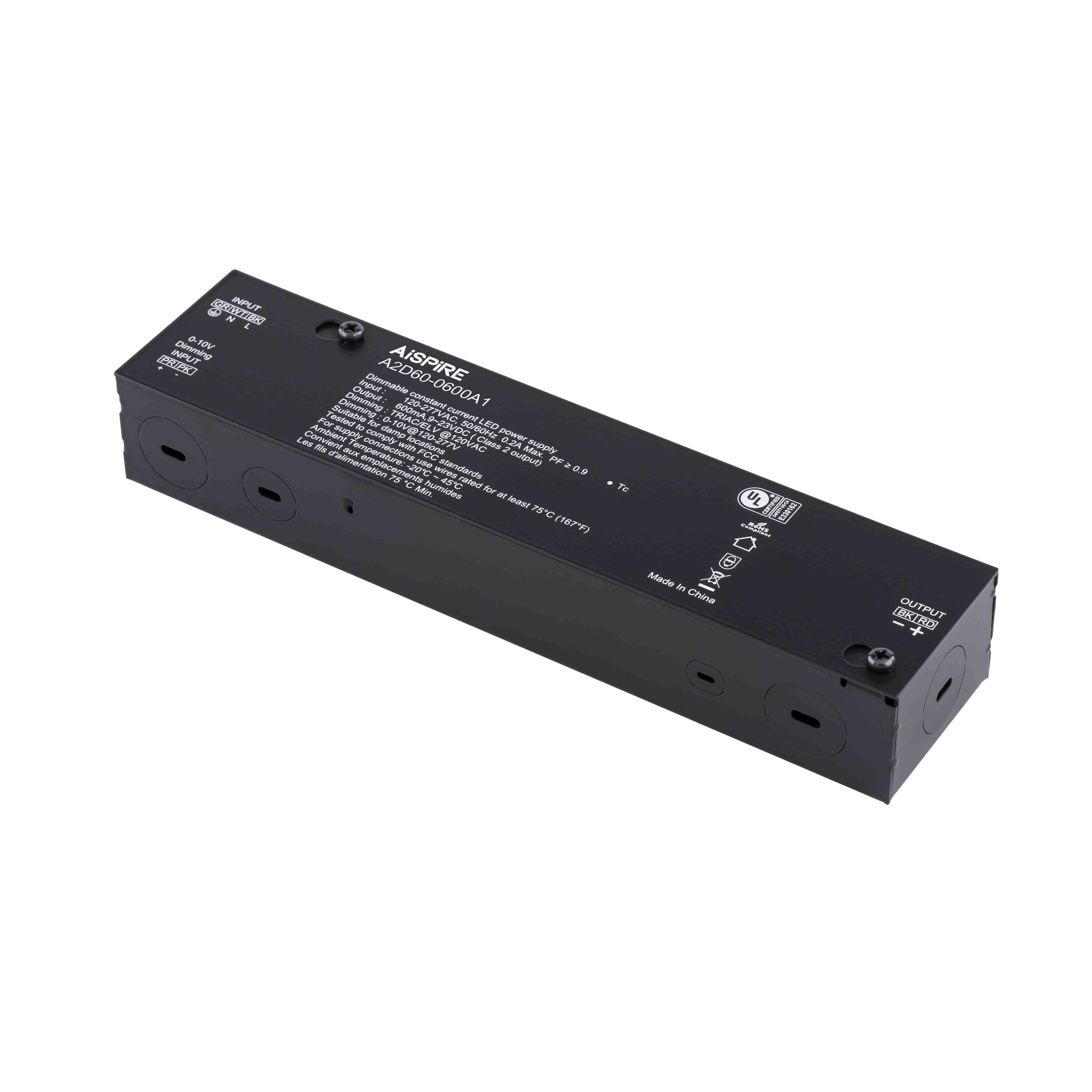

Remote Power Supply 1 CH ~ 600mA, 9-23VDC, 13.8W

This class 2, UL & cUL listed enclosed electronic power supply is the perfect solution for wiring low voltage fixtures. Class 2 power supply is intrinsically safer because It is considered safety from a fire initiation standpoint and provides acceptable protection from electric shock. Enclosure cover is easy to remove. Power supply has knockouts for line voltage wiring. Secondary wiring for class 2 power supply do not require conduit sheathed cable or clamp wiring techniques. May be dimmed using a Phase cut (TRIAC/ELV) or 0-10V dimmer.

  • Universal Input 120-277VAC
  • Build in active PFC, power factor > 0.95
  • Overload and short circuit protection
  • TRIAC/ ELV/0-10V Dimming Control
  • Class 2 Output
thumbnail-image
product-slide

Specifications

Order Number: A2D60-0600A1
model & product l x w x h
A2D60-0600A1 - 1 CH ~ 600mA, 9-23VDC, 13.8W Remote Power Supply
8.875" X 2" X 1.5"

Components

Accessories


DMX TO ELV DIMMING CONTROLLER

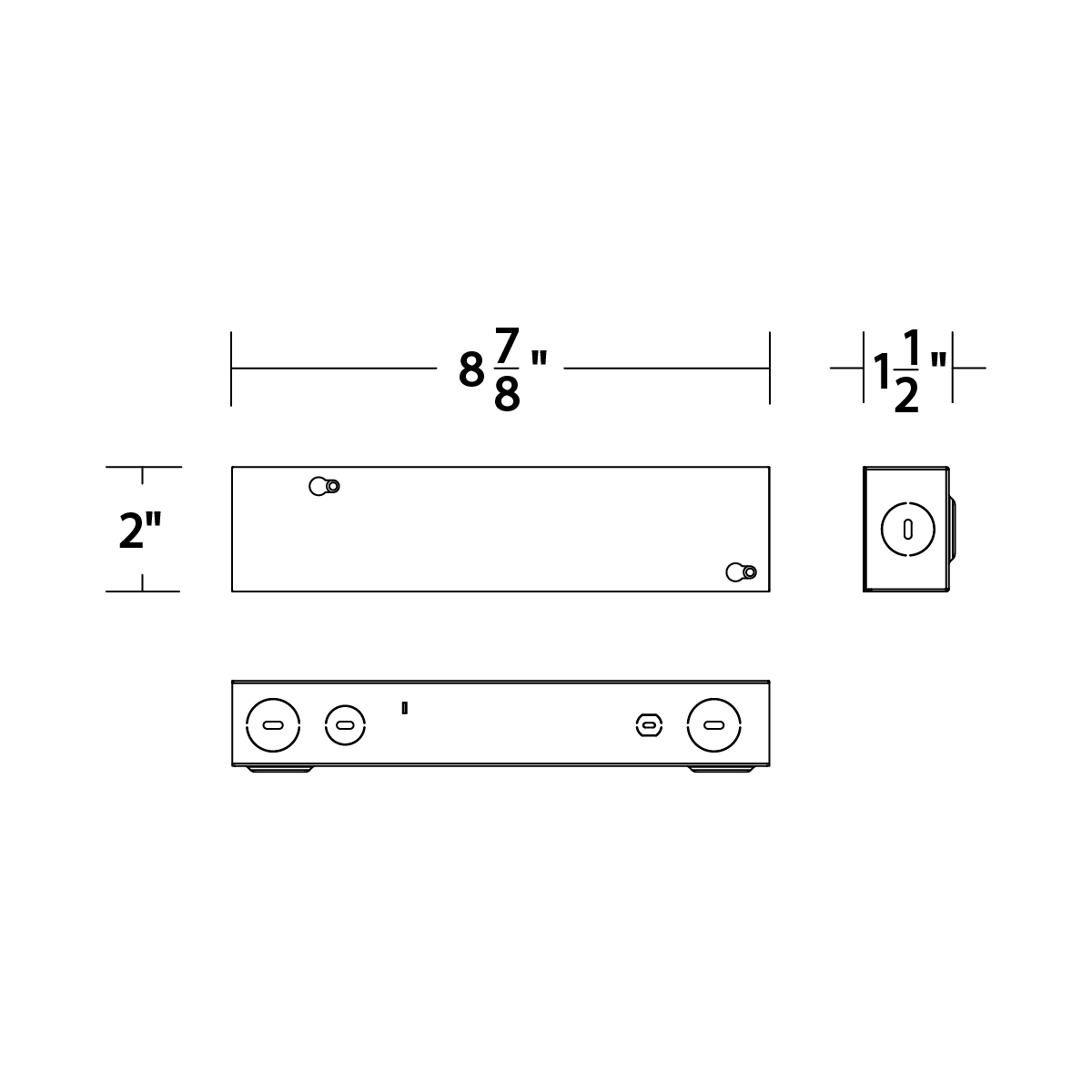

LINE DRAWING

line-drawing
  • FEATURES
  • CERTIFICATIONS
  • Universal Input 120-277VAC
  • Build in active PFC, power factor > 0.95
  • Overload and short circuit protection
  • TRIAC/ ELV/0-10V Dimming Control
  • Class 2 Output
No image for ziprat:IP20
ul, culdamp
×
