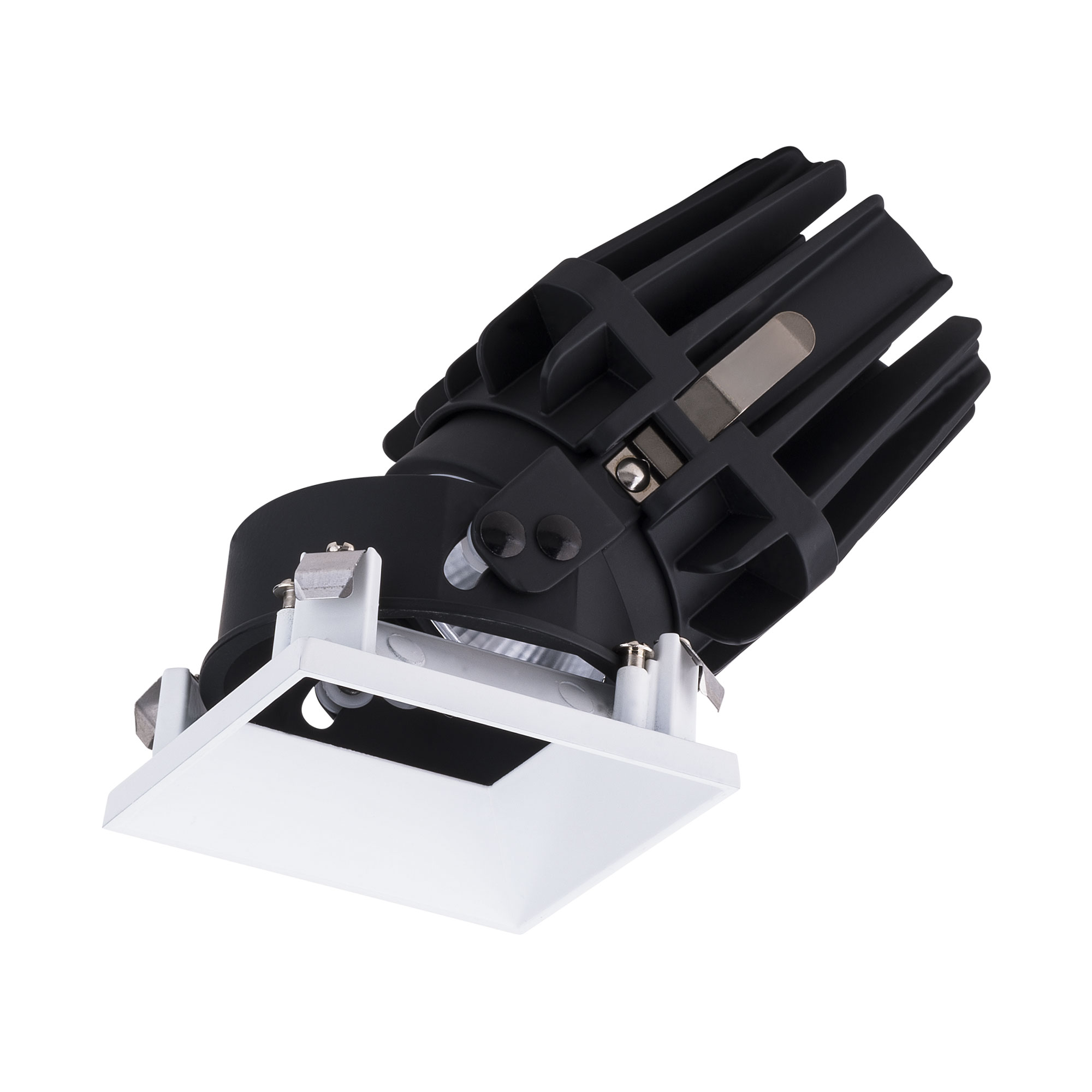

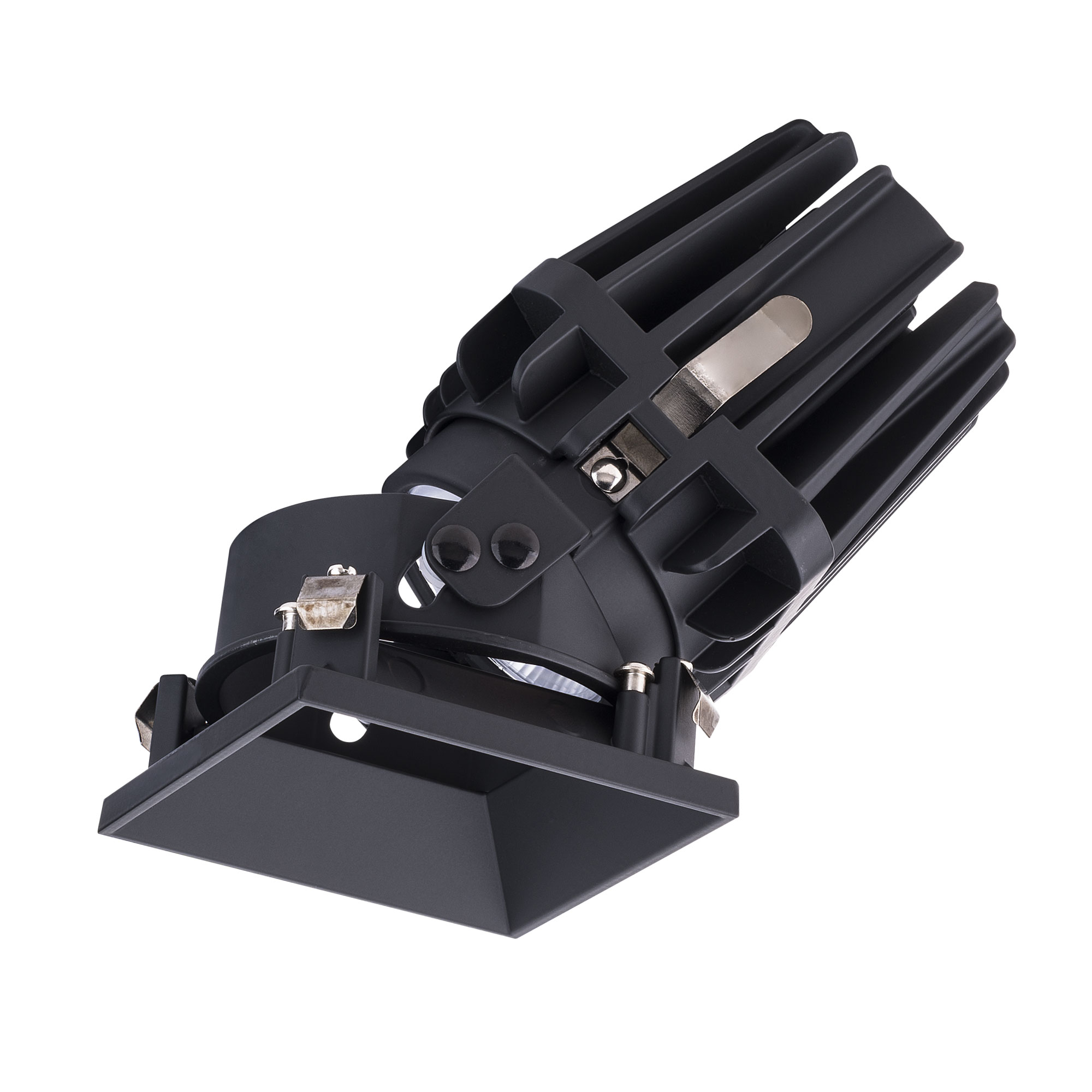

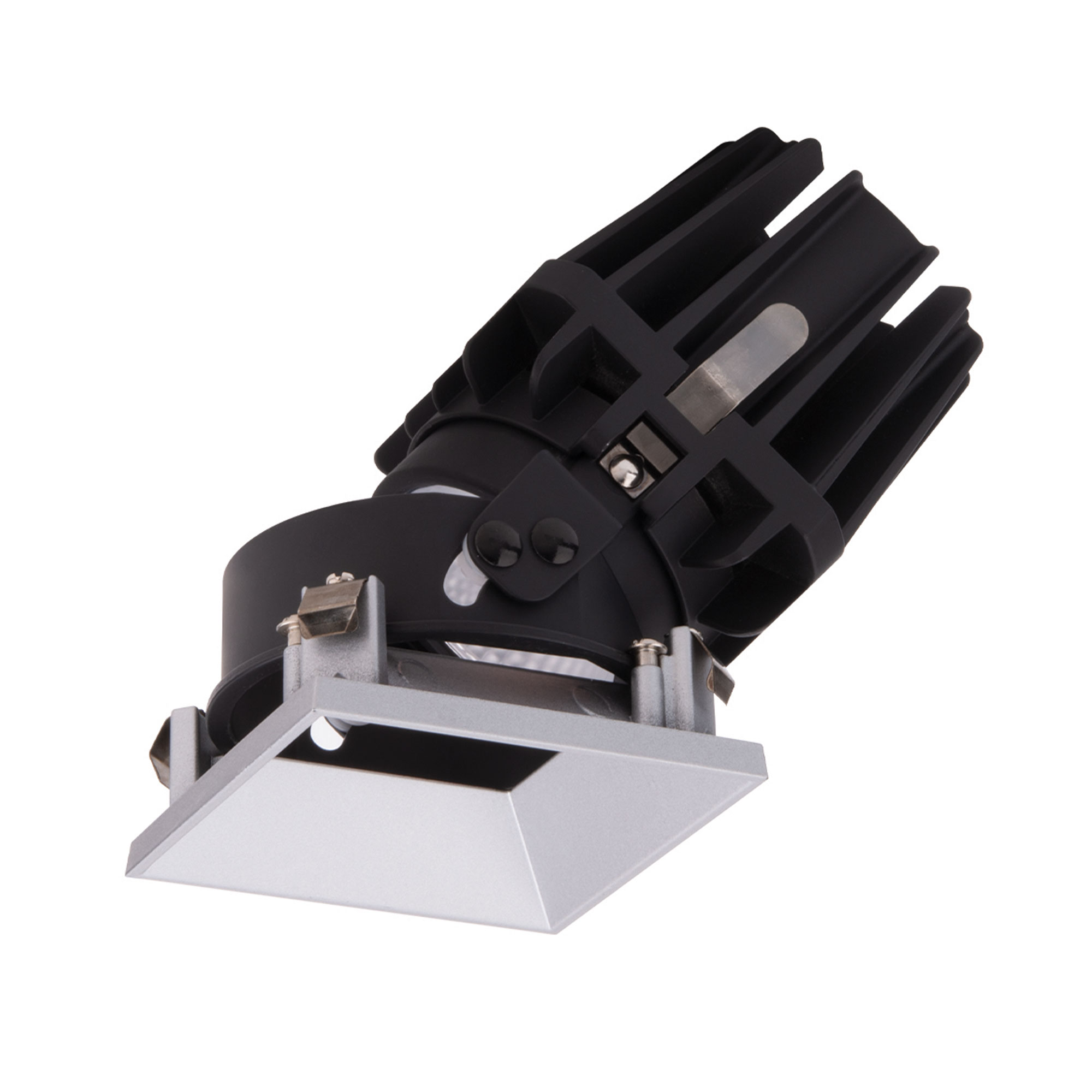

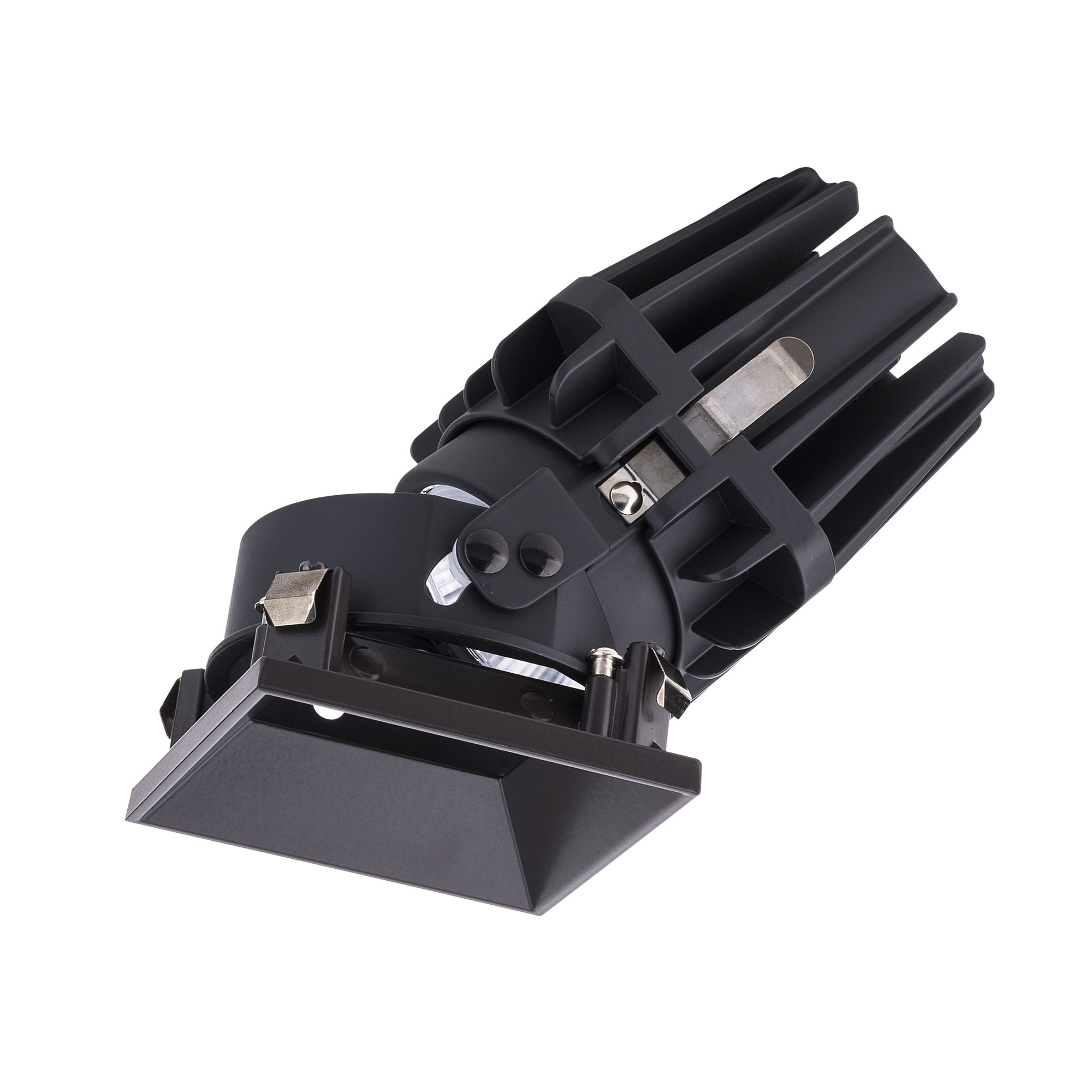

QUARTUS ALPINE 4IN ADJUSTABLE TRIMLESS SQUARE

The QUARTUS ALPINE Recessed series offers high performance white lighting that provide outputs up to 2,400 lumens on 4” styles. The series features superlative glare control with 30° shielding, 45° vertical tilting with 360° horizontal rotation, and uniform floor-to-ceiling wall washing. A full line of round and square, trimmed and trimless luminaires deliver versatile lighting solutions for various applications. The recessed series includes easy replacement of both the light engine and driver.

  • Operating Temp: -4°F to 104°F (-20°C to 40°C)
  • Two-piece die-cast construction
  • Light engine mounted on trim with springs for easy replacement
  • 0-45° vertical tilting and 365° horizontal rotation
  • Center beam alignment retained throughout adjustment range
  • Field changeable beam angle with reflectors provided
  • Accepts one Lens or glare control accessory
  • Refer to specification sheet for lumens and CBCP data
thumbnail-image
thumbnail-image
thumbnail-image
thumbnail-image
thumbnail-image
product-slide
product-slide
product-slide
product-slide
product-slide

Specifications

Order Number: A1RT-A57M-27BK
model color temp & cri max lumens max cbcp finish
A1RT-A57M
27 - 2700K - 90
30 - 3000K - 90
1595
5110
BK - Black
DB - Dark Bronze
HZ - Haze
WT - White

Components

Accessories

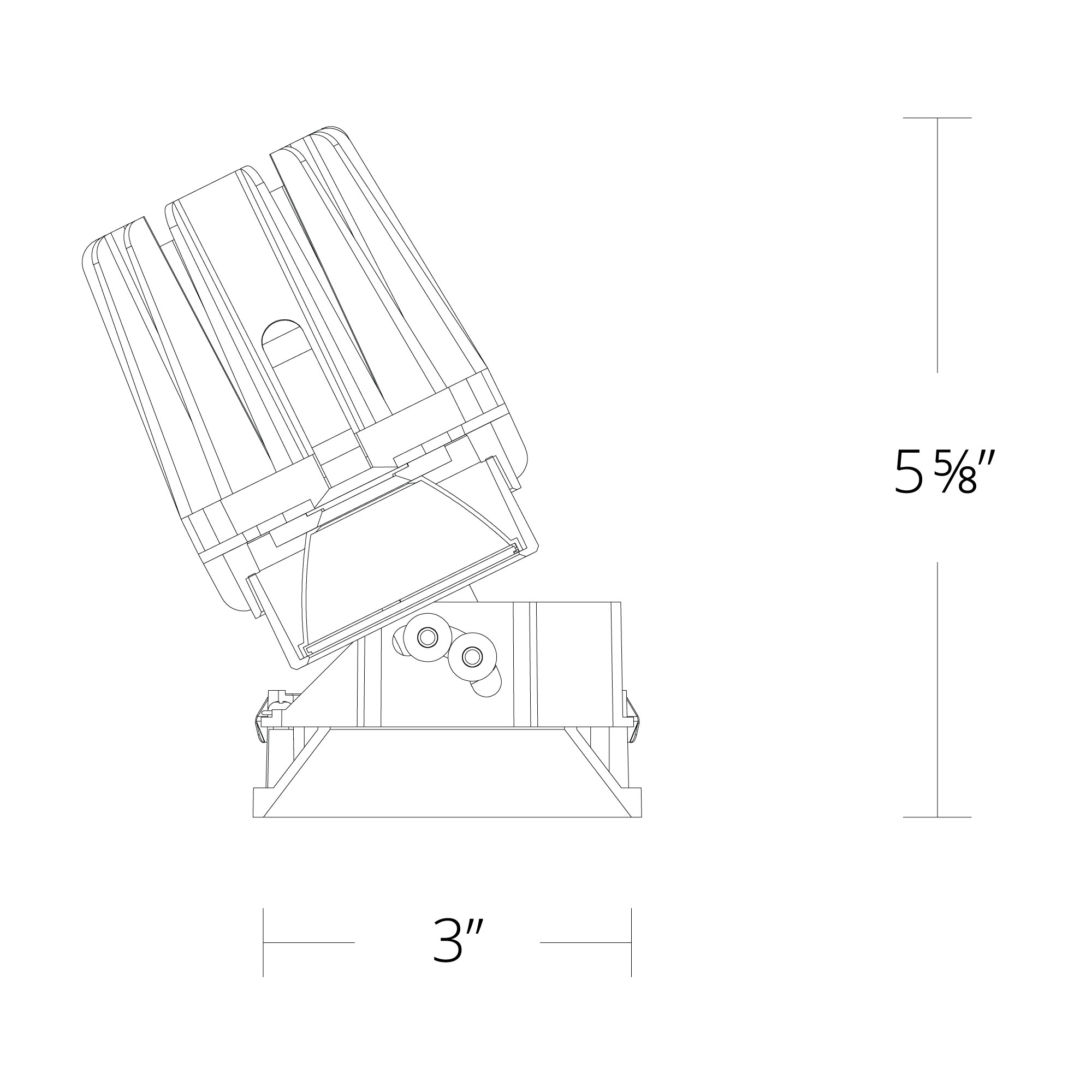

LINE DRAWING

line-drawing
  • FEATURES
  • CERTIFICATIONS
  • CCT
  • Operating Temp: -4°F to 104°F (-20°C to 40°C)
  • Two-piece die-cast construction
  • Light engine mounted on trim with springs for easy replacement
  • 0-45° vertical tilting and 365° horizontal rotation
  • Center beam alignment retained throughout adjustment range
  • Field changeable beam angle with reflectors provided
  • Accepts one Lens or glare control accessory
  • Refer to specification sheet for lumens and CBCP data
yesetl, cetldamp

cct-image
