QUARTUS ALPINE 4IN NEW CONST HOUSING TRIMMED, ROUND / SQUARE

Set your mood or choose crisp white light with Alpine Recessed luminaires, featuring reliable performance that is delivered with up to 2495 lumens in a 4” aperture. Field-changeable beam optics with high efficiency reflectors are included to accommodate nearly any specification. Housings feature built-in ELV, TRIAC, and 0-10V dimming capabilities.

  • One size housing for all round and square trim types for simplicity and versatility
  • Uniformed ceiling cutout size for DL, ADJ, WW in Round or Square, Trim or Trimless
  • Quick connectors installed on driver for easy driver replacement
thumbnail-image
product-slide

Specifications

Order Number: A1RT-1664
model & description
A1RT-2661 - QUARTUS ALPINE 4" New Construction Housing 13W IC
A1RT-2662 - QUARTUS ALPINE 4" New Construction Housing 19W IC
A1RT-2663 - QUARTUS ALPINE 4" New Construction Housing 25W IC
A1RT-1664 - QUARTUS ALPINE 4" New Construction Housing 28W Non-IC

Components


QUARTUS ALPINE 4IN


QUARTUS ALPINE 4IN


QUARTUS ALPINE 4IN


QUARTUS ALPINE 4IN


QUARTUS ALPINE 4IN


QUARTUS ALPINE 4IN

Accessories


DMX TO ELV DIMMING CONTROLLER

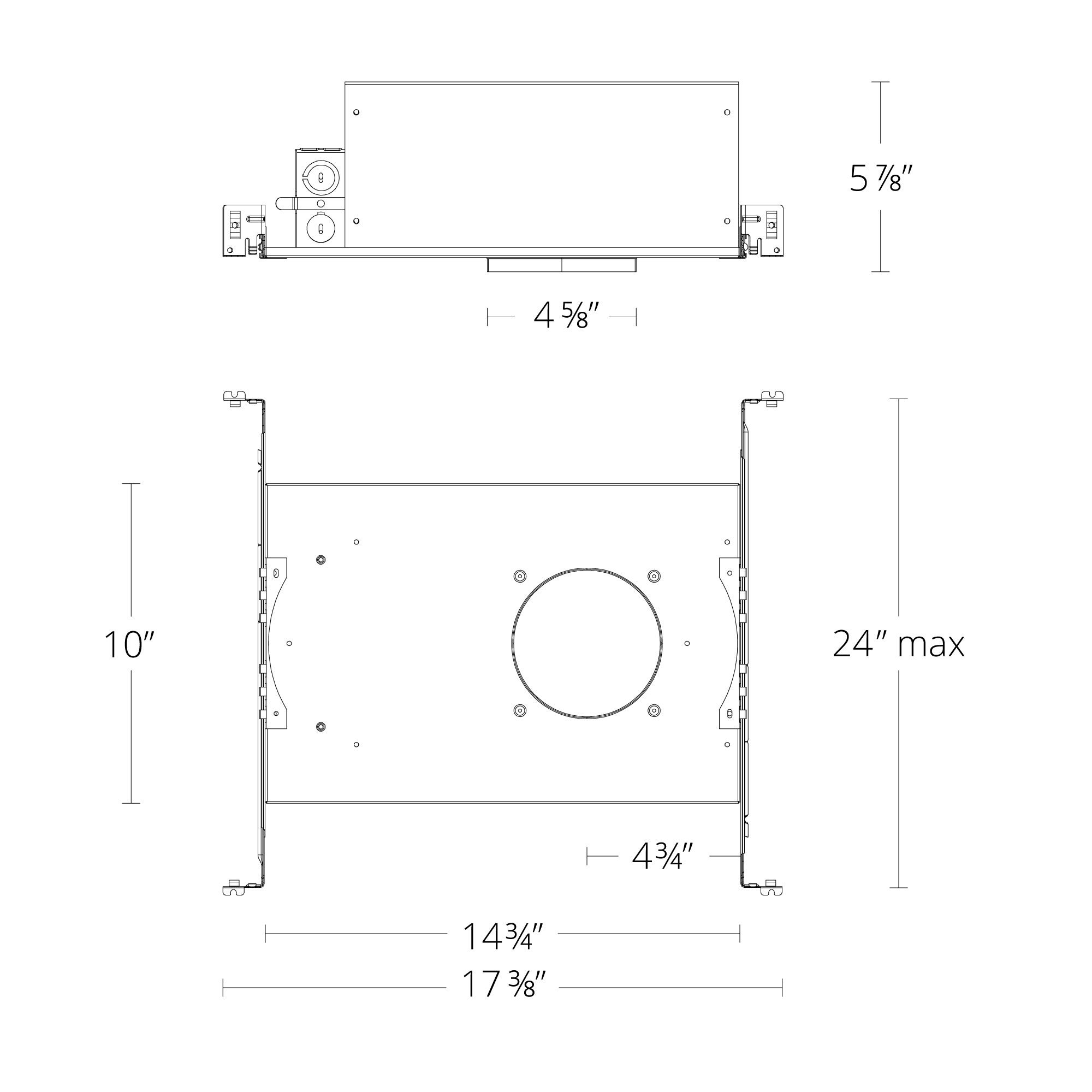

LINE DRAWING

line-drawing
  • FEATURES
  • CERTIFICATIONS
  • One size housing for all round and square trim types for simplicity and versatility
  • Uniformed ceiling cutout size for DL, ADJ, WW in Round or Square, Trim or Trimless
  • Quick connectors installed on driver for easy driver replacement
etl, cetl
×
